Description

Price

120

BOLT-SOCKET,6X20

120R0620

$3.92

120A

BOLT-SOCKET

120Z0812

Unavailable

120B

BOLT-SOCKET

120Z0814

$3.57

132

BOLT-FLANGED-SMALL

132Y0816

$4.35

223

SCREW-PAN-WS-CROS

223C0610

$4.12

411

WASHER PLAIN

411F0600

$1.18

461

WASHER-SPRING,6MM

461S0600

$1.07

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$32.66

11060

GASKET,EXHAUST PIPE

11060-1119

$9.58

18018

PLATE-HEAT GUARD

18018-1106

Unavailable

18018A

PLATE-HEAT GUARD

18018-1111

Unavailable

18049

PIPE-EXHAUST

18049-1664

Unavailable

92015

NUT

92015-1983

$11.93

92037

CLAMP,EXHAUST PIPE COVER

92037-1613

$14.64

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

92170

CLAMP

92170-1590

$26.57

92170A

CLAMP

92170-1591

$35.04

18090

BODY-COMP-MUFFLER

18090-1300

Unavailable

18090A

BODY-COMP-MUFFLER

18090-1305

Unavailable

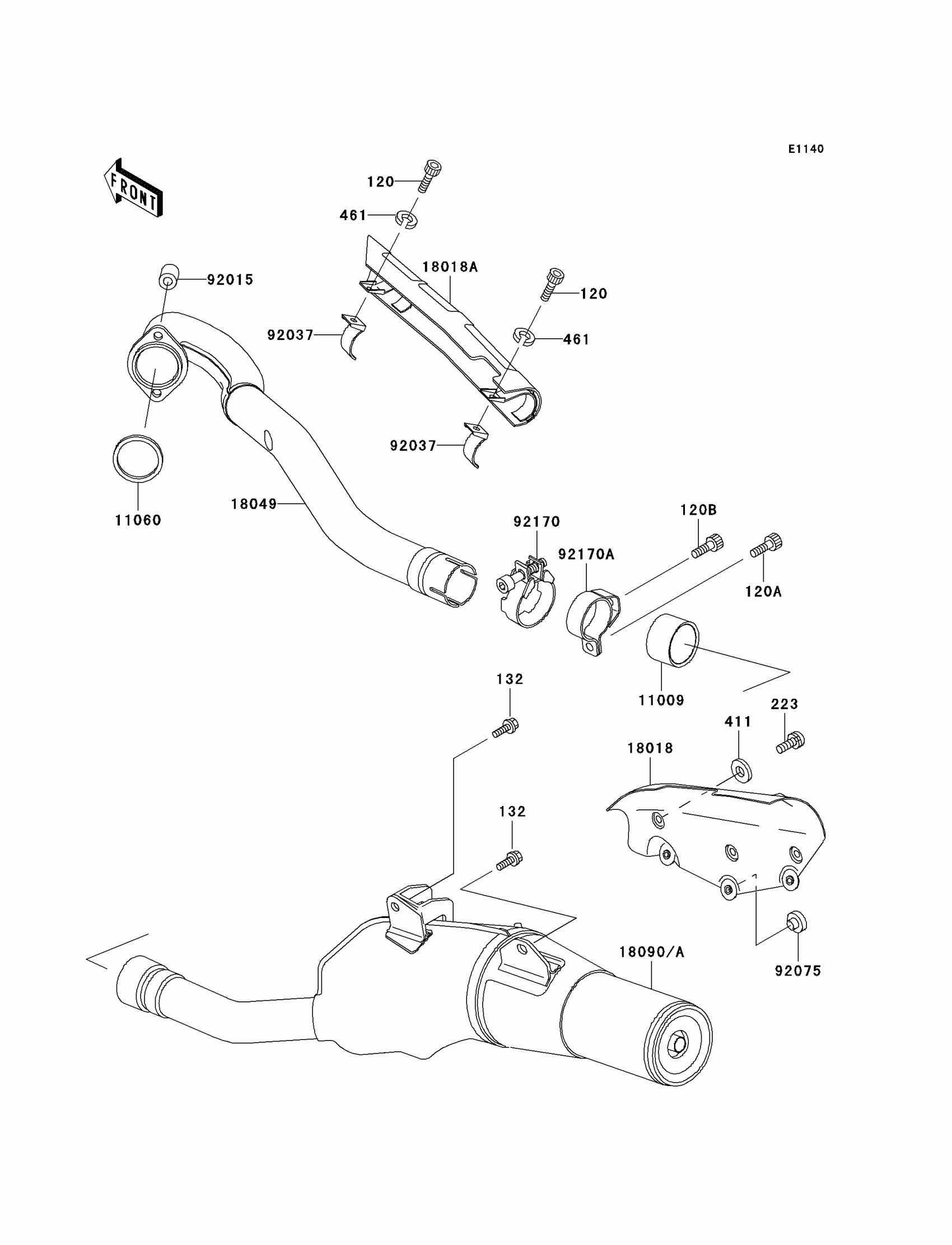

Kawasaki KLX650 Muffler(s) Diagram

BOLT-SOCKET,6X20

BOLT-SOCKET

BOLT-SOCKET

BOLT-FLANGED-SMALL

SCREW-PAN-WS-CROS

WASHER PLAIN

WASHER-SPRING,6MM

GASKET,EXHAUST PIPE CONNECTING

GASKET,EXHAUST PIPE

PLATE-HEAT GUARD

PLATE-HEAT GUARD

PIPE-EXHAUST

NUT

CLAMP,EXHAUST PIPE COVER

DAMPER RUBB MAIN STND

CLAMP

CLAMP

BODY-COMP-MUFFLER

BODY-COMP-MUFFLER
