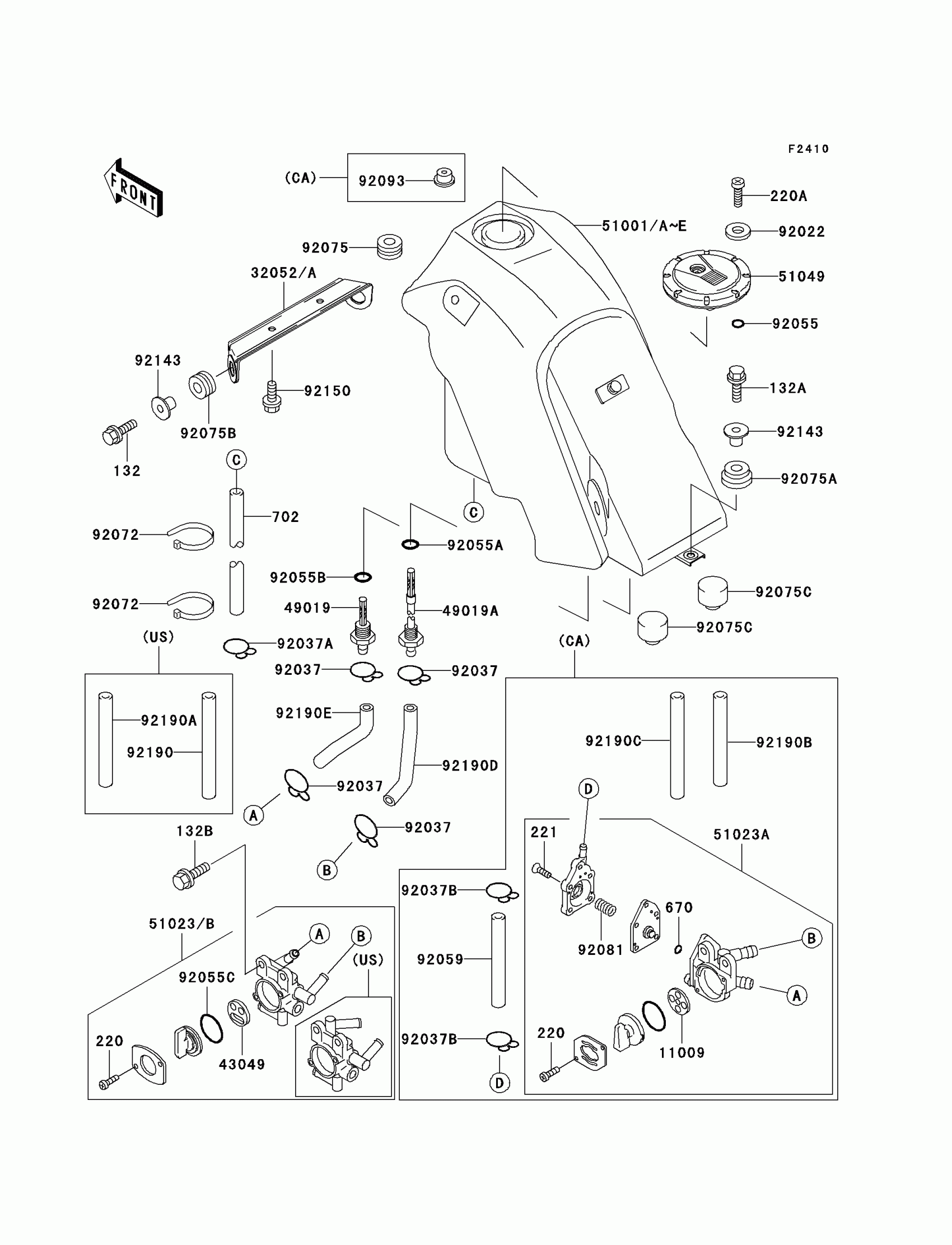

Kawasaki KLX650 Fuel Tank Diagram
#
32052A
BRACKET-TANK,FR,VIOLET
32052-1366-TY
Unavailable
49019
FILTER-FUEL,RES
49019-1057
$14.34
49019A
FILTER-FUEL,"ON"
49019-1058
$19.13
51049
CAP-TANK,FUEL
51049-1077
$108.49
92022
WASHER,5.1X10X1.0
92022-1977
$3.65
92037
CLAMP,TUBE
92037-147
$7.34
92055
RING-O
92055-1023
$3.92
92055A
RING-O,ID=9.5
92055-1386
$3.92
92055B
RING-O,11.5X1.5
92055-1387
$3.92
132
BOLT-FLANGED-SMALL
132G0620
$2.33
132A
BOLT-FLANGED-SMALL
132G0625
Unavailable
132B
BOLT-FLANGED-SMALL,6X8
132J0608
$3.41
220
SCREW-PAN-CROS,3X8
220B0308
$0.59
220A
SCREW-PAN-CROS,5X10
220D0510
Unavailable
92075
DAMPER RUBB MAIN STND
92075-005
$4.31
92075A
DAMPER RUBBER
92075-112
$4.31
92075B
DAMPER,RUBBER
92075-1123
$5.00
92075C
DAMPER
92075-1876
$10.37
92143
COLLAR
92143-1353
$8.58
92150
BOLT,6X12
92150-1435
$4.31
11009
GASKET,TAP VALVE
11009-1188
$5.74
43049
PACKING,TAP VALVE
43049-1066
$7.26
51001B
TANK-COMP-FUEL,S.RED
51001-1453-H1
Unavailable
51001D
TANK-COMP-FUEL,S.RED
51001-1455-H1
Unavailable
51023A
TAP-ASSY,FUEL
51023-1208
Unavailable
51023B
TAP-ASSY,FUEL
51023-1210
Unavailable
92037A
CLAMP
92037-1610
$2.00
92037B
CLAMP
92037-1712
$5.00
92055C
RING-O,TAP LEVER
92055-1419
$5.00
221
SCREW-CSK-CROS,4X14
221B0414
$3.41
670
O RING,4MM
670B1504
$4.11
702
TUBE-RUBBER,5X8X620
702A05620
$29.14
92059
TUBE,4X9X80
92059-1365
$13.61
92072
BAND,L=140
92072-1293
$7.11
92081
SPRING,TAP DIAPHRAGM
92081-1240
$3.89
92093
SEAL,FUEL TANK CAP
92093-1030
$7.77
92190B
TUBE,"ON",5.6X11.1X92
92190-1479
Unavailable
92190C
TUBE,"RES",5.6X11.1X100
92190-1480
Unavailable
92190D
TUBE
92190-1496
Unavailable
92190E
TUBE
92190-1497
Unavailable
