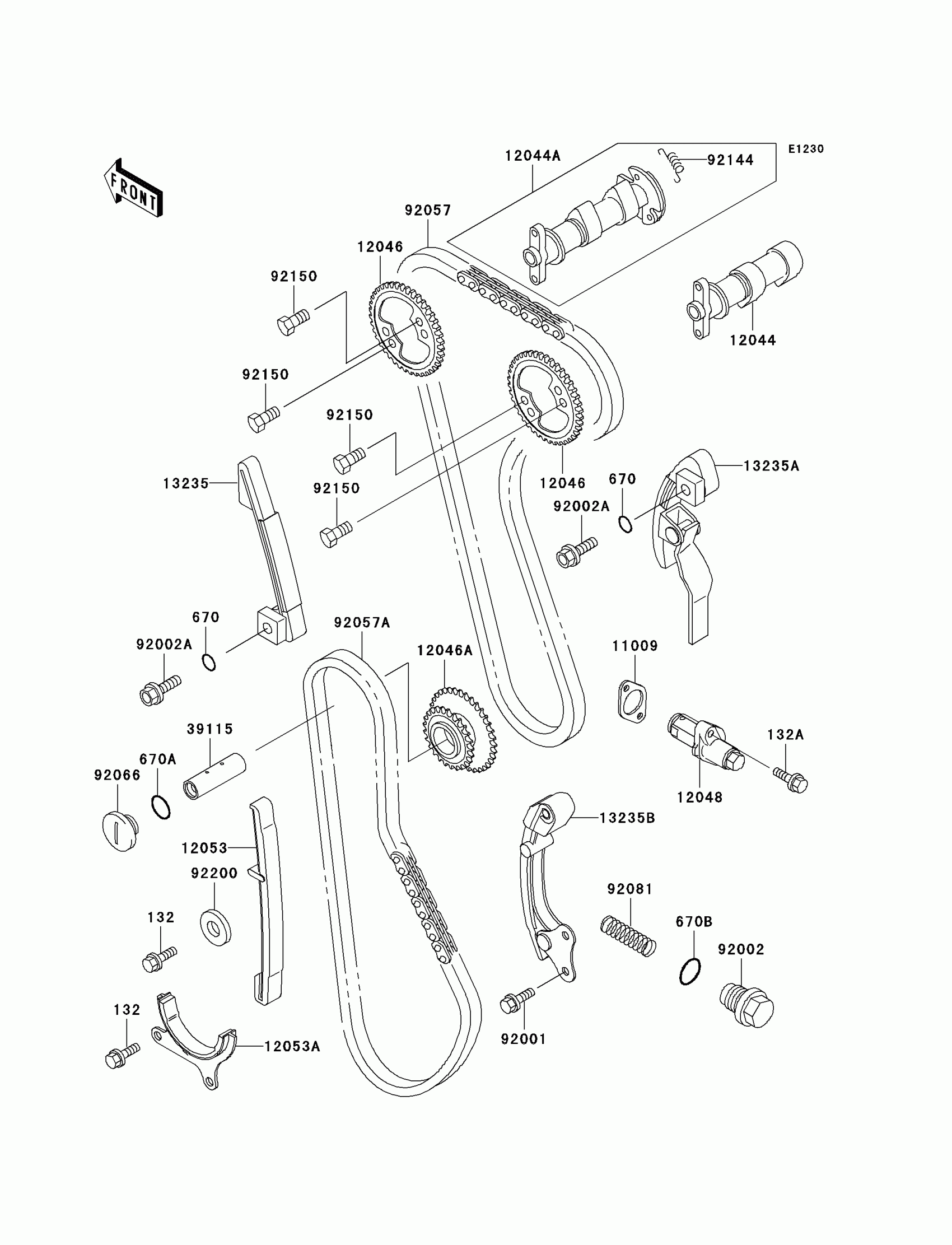

Kawasaki KLX650 Camshaft(s)/Tensioner Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL
132G0614
$1.42
132A
BOLT-FLANGED-SMALL,6X25
132Y0625
$5.02
670
O RING,11MM
670B2011
$1.28
670A
O RING,16MM
670B2016
$1.36
670B
O RING,18MM
670B2018
$1.42
11009
GASKET,TENSIONER
11009-1858
$4.61
12044
CAMSHAFT-VALVE,INTAKE
12044-1305
Unavailable
12044A
CAMSHAFT-VALVE,EXHAUST
12044-1347
Unavailable
12046
SPROCKET,CAMSHAFT
12046-1137
$74.26
12046A
SPROCKET,CAMCHAIN IDLER
12046-1139
$91.50
12048
TENSIONER-ASSY
12048-1139
$156.65
12053
GUIDE-CHAIN,FR,LWR
12053-1306
$48.83
12053A
GUIDE-CHAIN
12053-1329
$38.17
13235
GUIDE-COMP,FR,UPP
13235-1064
$99.29
13235A
GUIDE-COMP,RR,UPP
13235-1065
$162.90
13235B
GUIDE-COMP,RR,LWR
13235-1066
Unavailable
39115
SHAFT-IDLER,SPROCKET
39115-1074
$30.67
92001
BOLT,6X16
92001-1457
$5.00
92002
BOLT,TENSIONER
92002-1621
$26.05
92002A
BOLT
92002-1732
$17.56
92057
CHAIN,UPP,88RH2015,94L
92057-1361
$68.55
92057A
CHAIN,LWR,88RH2010,82L
92057-1362
$55.61
92066
PLUG,IDLER
92066-1409
$32.10
92081
SPRING,TENSIONER
92081-1380
$8.14
92144
SPRING,DECOMPRESSOR
92144-1744
$5.90
92150
BOLT,FLANGED,6X11
92150-1725
$5.00
92200
WASHER,7X27X1.6
92200-1169
Unavailable
