Description

Price

12053

GUIDE-CHAIN

12053-0125

$65.67

12053A

GUIDE-CHAIN,HARDNESS UP

12053-0192

$86.29

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

13272

PLATE,CHAIN GUIDE

13272-1169

$36.95

33001

ARM-COMP-SWING

33001-0645

$941.13

33032

SHAFT-SWING ARM

33032-0012

$47.83

33040

ADJUSTER-CHAIN,RH

33040-0020

$14.62

33040A

ADJUSTER-CHAIN,LH

33040-0075

$15.21

42036

SLEEVE,SWING ARM,L=47.5

42036-0019

$28.42

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92046

BEARING-NEEDLE,TA2230Z

92046-1174

$36.90

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

$19.12

92093

SEAL,SDO29X35X4.5

92093-1434

$9.11

92093A

SEAL,SDO22X29X5

92093-1435

$8.79

92143

COLLAR

92143-1676

$6.22

92152

COLLAR,17.1X29X6

92152-0292

$10.30

92153

BOLT,8X56

92153-0620

$3.73

92154

BOLT,FLANGED,6X42

92154-0511

$1.94

92172

SCREW,5X8

92172-0119

$2.12

92200

WASHER,17.2X30X2.3

92200-0285

$3.90

92210

NUT,LOCK,16MM

92210-0285

$20.37

92210A

NUT,FLANGED,6MM

92210-0630

$2.00

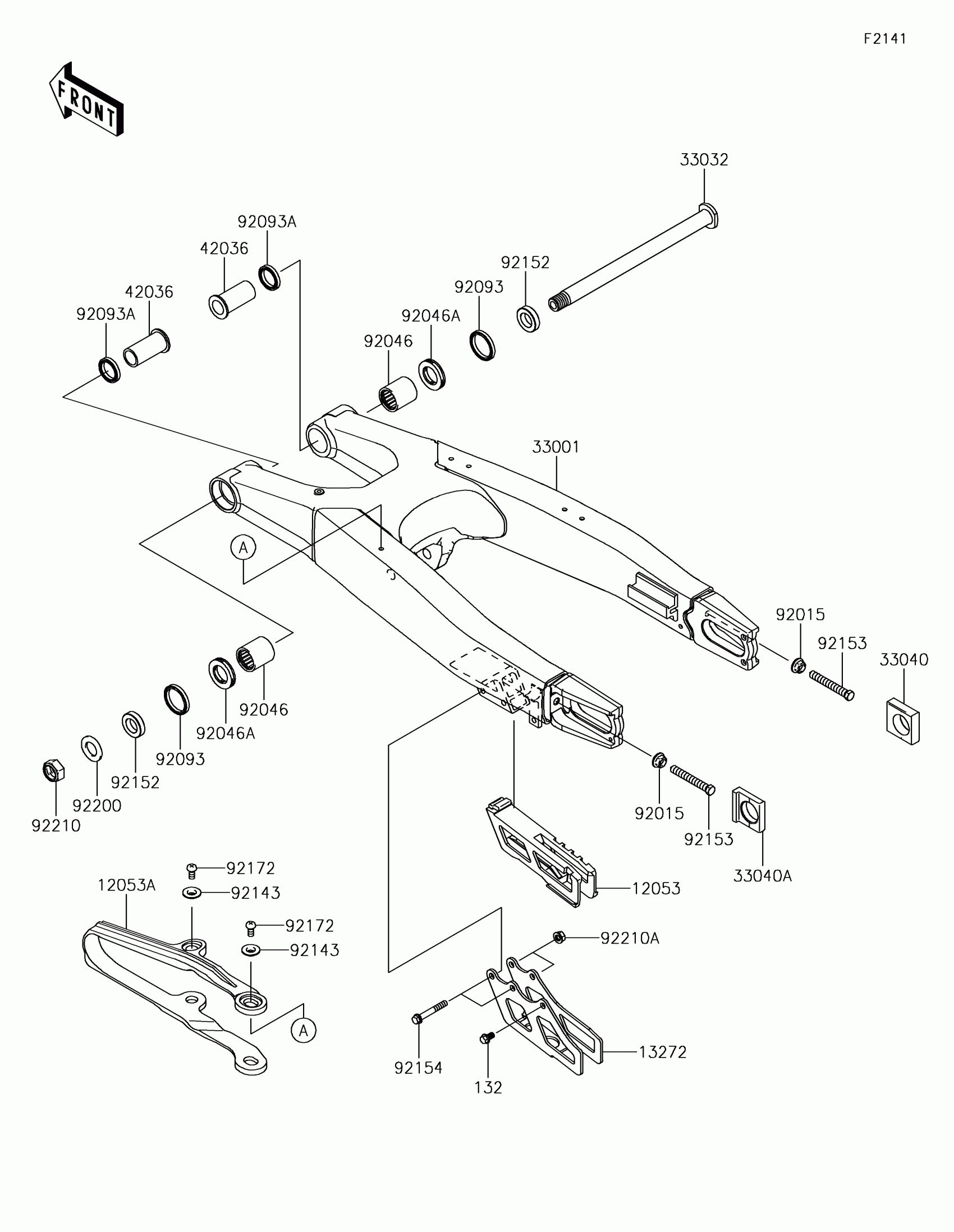

Kawasaki KLX450R Swingarm Diagram
