Description

Price

11012

CAP,AIR VALVE

11012-1552

$6.16

13070

GUIDE,SPRING

13070-0029

$22.46

13070A

GUIDE,SPRING

13070-1362

$33.67

13256

PISTON,SHOCKABSORBER

13256-0002

$110.41

43078

RESERVOIR,SHOCKABSORBER

43078-0031

$27.84

43089

CYLINDER-SHOCKABSORBER,GOLD

43089-0028-829

$677.23

45014

SHOCK,SPRING SIL+BODY GOLD

45014-0401-23D

$1,279.07

46102

ROD,SHOCKABSORBER

46102-0137

$540.98

92015

NUT,SPRING ADJUST

92015-1703

$40.51

92015A

NUT,SPRING ADJUST LOCK

92015-1704

$38.08

92033

RING-SNAP

92033-0044

$5.60

92033A

RING-SNAP

92033-1209

$9.20

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$19.53

92049

SEAL-OIL

92049-0100

$117.21

92055

RING-O,ROD

92055-1346

$10.28

92145

SPRING,SHOCK,K=50.0N/MM,SIL

92145-0015-8V

$223.20

92145A

SPRING,SHOCK,K=52N/MM,I.SILVER

92145-0016-8V

$223.20

92145B

SPRING,SHOCK,K=54N/MM,I.SILVER

92145-0244-8V

$222.43

92161

DAMPER,SHOCKABSORBER

92161-1172

$22.01

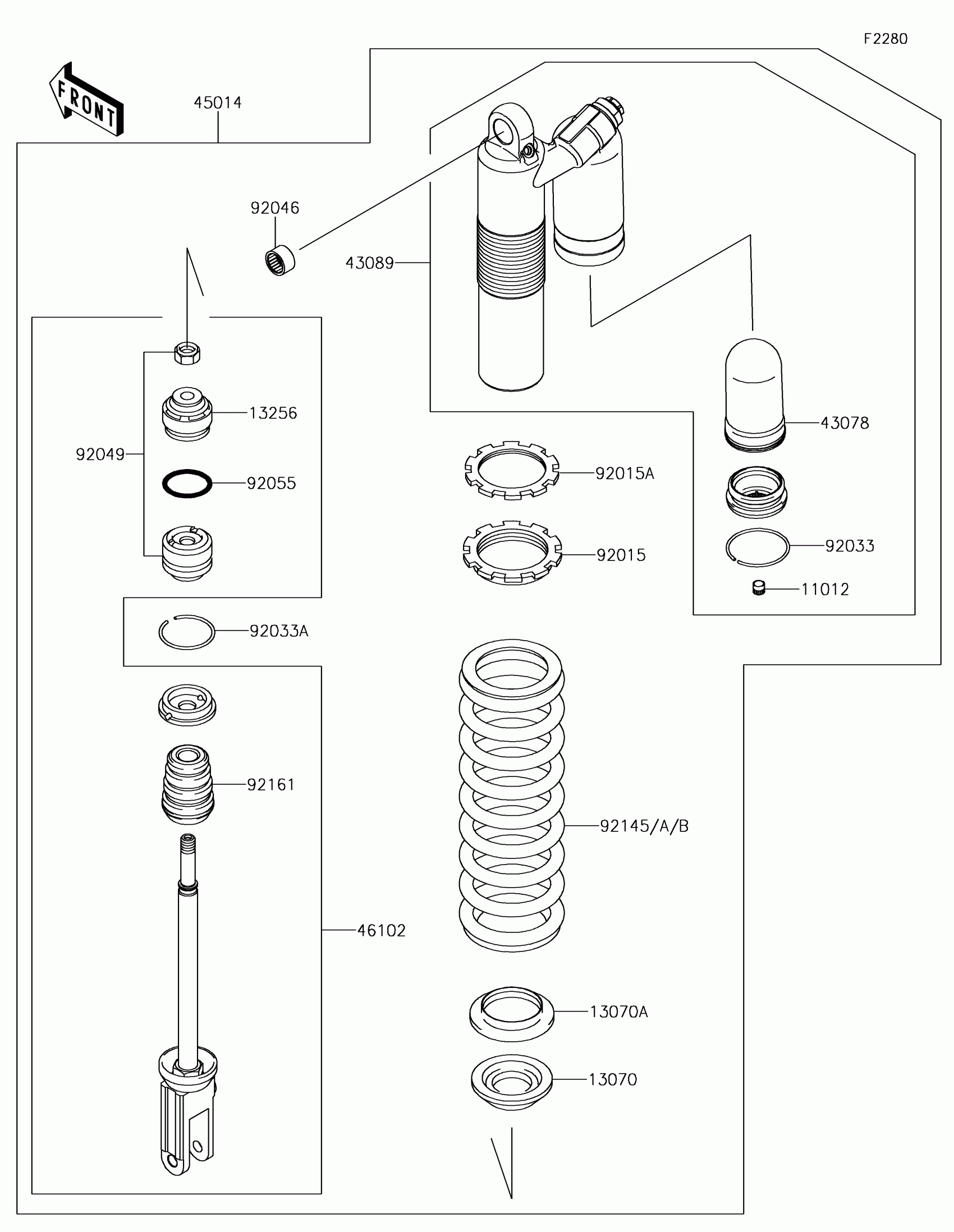

Kawasaki KLX450R Shock Absorber(s) Diagram

CAP,AIR VALVE

GUIDE,SPRING

GUIDE,SPRING

PISTON,SHOCKABSORBER

RESERVOIR,SHOCKABSORBER

CYLINDER-SHOCKABSORBER,GOLD

SHOCK,SPRING SIL+BODY GOLD

ROD,SHOCKABSORBER

NUT,SPRING ADJUST

NUT,SPRING ADJUST LOCK

RING-SNAP

RING-SNAP

BEARING-NEEDLE,7E-HVS16X22X12

SEAL-OIL

RING-O,ROD

SPRING,SHOCK,K=50.0N/MM,SIL

SPRING,SHOCK,K=52N/MM,I.SILVER

SPRING,SHOCK,K=54N/MM,I.SILVER

DAMPER,SHOCKABSORBER
