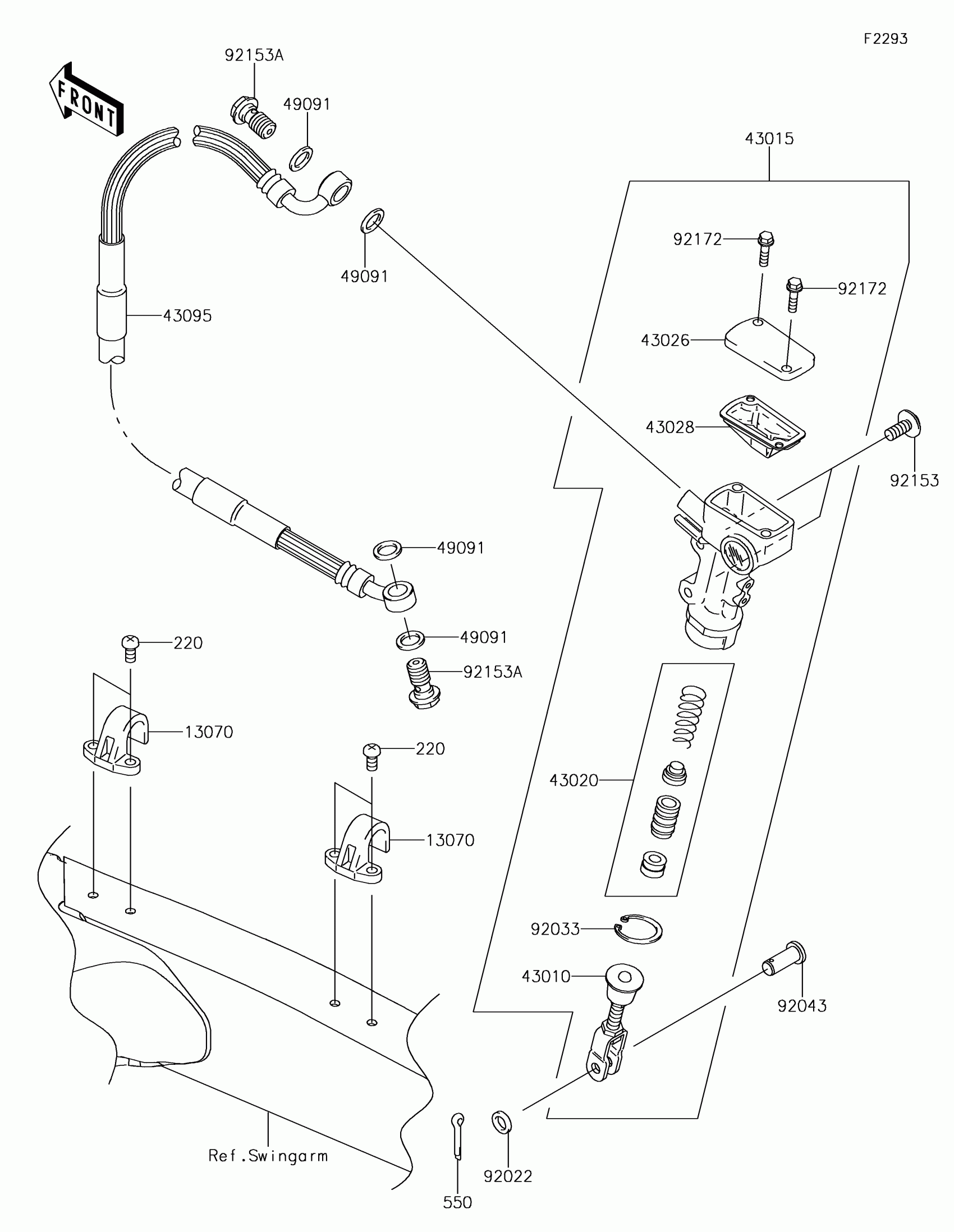

Kawasaki KLX450R Rear Master Cylinder Diagram

Description

Price

13070

GUIDE,BRAKE HOSE

13070-0048

$7.76

220

SCREW-PAN-CROS,5X10

220AA0510

$0.71

43010

ROD-ASSY-BRAKE

43010-1087

$54.90

43015

CYLINDER-ASSY-MASTER

43015-0168

$309.99

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-0023

$16.21

43028

DIAPHRAGM

43028-1092

$20.74

43095

HOSE-BRAKE,L=555

43095-0617

$67.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92022

WASHER,8.5X13X1

92022-1028

$3.92

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92043

92043-0004

$11.16

92153

BOLT,SOCKET,6X14

92153-1021

$2.67

92153A

BOLT,OIL,L=23

92153-1419

$3.90

92172

SCREW

92172-1064

$2.41
