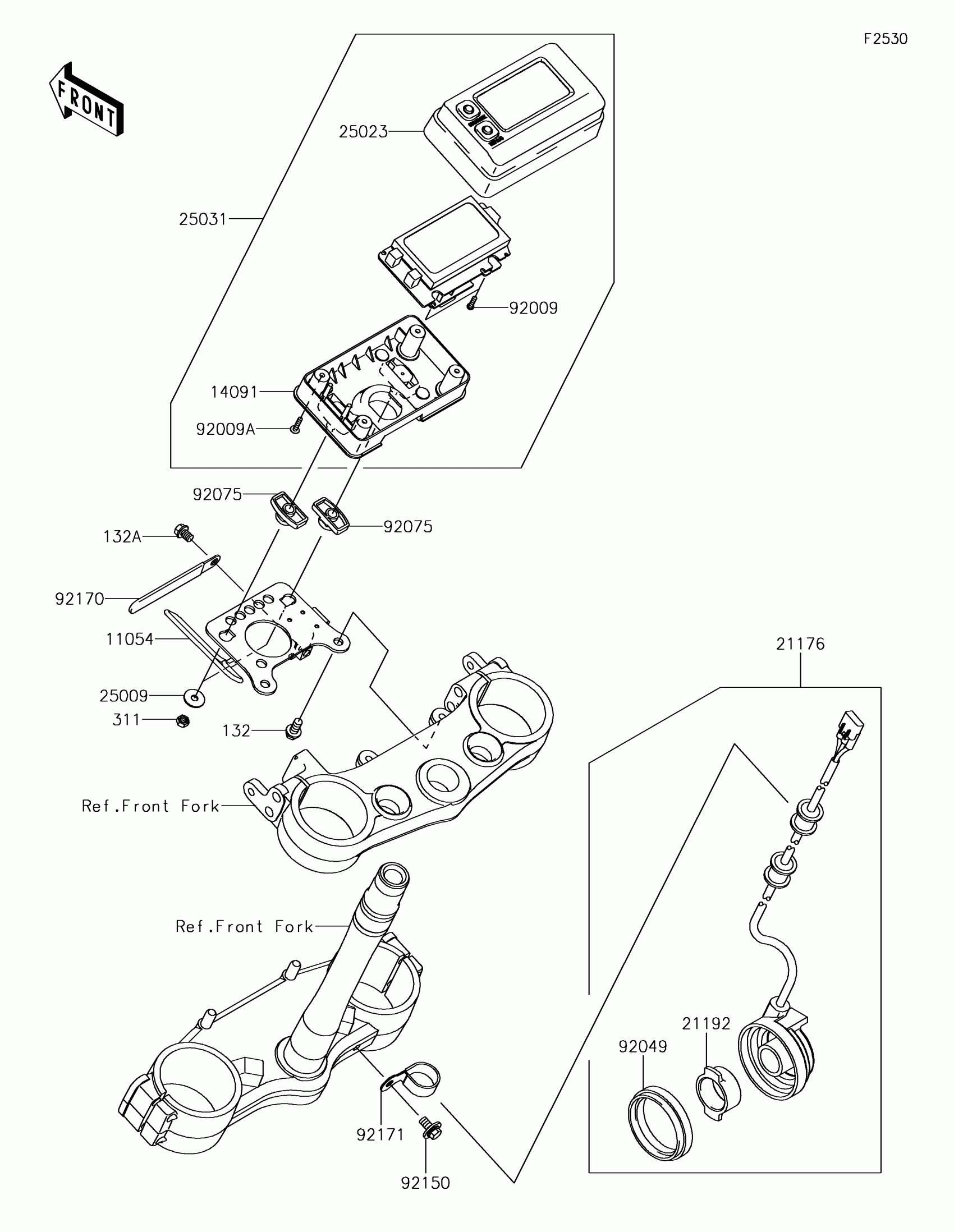

Kawasaki KLX450R Meter(s) Diagram

Description

Price

11054

BRACKET

11054-1090

$15.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

14091

COVER,METER,LWR

14091-0806

$102.78

21176

SENSOR,SPEED

21176-0080

$410.98

21192

MAGNET,SPEED SENSOR

21192-0003

$36.00

25009

WASHER,5.2X16X1.2

25009-004

$3.65

25023

COVER-METER CASE,UPP

25023-0033

$102.78

25031

METER-ASSY,LCD,KPH

25031-0180

$340.23

311

NUT-HEX,5MM

311AB0500

$0.43

92009

SCREW,3X12

92009-1326

$3.65

92009A

SCREW,TAPPING,3X14

92009-1592

$3.69

92049

SEAL-OIL

92049-0102

$22.01

92075

DAMPER,METER BRACKET

92075-1581

$6.07

92150

BOLT,6X12

92150-1435

$4.31

92170

CLAMP

92170-1925

$2.40

92171

CLAMP

92171-1279

$9.19
