2019 Kawasaki KLX450R Kickstarter Mechanism Diagram

← All diagrams

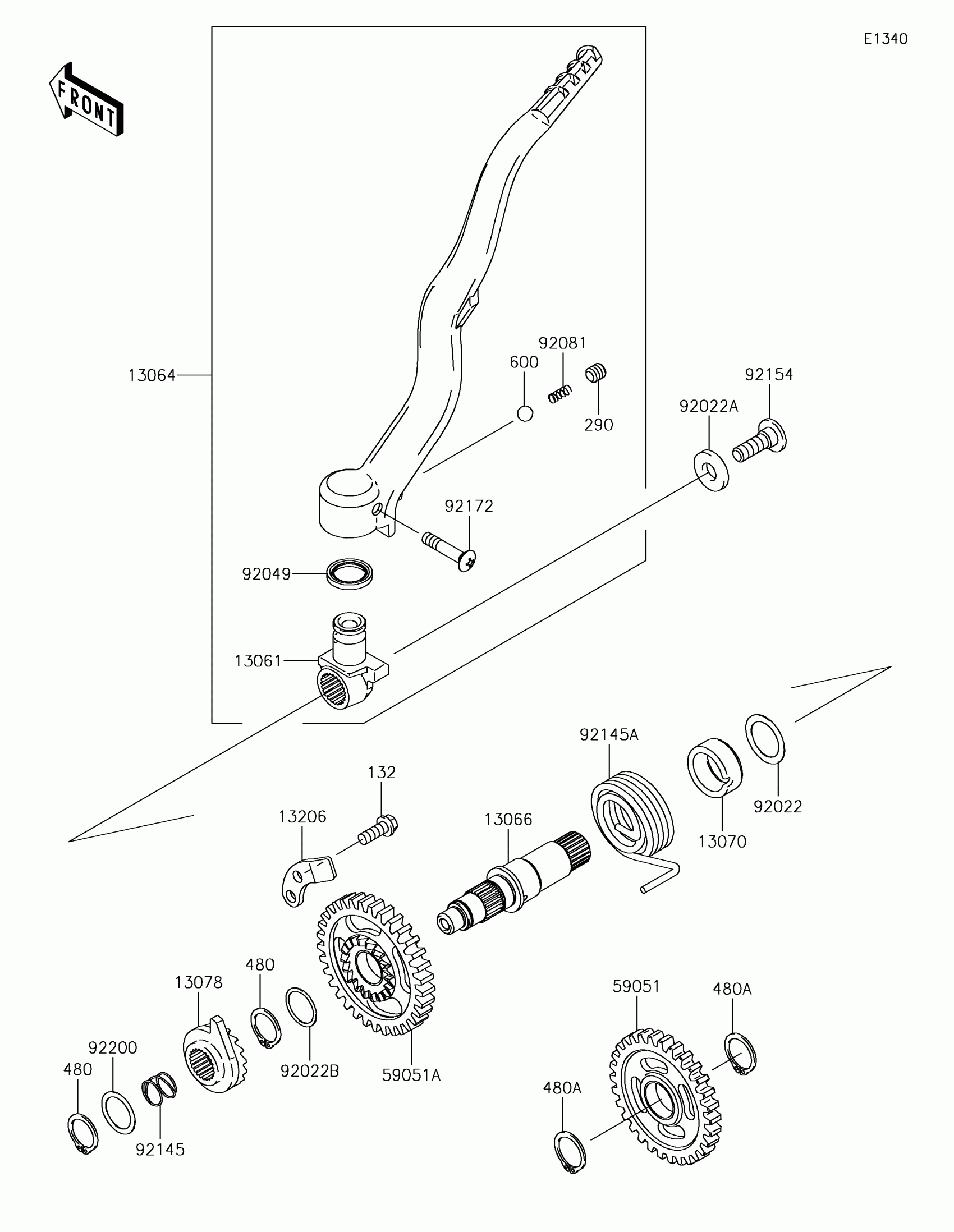

Find the part on the Kickstarter Mechanism diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX450R Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS

13061-0146

1
Out of stock

13064

LEVER-ASSY-KICK

13064-0051

1
Out of stock

13066

SHAFT-KICK

13066-0008

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1378

1
Out of stock

13078

RATCHET

13078-0558

1
Out of stock

132

1

$1.21

In stock

13206

GUIDE-KICK

13206-0005

1
Out of stock

290

SCREW-SET-SOCKET,8X8

290CA0808

1
Out of stock

480

CIRCLIP-TYPE-C,18MM

480J1800

1
Out of stock

480A

CIRCLIP-TYPE-C,19MM

480J1900

1
Out of stock

59051

GEAR-SPUR,30T

59051-0030

1
Out of stock

59051A

GEAR-SPUR,33T

59051-0046

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

92022

WASHER,20.3X28.0X0.5

92022-1885

1
Out of stock

92022A

WASHER,10X22X3.2

92022-1944

1
Out of stock

92022B

WASHER,18.3X22X0.5

92022-271

1
Out of stock

92049

SEAL-OIL,KICK PEDAL

92049-1387

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1
Out of stock

92145

SPRING

92145-0162

1
Out of stock

92145A

SPRING,RETURN

92145-0297

1
Out of stock

92154

BOLT,SOCKET,8X25

92154-0898

1
Out of stock

92172

SCREW,6X30

92172-1088

1
Out of stock

92200

WASHER,18.3X24X0.5

92200-0075

1
Out of stock
