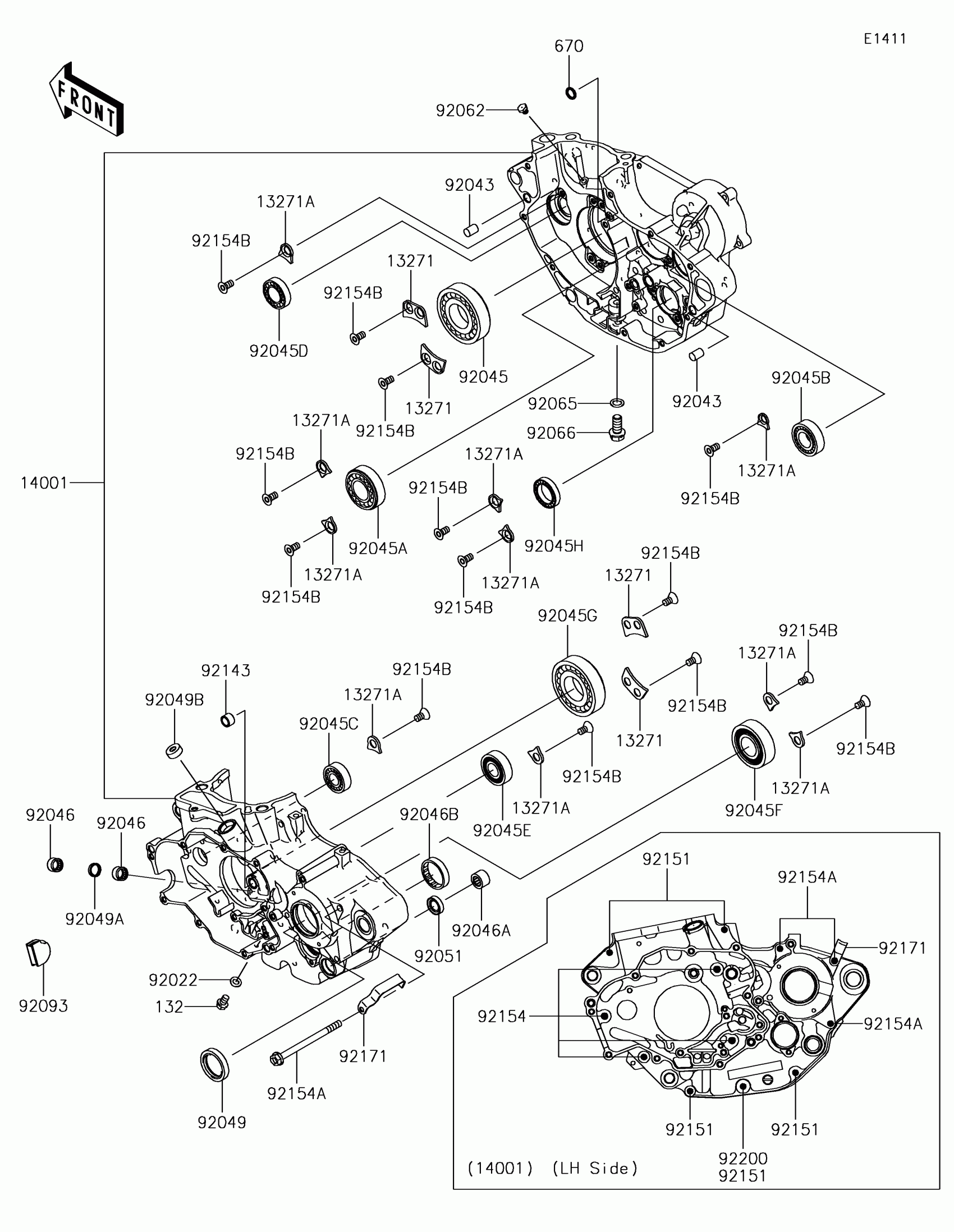

Kawasaki KLX450R Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$1.77

13271

PLATE

13271-0334

$7.61

13271A

PLATE

13271-0345

$4.68

14001

SET-CRANKCASE

14001-0093

$715.12

670

O RING,7MM

670D1507

$1.24

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,10X14

92043-1506

$2.30

92045

BEARING-BALL,B32-32-A-DUX8EC4

92045-0031

$56.98

92045A

BEARING-BALL,25X52X15

92045-0035

$29.44

92045B

BEARING-BALL,20X42X12

92045-0036

$19.76

92045C

BEARING-BALL,6202SH2C3

92045-0037

$10.64

92045D

BEARING-BALL,6904C3UR5

92045-0038

$19.42

92045E

BEARING-BALL,3TM-5X0391LUC3

92045-0057

$17.47

92045F

BEARING-BALL

92045-0062

$35.16

92045G

BEARING-BALL

92045-0132

$38.89

92045H

BEARING-BALL,6805JRZ

92045-1432

$29.08

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92046A

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92046B

BEARING-NEEDLE,7E-HKS33X38X8

92046-1221

$29.14

92049

SEAL-OIL,TC 30 40 7

92049-0030

$16.06

92049A

SEAL-OIL,12X16X3

92049-0087

$12.95

92049B

SEAL-OIL,TC4 8 18 7

92049-0088

$15.93

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92062

NOZZLE,6X7

92062-0013

$15.93

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG,DRAIN,10X22

92066-0038

$5.59

92093

SEAL,BLIND,LH CRANKCASE

92093-0071

$31.36

92143

COLLAR

92143-1263

$3.71

92151

BOLT,6X50

92151-1545

$2.25

92154

BOLT,SOCKET,7X60

92154-0527

$10.73

92154A

BOLT,FLANGED,6X85

92154-0528

$3.20

92154B

BOLT,TORX

92154-1621

$2.98

92171

CLAMP

92171-0579

$5.86

92200

WASHER,6.3X13.5X1.0

92200-0171

$2.71
