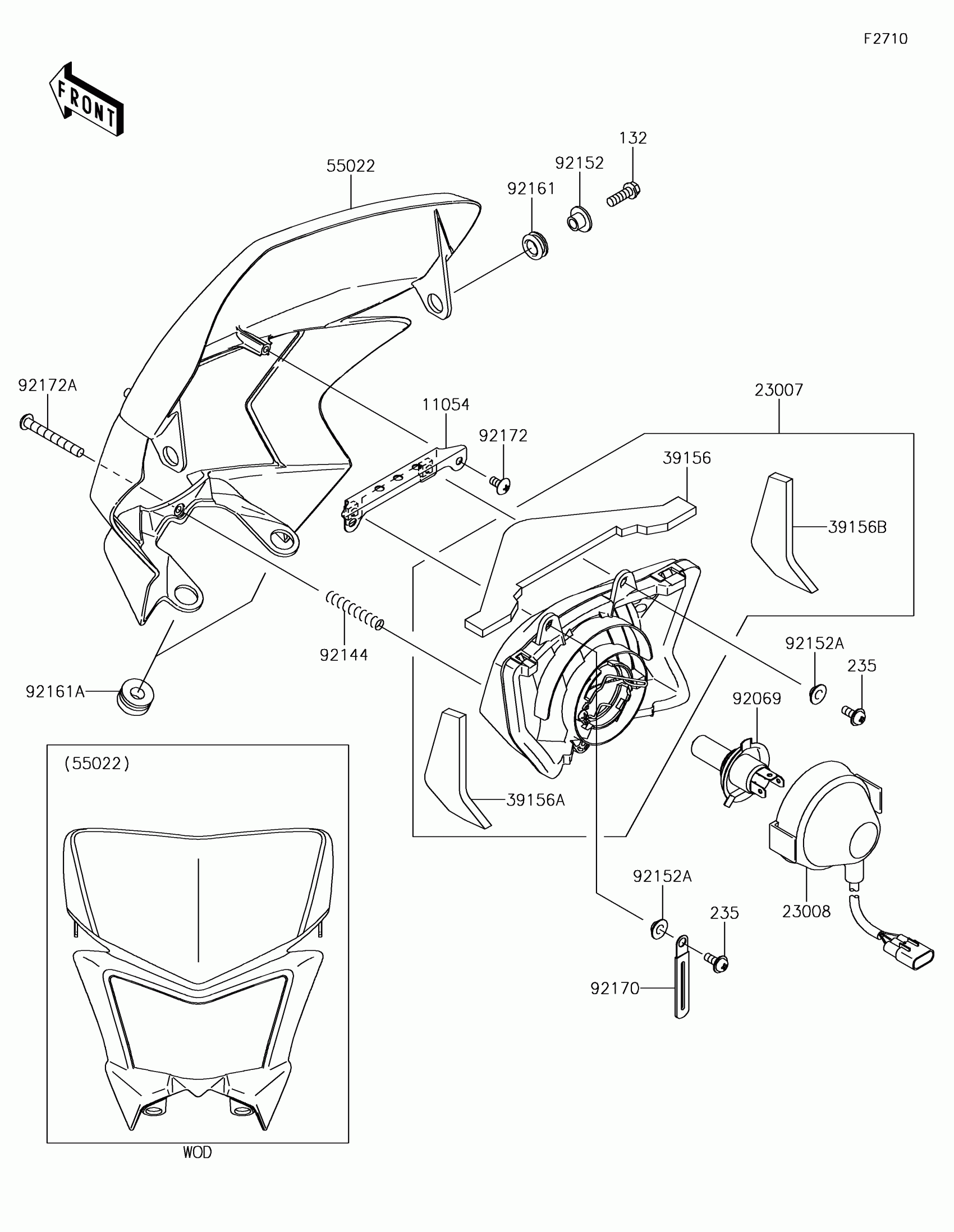

Kawasaki KLX450R Headlight(s) Diagram

Description

Price

11054

BRACKET,HEAD LAMP

11054-1069

$11.93

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$2.15

23007

LENS-COMP,HEAD LAMP

23007-0134

$101.17

23008

SOCKET-ASSY,HEAD LAMP

23008-0064

$46.35

235

SCREW-PAN-WP-CROS,5X12

235AA0512

$4.45

39156

PAD,HEAD LAMP,TOP

39156-0267

$26.91

39156A

PAD,HEAD LAMP,LH

39156-0268

$7.98

39156B

PAD,HEAD LAMP,RH

39156-0269

$7.98

55022

COVER-HEAD LAMP,B.WHITE

55022-0038-266

$55.25

92069

BULB,12V 35/35W

92069-1120

$34.96

92144

SPRING

92144-2266

$4.81

92152

COLLAR

92152-0295

$5.65

92152A

COLLAR

92152-0573

$4.65

92161

DAMPER

92161-0266

$1.78

92161A

DAMPER

92161-0537

$5.65

92170

CLAMP

92170-1514

$4.31

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,TAPPING,4X40

92172-0311

$3.90
