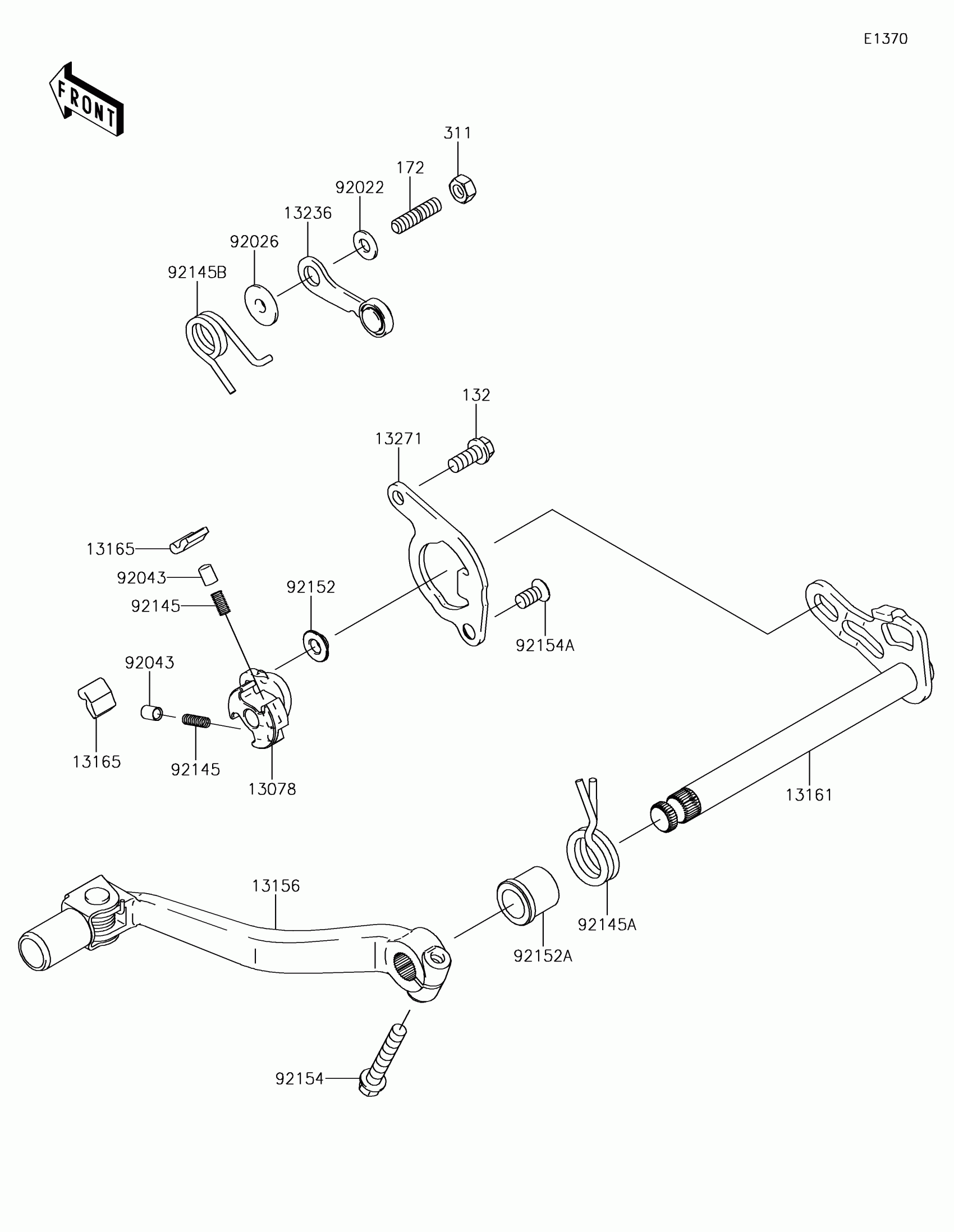

Kawasaki KLX450R Gear Change Mechanism Diagram

Description

Price

13078

RATCHET

13078-0012

$71.23

13156

LEVER-CHANGE,PEDAL

13156-0067

$100.99

13161

LEVER-COMP-CHANGE SHAFT

13161-0081

$58.69

13165

PAWL

13165-0018

$19.48

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.46

13236

LEVER-COMP,POSITION

13236-0129

$16.27

13271

PLATE,PAWL GUIDE

13271-0893

$13.60

172

BOLT-STUD,6X12

172BA0612

$0.87

311

NUT-HEX,6MM

311BA0600

$2.23

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92043

PIN,PLUNGER

92043-1676

$8.72

92145

SPRING

92145-0453

$3.87

92145A

SPRING,RETURN

92145-0496

$13.73

92145B

SPRING,POSITION LEVER

92145-0497

$10.21

92152

COLLAR

92152-1414

$7.63

92152A

COLLAR,RETURN SPRING

92152-1419

$7.63

92154

BOLT,FLANGED,6X25

92154-0520

$3.35

92154A

BOLT,TORX

92154-1621

$3.90
