2019 Kawasaki KLX450R Fuel Tank Diagram

← All diagrams

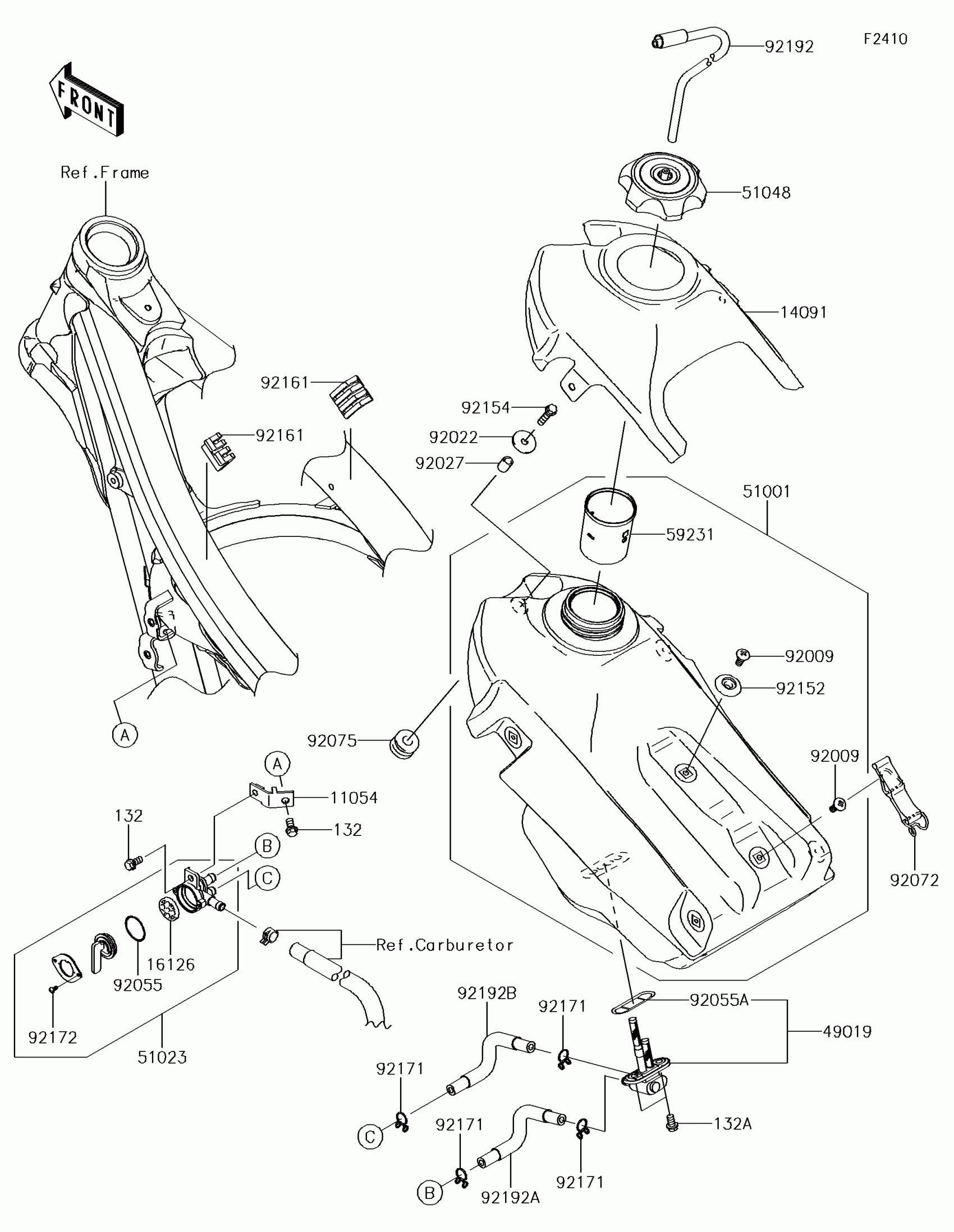

Find the part on the Fuel Tank diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KLX450R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,FUEL TAP

11054-1092

1

$9.93

In stock

132

1

$1.12

In stock

132A

1

$1.73

In stock

14091

COVER,FUEL TANK,F.BLACK

14091-0843-6Z

1
Out of stock

16126

VALVE

16126-0027

1
Out of stock

49019

FILTER-FUEL

49019-0005

1
Out of stock

51001

TANK-COMP-FUEL,F.BLACK

51001-0153-6Z

1
Out of stock

51023

TAP-ASSY,FUEL

51023-0026

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1
Out of stock

59231

FILLER

59231-0019

1
Out of stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1
Out of stock

92027

COLLAR,6.8X10X14

92027-1966

1
Out of stock

92055

RING-O

92055-0111

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1348

1
Out of stock

92072

BAND,FUEL TANK

92072-0045

1
Out of stock

92075

DAMPER

92075-1787

1
Out of stock

92152

COLLAR

92152-1346

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0520

1
Out of stock

92161

DAMPER,FUEL TANK,SIDE

92161-0254

1
Out of stock

92171

CLAMP

92171-0149

1

$3.29

In stock

92172

SCREW,3X6

92172-0259

1
Out of stock

92192

TUBE

92192-0161

1
Out of stock

92192A

TUBE,ON

92192-0409

1
Out of stock

92192B

TUBE,RESERVE

92192-0503

1
Out of stock
