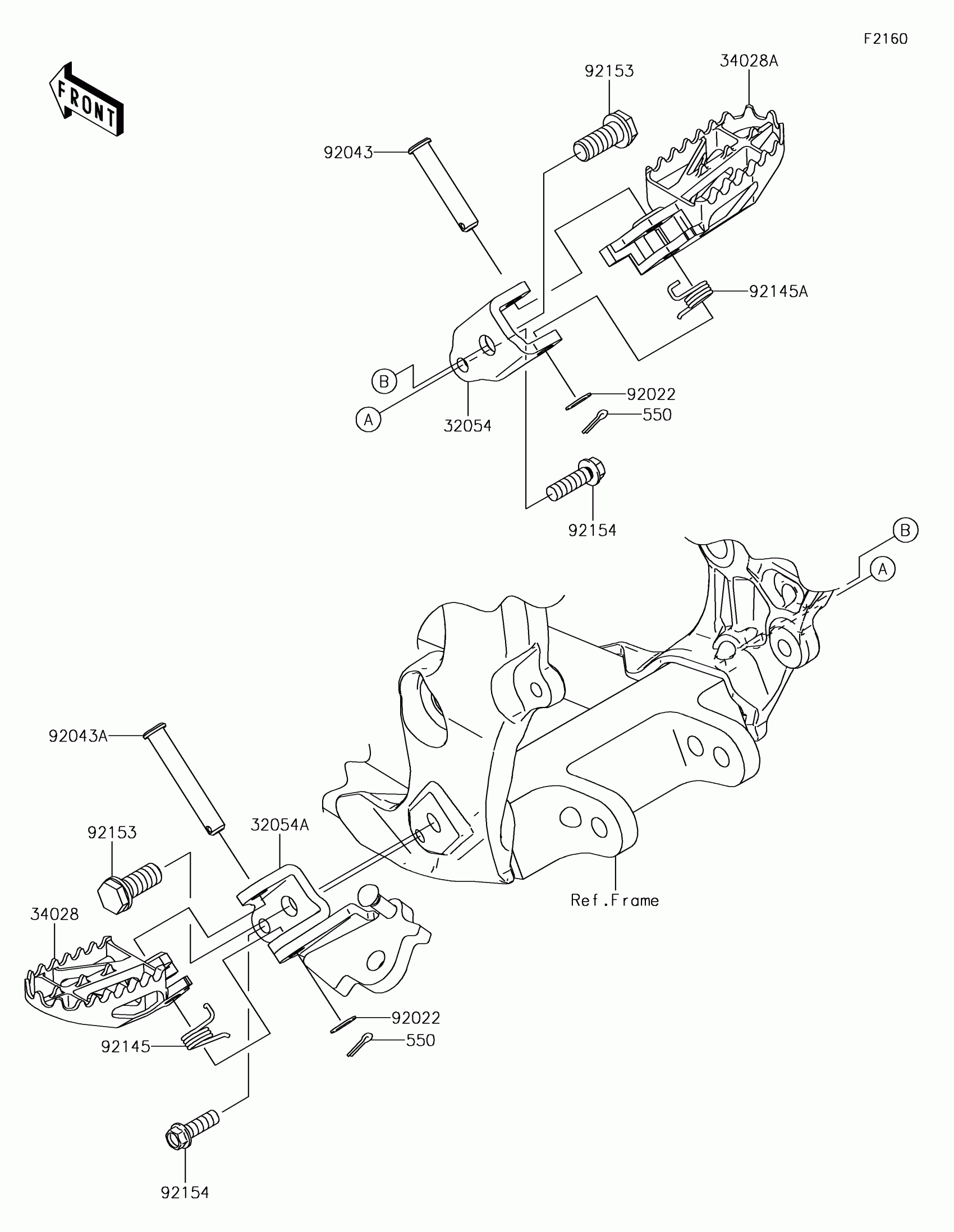

Kawasaki KLX450R Footrests Diagram

Description

Price

32054

BRACKET-STEP,RH

32054-0021

$27.22

32054A

BRACKET-STEP,LH

32054-0031

$83.80

34028

STEP,LH

34028-0014

$57.62

34028A

STEP,RH

34028-0015

$67.20

550

PIN-COTTER,3.0X20

550S3020

$3.63

92022

WASHER,10.2X16X1

92022-1829

$4.31

92043

PIN,10X42.5

92043-0074

$10.37

92043A

PIN,10X53

92043-0090

$13.60

92145

SPRING,STEP,LH

92145-0800

$5.01

92145A

SPRING,STEP,RH

92145-0801

$5.01

92153

BOLT,FLANGED,12X23

92153-0653

$7.75

92154

BOLT,FLANGED,8X25

92154-0515

$3.99
