2019 Kawasaki KLX450R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2019 Kawasaki KLX450R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

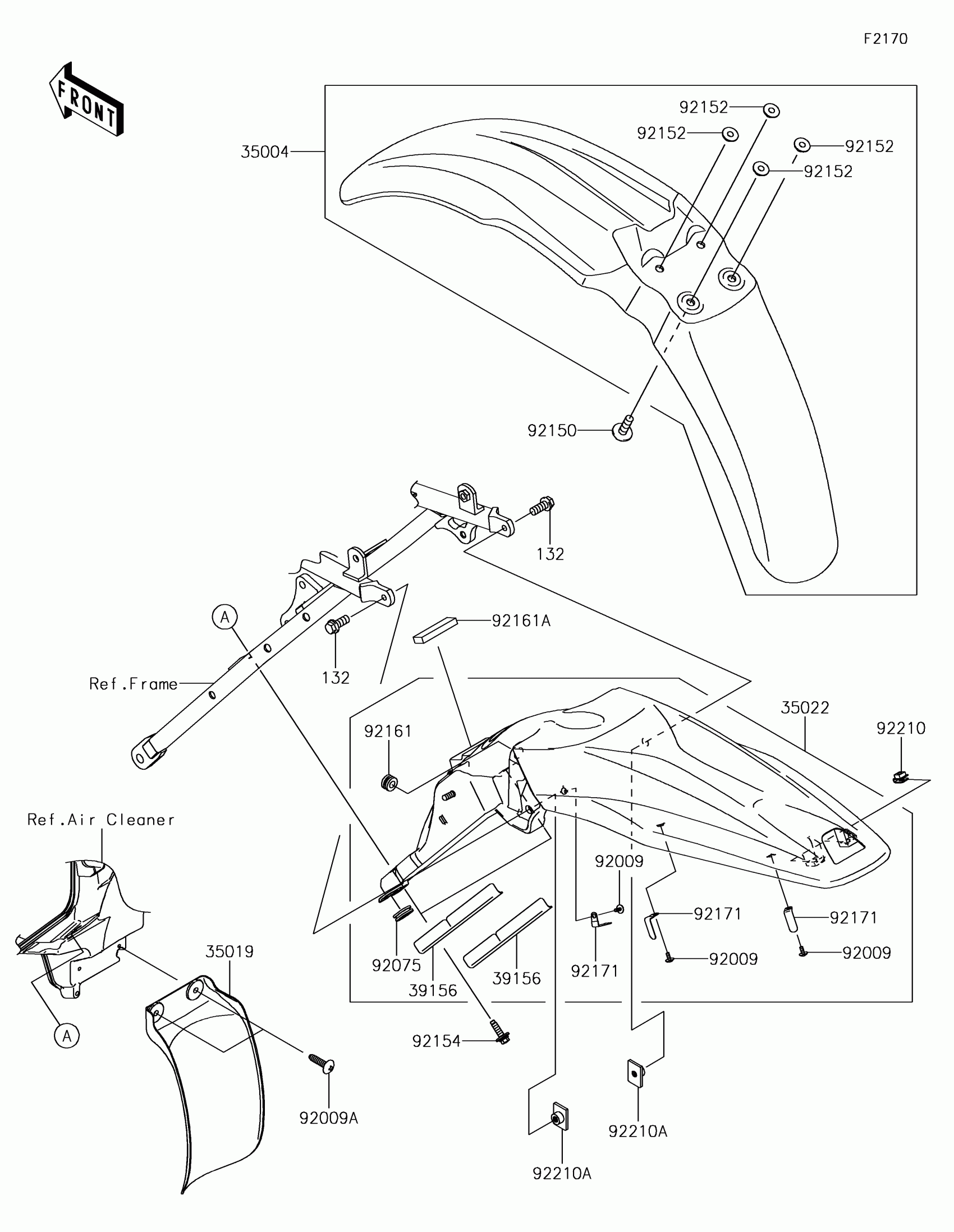

2019 Kawasaki KLX450R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.31

In stock

35004

FENDER-FRONT,L.GREEN

35004-0078-290

1

$75.77

In stock

35019

FLAP,AIR FILTER

35019-0050

1

$35.87

In stock

35022

FENDER-COMP-REAR,L.GREEN

35022-0046-290

1

$78.14

In stock

39156

PAD

39156-0335

1

$8.39

In stock

92009

SCREW,TAPPING,4X8

92009-1155

1
Out of stock

92009A

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92075

DAMPER

92075-1912

1

$5.07

In stock

92150

BOLT,6X20

92150-1801

1

$5.21

In stock

92152

COLLAR

92152-1422

1

$5.76

In stock

92154

BOLT,FLANGED,6X23

92154-0772

1

$2.19

In stock

92161

DAMPER

92161-0279

1

$3.51

In stock

92161A

DAMPER

92161-0457

1

$1.81

In stock

92171

CLAMP

92171-0181

1

$7.80

In stock

92210

NUT,5MM

92210-0351

1
Out of stock

92210A

NUT,PLATE,6MM

92210-1352

1
Out of stock
