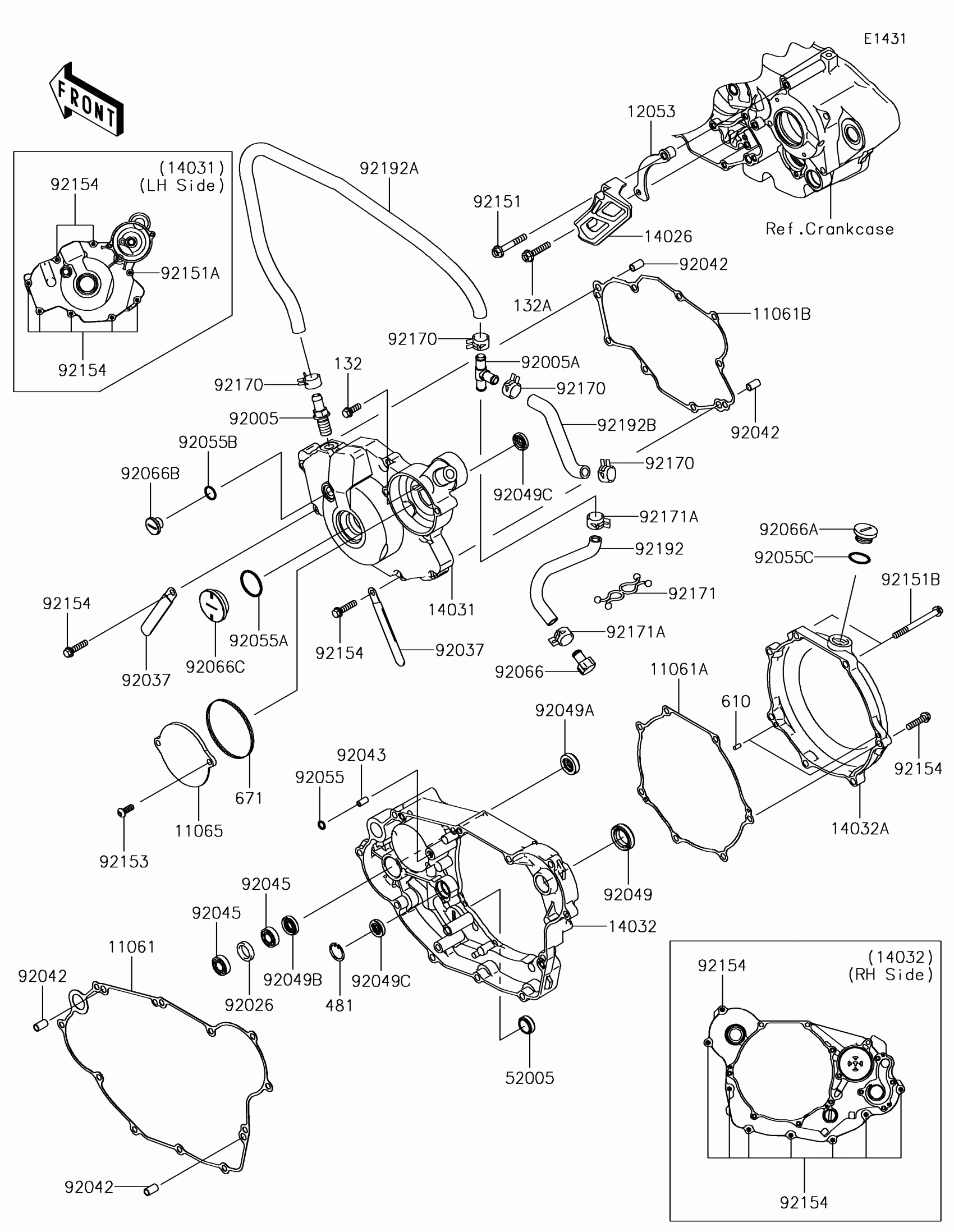

Kawasaki KLX450R Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,CLUTCH COVER,INNER

11061-0224

$46.35

11061A

GASKET,CLUTCH OUTER COVER

11061-0259

$28.84

11061B

GASKET,GENERTOR COVER

11061-0271

$28.84

11065

CAP,LIMITER

11065-0283

$88.65

12053

GUIDE-CHAIN

12053-0098

$15.06

14026

COVER-CHAIN

14026-0045

$26.13

14031

COVER-GENERATOR

14031-0106

$147.58

14032

COVER-CLUTCH,INNER

14032-0062

$237.38

14032A

COVER-CLUTCH

14032-0131

$134.58

52005

GAUGE,OIL LEVEL

52005-0019

$14.76

92005

FITTING,BREATHER

92005-0014

$23.10

92005A

FITTING,3WAY

92005-0083

$6.68

92026

SPACER,16X22X4.3

92026-0064

$7.75

92037

CLAMP

92037-1993

$5.52

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,4.2X6X12

92043-1262

$4.31

92045

BEARING-BALL,6900C3

92045-0039

$16.52

92049

SEAL-OIL,20X30X7

92049-0134

$8.44

92049A

SEAL-OIL,12X24X7

92049-0782

$9.28

92049B

SEAL-OIL,12X22X5

92049-0783

$7.75

92049C

SEAL-OIL,10X20X5

92049-1542

$7.95

92055

RING-O

92055-0113

$3.90

92055A

RING-O,27.7X2.4

92055-091

$6.22

92055B

RING-O,13.0X1.9

92055-1011

$7.62

92055C

RING-O,20X2

92055-1146

$8.58

92066

PLUG

92066-0104

$7.69

92066A

PLUG

92066-0138

$16.24

92066B

PLUG,12X9.1

92066-0153

$10.51

92066C

PLUG

92066-1404

$13.63

92151

BOLT,6X40

92151-1131

$4.87

92151A

BOLT,6X35

92151-1135

$4.18

92151B

BOLT,6X65

92151-1199

$4.87

92153

BOLT,SOCKET,6X16

92153-1785

$2.61

92154

BOLT,FLANGED,6X25

92154-0530

$2.32

92170

CLAMP

92170-1938

$3.74

92171

CLAMP

92171-0476

$3.90

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,9X13X205

92192-0542

$13.48

92192A

TUBE,9X14X760

92192-0543

$21.82

92192B

TUBE,FIT.-A/C

92192-0544

$8.60

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X30

132BC0630

$2.15

481

CIRCLIP-TYPE-C,20MM

481J2000

$7.71

610

ROLLER,4X8

610A0408

$4.31

671

O RING,65MM

671B2565

$8.86
