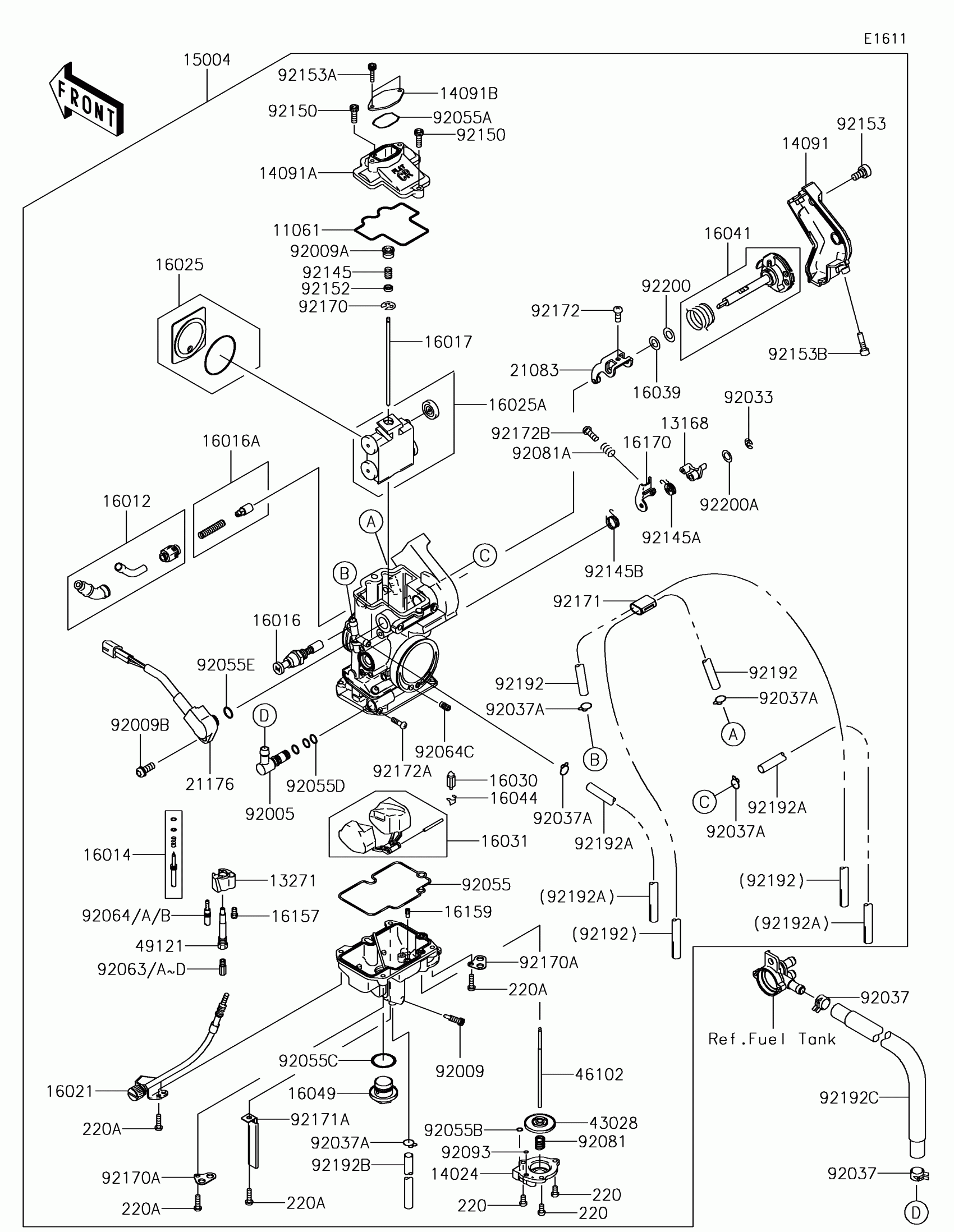

Kawasaki KLX450R Carburetor Diagram
#
11061
GASKET
11061-0077
$11.66
13168
LEVER
13168-0051
$23.08
13271
PLATE
13271-0241
$16.59
14024
COVER
14024-1971
$55.25
14091
COVER
14091-0209
$54.42
14091A
COVER,TOP
14091-0587
$29.32
14091B
COVER
14091-0588
$9.89
15004
CARBURETOR-ASSY,FCR-MX40
15004-0052
$1,068.22
16012
CAP-STARTER PLUNGER
16012-0002
$21.49
16014
SCREW-PILOT AIR
16014-0004
$17.80
16016
PLUNGER
16016-0009
$41.61
16016A
PLUNGER
16016-0017
$16.72
16017
JET-NEEDLE,NCVU
16017-0011
$47.83
16021
SCREW-THROTTLE STOP
16021-0013
$43.99
16025
VALVE-THROTTLE
16025-0009
$73.50
16025A
VALVE-THROTTLE
16025-0013
$298.94
16030
VALVE-FLOAT
16030-1057
$47.13
16031
FLOAT
16031-1100
$58.03
16039
WASHER
16039-0230
$2.12
16041
SHAFT-CARBURETOR
16041-0004
$160.32
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
16049
COVER-MAIN JET
16049-1051
$33.28
16157
JET-STARTER,#55
16157-1061
$22.95
16159
JET-POWER,#50
16159-1053
$14.66
16170
LINK-ASSY
16170-0003
$16.44
21083
ARM
21083-0035
$42.34
21176
SENSOR,THROTTLE
21176-0016
$95.16
43028
DIAPHRAGM
43028-0006
$22.09
46102
ROD
46102-0033
$25.16
49121
NOZZLE-MAIN
49121-0001
$37.58
92005
FITTING
92005-0016
$24.93
92009
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92009A
SCREW
92009-1876
$11.39
92009B
SCREW,THROTTLE SENSOR
92009-1981
$2.41
92033
RING-SNAP
92033-0018
$2.92
92037
CLAMP,HOSE CLIP
92037-1181
$3.36
92037A
CLAMP,TUBE
92037-1396
$5.52
92055
RING-O,FLOAT CHAMBER
92055-0066
$18.29
92055A
RING-O
92055-0109
$2.15
92055B
RING-O
92055-1004
$4.31
92055C
RING-O,MAIN JET COVER
92055-1167
$9.51
92055D
RING-O
92055-1223
$5.52
92055E
RING-O
92055-1671
$3.73
92063
JET-MAIN,#140
92063-1360
Unavailable
92063A
JET-MAIN,#142
92063-1361
Unavailable
92063B
JET-MAIN,#145
92063-1362
$14.10
92063C
JET-MAIN,#148
92063-1363
Unavailable
92063D
JET-MAIN,#150
92063-1364
Unavailable
92064
JET-PILOT,#42
92064-1141
Unavailable
92064A
JET-PILOT,#45
92064-1142
$17.03
92064B
JET-PILOT,#48
92064-1143
Unavailable
92064C
JET-PILOT,#100
92064-1160
$14.92
92081
SPRING,DIAPHRAGM
92081-1092
$11.61
92081A
SPRING
92081-1620
$4.96
92093
SEAL-"U"RING
92093-1046
$6.51
92145
SPRING
92145-0164
$17.22
92145A
SPRING
92145-0166
$17.22
92145B
SPRING
92145-0167
$17.22
92150
BOLT,SOCKET,4X12
92150-1426
$6.22
92152
COLLAR
92152-0141
$9.51
92153
BOLT
92153-0639
$5.59
92153A
BOLT
92153-1513
$3.90
92153B
BOLT
92153-1896
$13.60
92170
CLAMP,JET NEEDLE
92170-1204
$3.94
92170A
CLAMP
92170-1582
$4.18
92171
CLAMP
92171-0246
$6.26
92171A
CLAMP
92171-1684
$8.68
92172
SCREW
92172-0127
$5.59
92172A
SCREW
92172-0128
$5.59
92172B
SCREW
92172-0129
$5.59
92192
TUBE
92192-0083
$7.60
92192A
TUBE
92192-0084
$7.60
92192B
TUBE
92192-0085
$7.60
92192C
TUBE,7X14X300
92192-0413
$46.35
220
SCREW-PAN-CROS,4X8
220AA0408
$0.68
220A
SCREW-PAN-CROS,4X14
220AA0414
$4.60
92200
WASHER
92200-0107
$2.95
92200A
WASHER,LINK ARM,STAINLESS
92200-1434
$2.41
