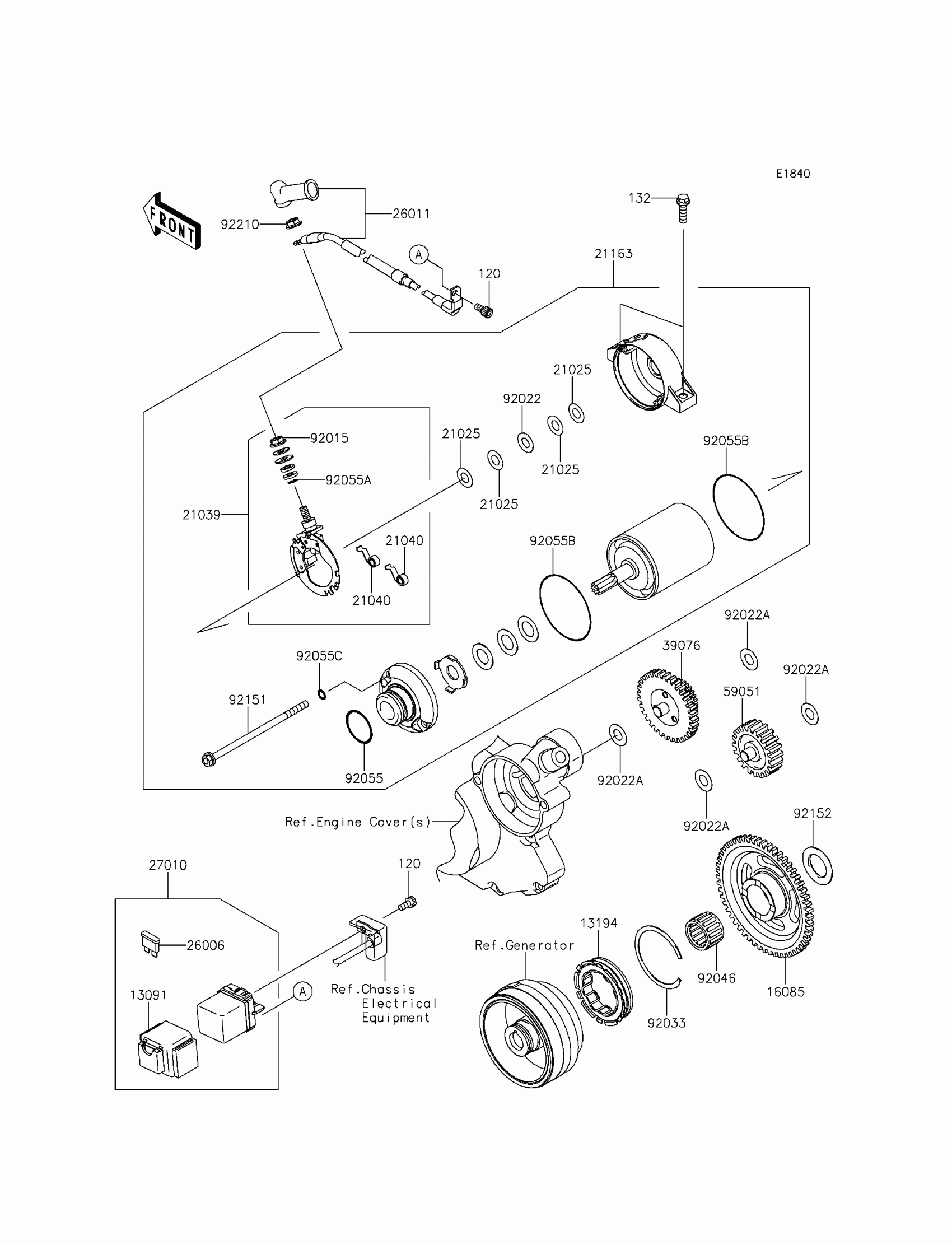

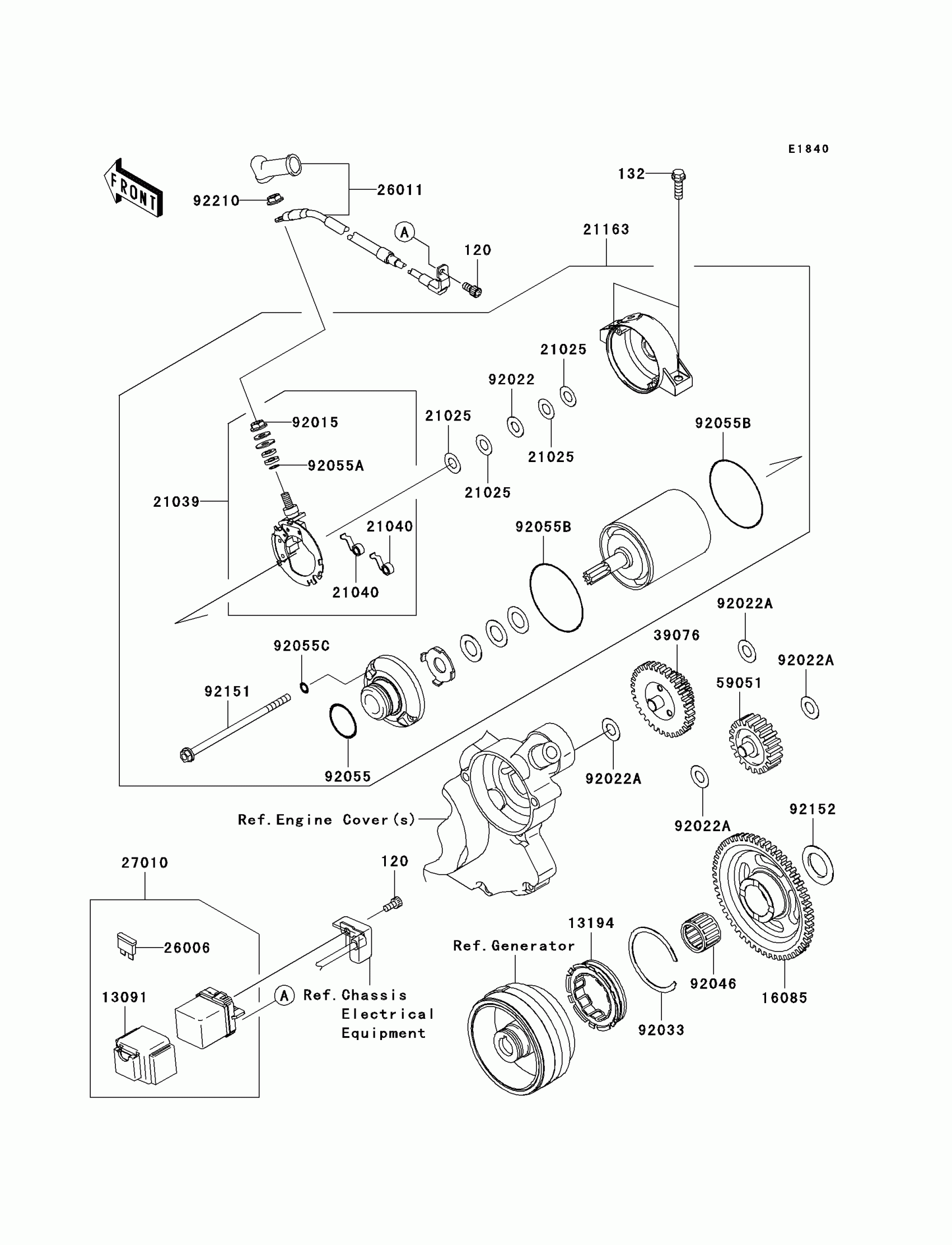

Kawasaki KLX450R (Australian) Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.64

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

13091

HOLDER

13091-1992

$7.60

13194

CLUTCH-ONEWAY

13194-0008

$110.81

16085

GEAR

16085-0122

$121.74

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-0006

$68.25

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-0038

$347.52

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD

26011-0133

$39.33

27010

SWITCH

27010-0004

Unavailable

39076

LIMITER

39076-0012

$103.74

59051

GEAR-SPUR,IDLER

59051-0074

$75.22

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92022A

WASHER,10.2X20X0.5

92022-1649

$4.31

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE,K22X28X17V1

92046-0026

$20.44

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92055C

RING-O

92055-1551

$4.69

92151

BOLT

92151-1158

$7.58

92152

COLLAR,22X27.5X4.1

92152-0515

$13.60

92210

NUT,6MM

92210-0188

$2.15
