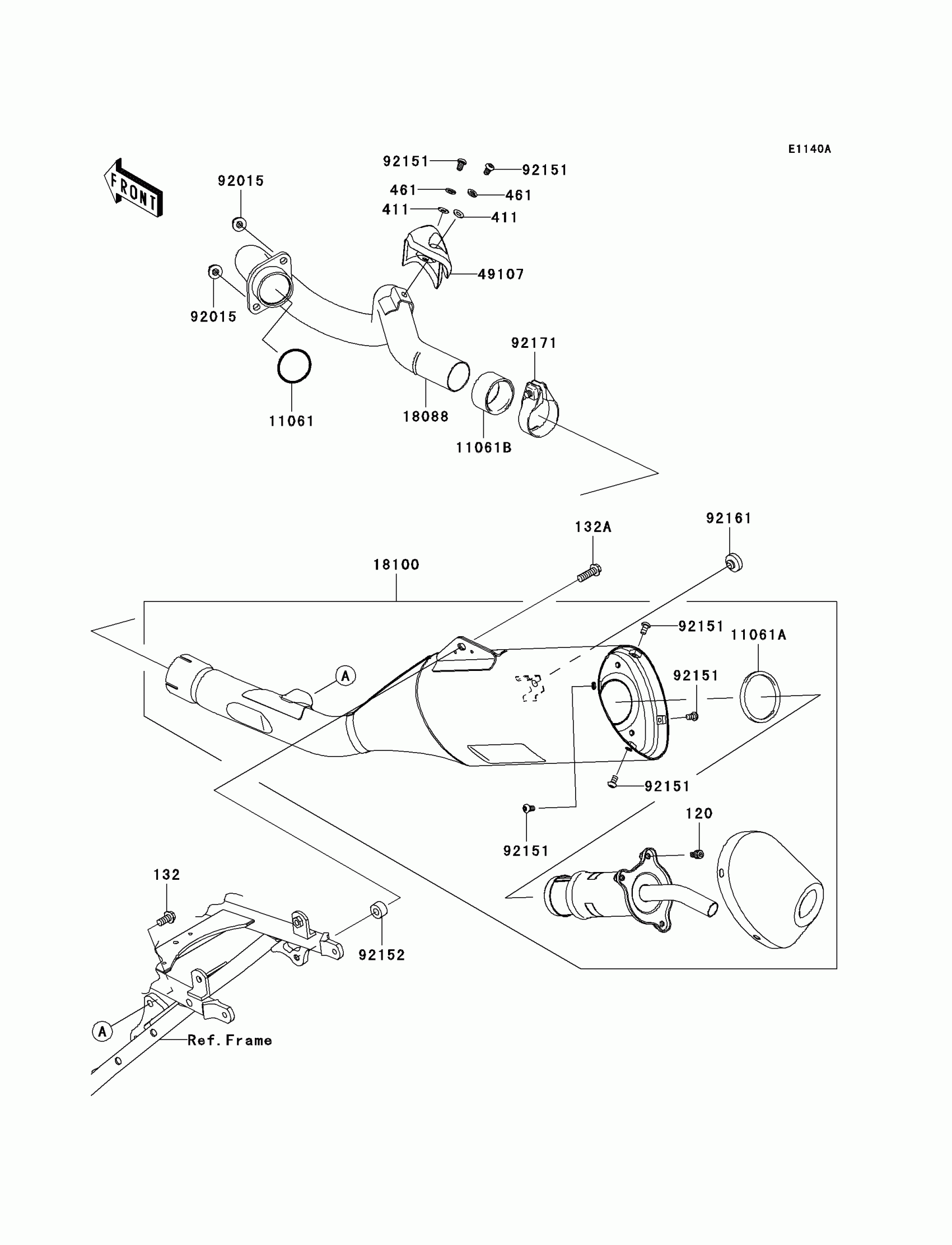

Kawasaki KLX450R (Australian) Muffler(s)(JKALXGA1 8A006446-) Diagram

Description

Price

120

BOLT-SOCKET,6X10

120CA0610

$1.71

132

BOLT-FLANGED-SMALL,8X18

132BB0818

$2.70

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$4.12

411

WASHER-PLAIN,6MM

411S0600

$2.06

461

WASHER-SPRING,6MM

461S0600

$1.07

11061

GASKET,38.9X46.4X3.0

11061-0082

$7.60

11061A

GASKET

11061-0100

$7.58

11061B

GASKET,38.1X48.7X32

11061-0285

$28.84

18088

PIPE-EXHAUST

18088-0371

$173.64

18100

BODY-ASSY-MUFFLER

18100-0073

$842.31

49107

COVER-EXHAUST PIPE

49107-0109

$66.09

92015

NUT,8MM

92015-1402

$4.69

92151

BOLT,SOCKET,6X10

92151-1449

$2.46

92152

COLLAR

92152-3726

$4.49

92161

DAMPER,8X22X6

92161-0516

$27.22

92171

CLAMP

92171-0653

$25.00
