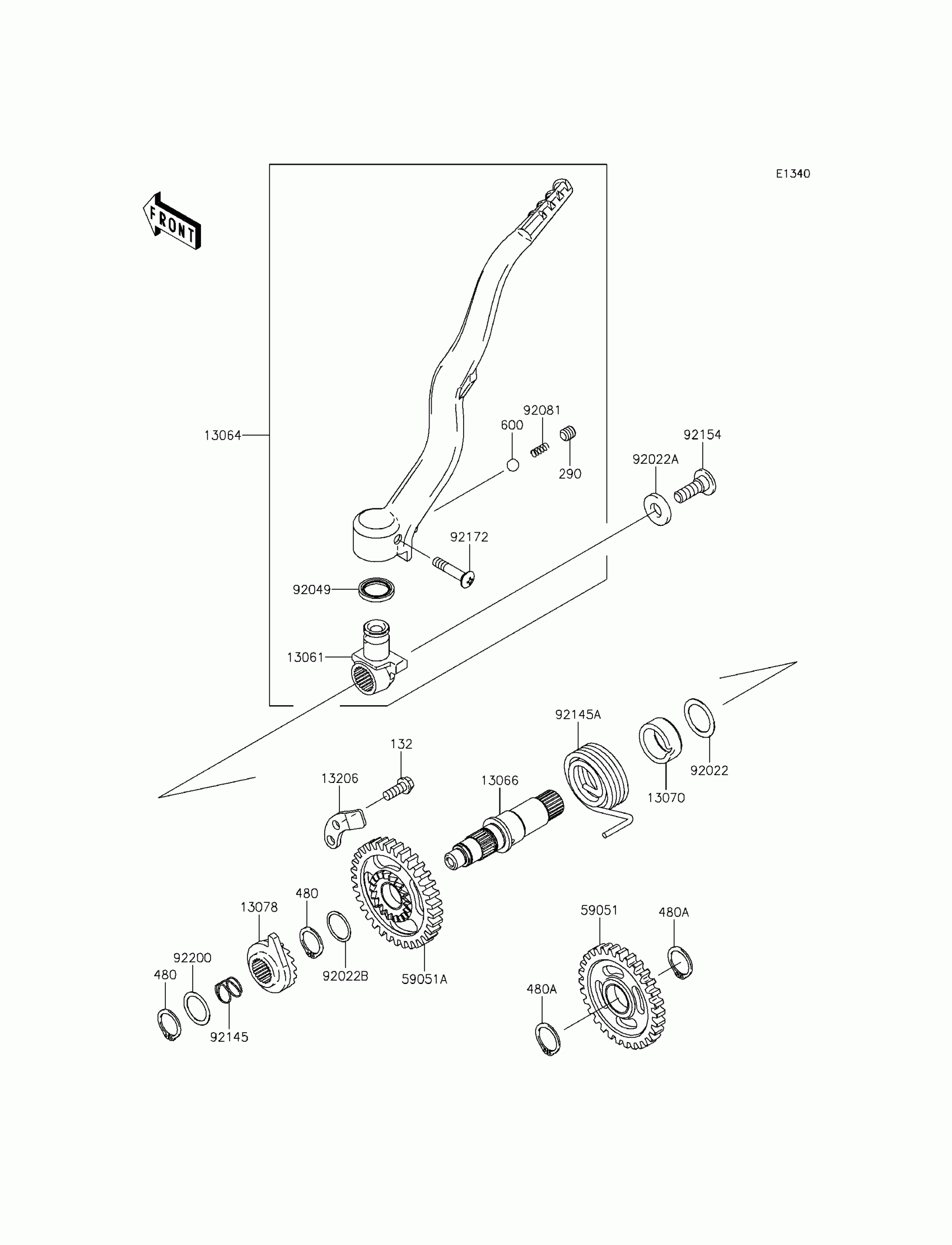

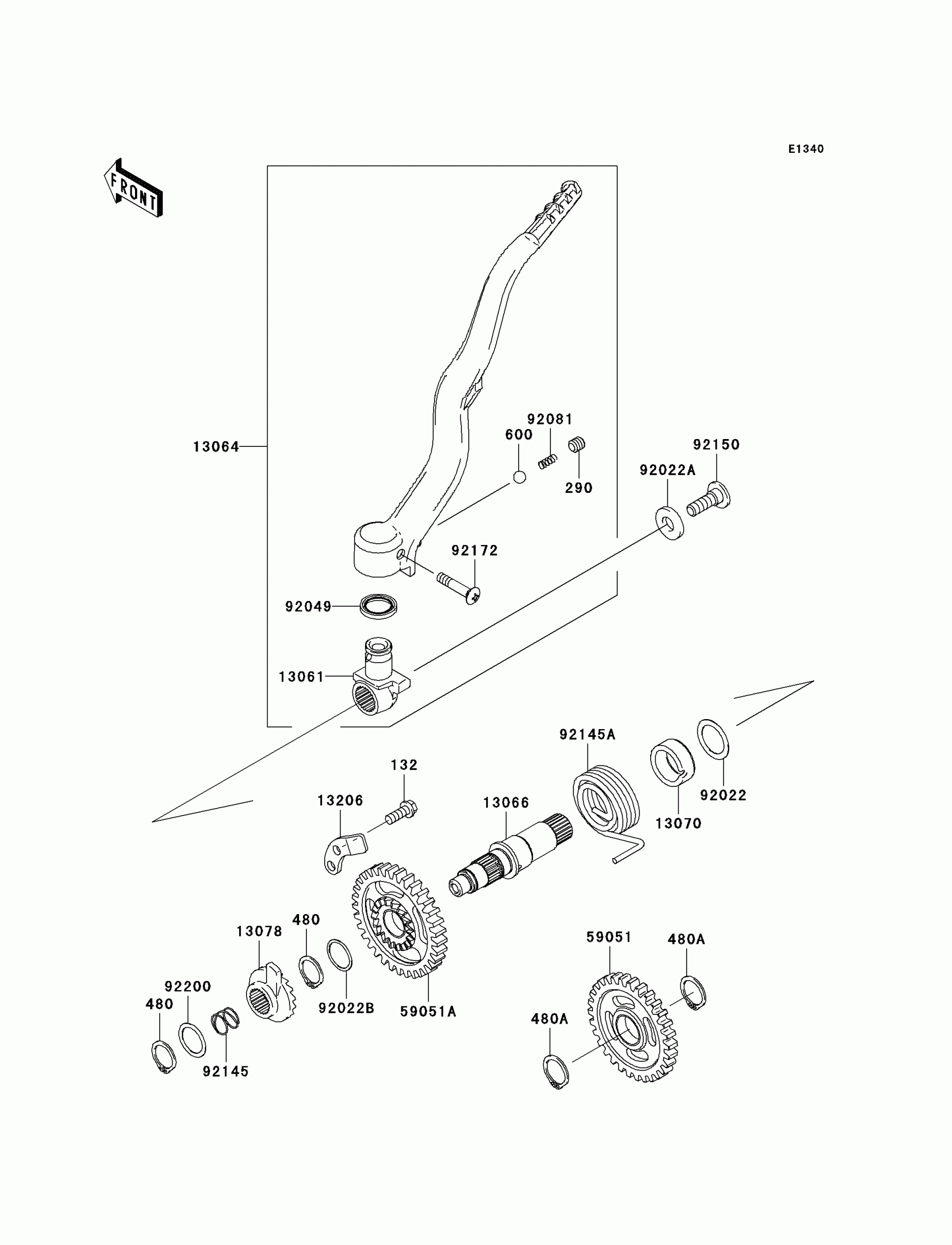

Kawasaki KLX450R (Australian) Kickstarter Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

290

SCREW-SET-SOCKET,8X8

290CA0808

$3.39

480

CIRCLIP-TYPE-C,18MM

480J1800

$1.28

480A

CIRCLIP-TYPE-C,19MM

480J1900

$1.28

600

BALL-STEEL,1/4

600A0800

$0.62

13061

BOSS

13061-0146

$79.05

13064

LEVER-ASSY-KICK

13064-0051

$131.08

13066

SHAFT-KICK

13066-0008

$120.37

13070

GUIDE,KICK SPRING

13070-1378

$20.74

13078

RATCHET

13078-0558

$63.94

13206

GUIDE-KICK

13206-0005

$12.46

59051

GEAR-SPUR,30T

59051-0030

$92.37

59051A

GEAR-SPUR,33T

59051-0046

$99.50

92022

WASHER,20.3X28.0X0.5

92022-1885

$4.31

92022A

WASHER,10X22X3.2

92022-1944

$5.00

92022B

WASHER,18.3X22X0.5

92022-271

$5.52

92049

SEAL-OIL,KICK PEDAL

92049-1387

$6.22

92081

SPRING,KICK PEDAL

92081-020

$4.26

92145

SPRING

92145-0162

$12.65

92145A

SPRING,RETURN

92145-0297

$10.21

92154

BOLT,SOCKET,8X25

92154-0898

$5.33

92172

SCREW,6X30

92172-1088

$4.67

92200

WASHER,18.3X24X0.5

92200-0075

$2.12
