Handlebar

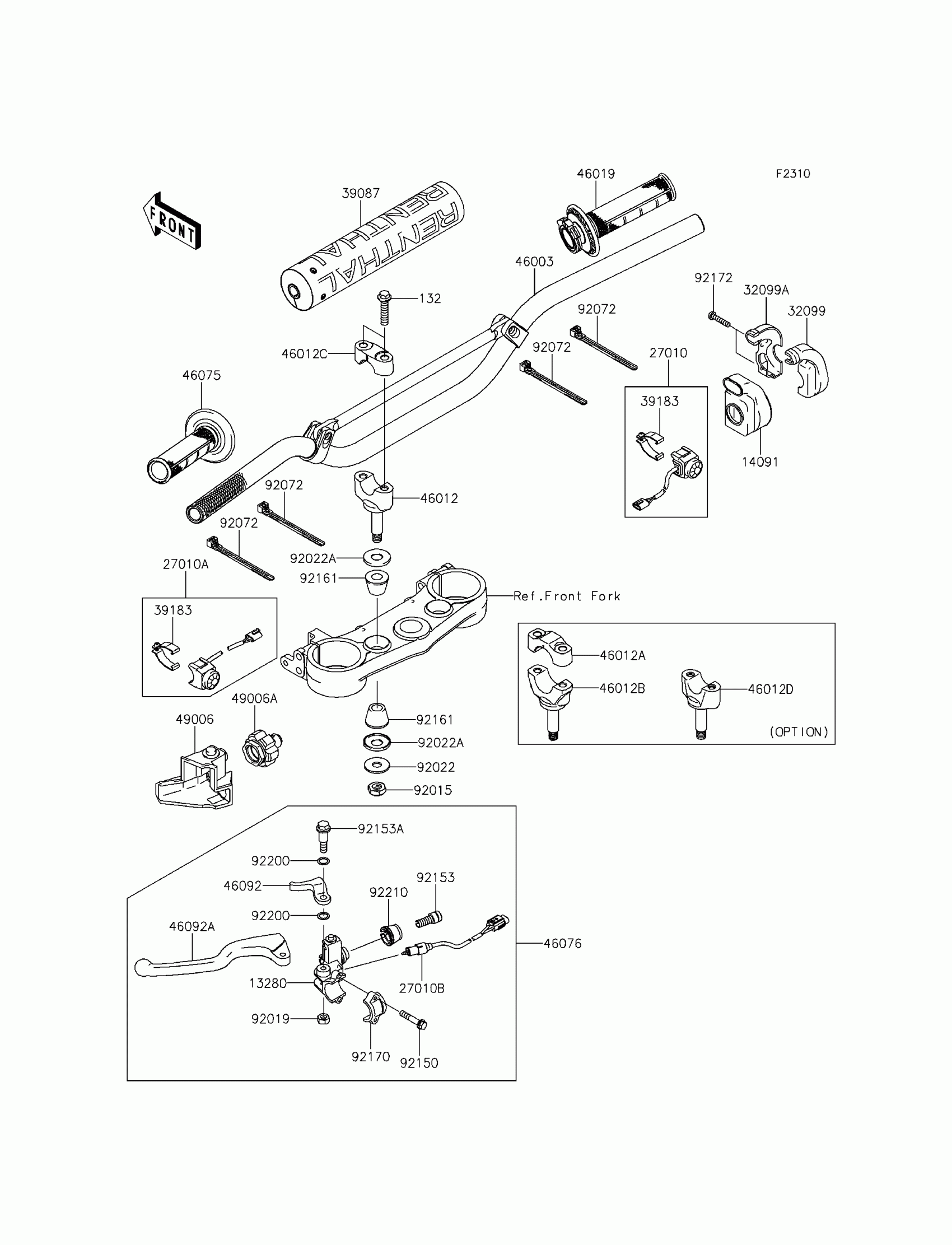

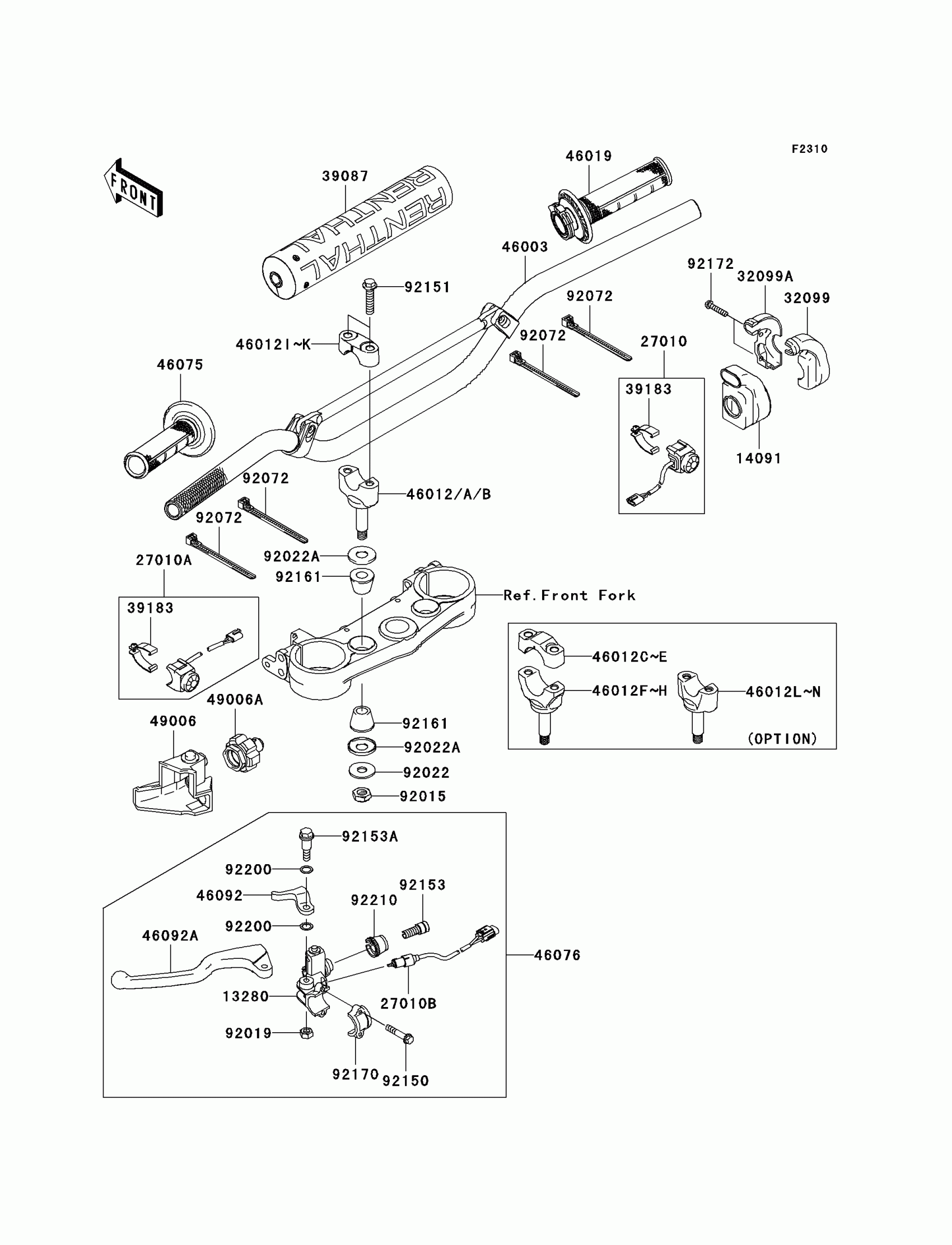

Kawasaki KLX450R (Australian) Handlebar Diagram
#
132
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
13280
HOLDER,CLUTCH LEVER
13280-0213
$59.66
14091
COVER,THROTTLE CASE
14091-0182
$10.06
27010
SWITCH,ENGINE START
27010-0069
$37.51
27010A
SWITCH,ENGINE STOP
27010-0070
$37.51
27010B
SWITCH,CLUTCH
27010-0071
$55.25
32099
CASE,THROTTLE,RR
32099-0002
$30.31
32099A
CASE,THROTTLE,FR
32099-0003
$30.31
39087
PAD-HANDLE
39087-0004
$74.54
39183
BAND-ASSY,SWITCH
39183-1059
$13.02
46003
HANDLE
46003-0077
$202.73
46012
HOLDER-HANDLE,LWR,F.BLACK
46012-0013-21
$42.27
46012A
HOLDER-HANDLE,UPP,FAT BAR,BLK
46012-0020-21
$24.15
46012B
HOLDER-HANDLE,LWR,FAT BAR,BLK
46012-0021-21
$42.27
46012C
HOLDER-HANDLE,UPP,F.BLACK
46012-0023-21
$24.15
46012D
HOLDER-HANDLE,LWR,F.BLACK
46012-0048-21
$42.27
46019
GRIP-ASSY,THROTTLE
46019-0018
$51.65
46075
GRIP,LH
46075-0044
$14.62
46076
LEVER-ASSY-GRIP,CLUTCH&STARTER
46076-0041
$73.59
46092
LEVER-GRIP,STARTER
46092-0001
$6.28
46092A
LEVER-GRIP,CLUTCH
46092-0025
$16.66
49006
BOOT,CLUTCH LEVER
49006-0051
$15.06
49006A
BOOT,CLUTCH CABLE
49006-0060
$7.60
92015
NUT,LOCK,10MM
92015-1962
$6.11
92019
NUT,LOCK,6MM
92019-008
$4.26
92022
WASHER,10.2X28X2
92022-1088
$4.69
92022A
WASHER
92022-1737
$5.52
92072
BAND,L=100
92072-0055
$3.90
92150
BOLT
92150-1474
$5.00
92153
BOLT,BOLT ADJUSTING
92153-0773
$11.95
92153A
BOLT,6MM
92153-1506
$8.68
92161
DAMPER,HANDLE HOLDER
92161-0113
$5.29
92170
CLAMP,LEVER HOLDER
92170-1226
$27.29
92172
SCREW,5X20
92172-0069
$3.32
92200
WASHER
92200-0300
$3.90
92210
NUT,BOLT WIRE ADJUSTING
92210-0167
$31.86
