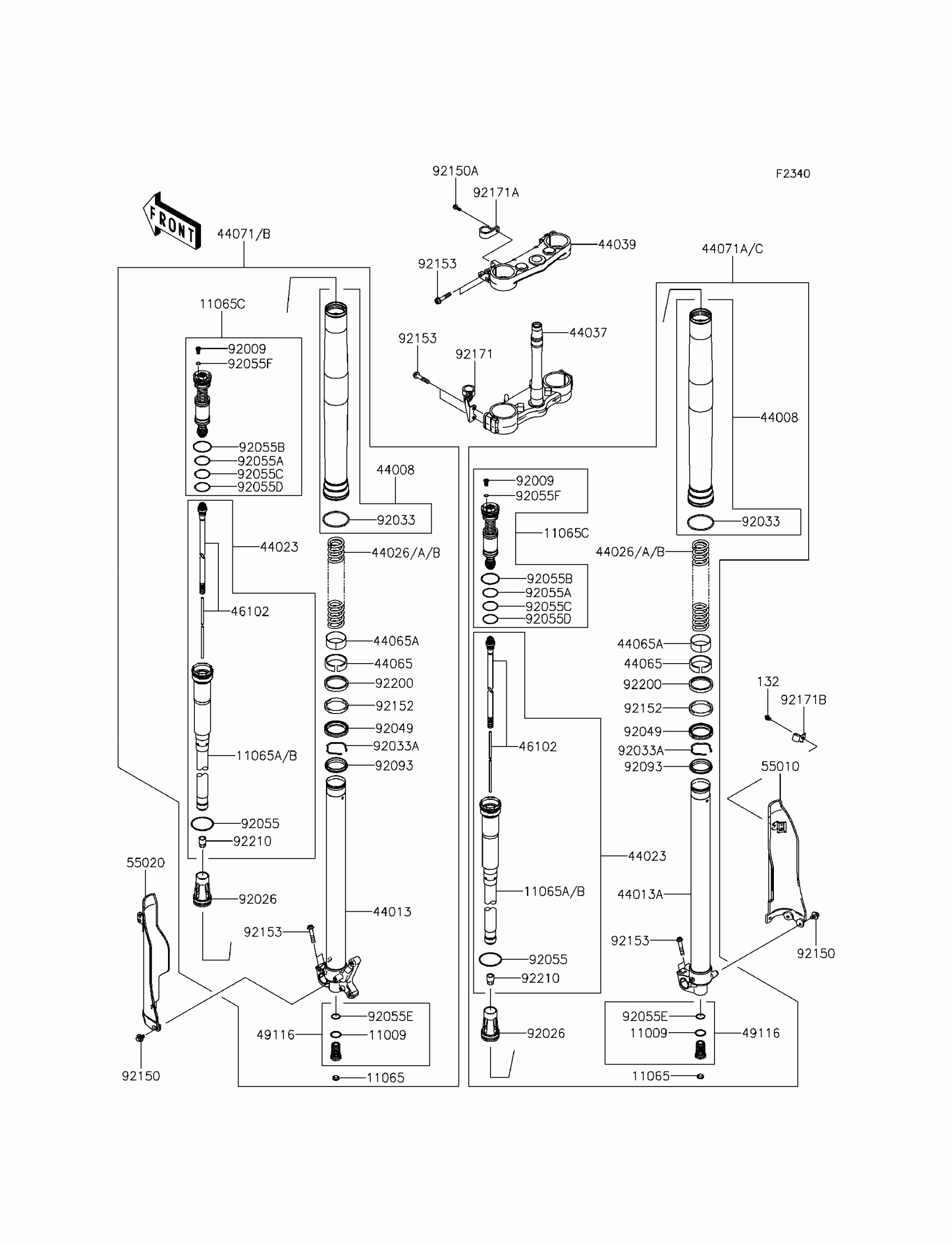

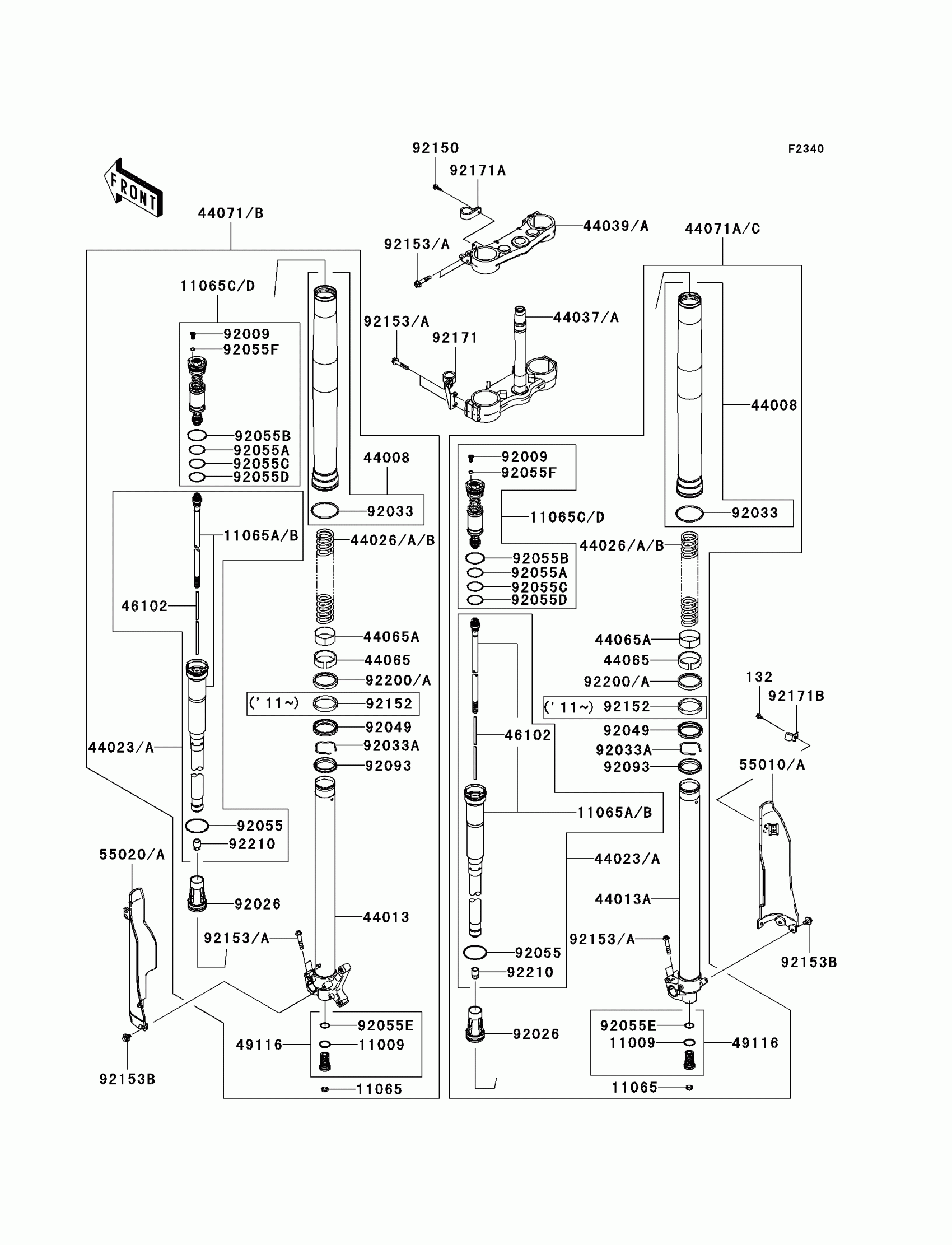

Kawasaki KLX450R (Australian) Front Fork Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1592

$6.16

11065

CAP

11065-0097

$5.60

11065A

CAP,FORK,TOP,SILVER

11065-0163-KX

$237.72

11065C

CAP,BASE VALVE

11065-0371

$239.52

44008

PIPE-FORK OUTER,GOLD

44008-0031-828

$621.76

44013

PIPE-FORK INNER,LH

44013-0075

$593.73

44013A

PIPE-FORK INNER,RH

44013-0076

$593.73

44023

CYLINDER-SET-FORK,SILVER

44023-0055-KX

$562.43

44026

SPRING-FRONT FORK,K=4.3N/MM

44026-0104

$88.39

44026A

SPRING-FRONT FORK,K=4.4N/MM

44026-0113

$88.39

44026B

SPRING-FRONT FORK,K=4.5N/MM

44026-0114

$88.39

44037

HOLDER-FORK UNDER,P.SILVER

44037-0080-458

$563.11

44039

HOLDER-FORK UPPER,P.SILVER

44039-0054-458

$246.87

44065

BUSHING-FRONT FORK

44065-0006

$19.09

44065A

BUSHING-FRONT FORK

44065-1140

$21.13

44071

DAMPER-ASSY,FORK,LH,GOLD/SIL

44071-0722-48R

$1,569.97

44071A

DAMPER-ASSY,FORK,RH,GOLD/SIL

44071-0723-48R

$1,569.97

46102

ROD,PISTON

46102-0096

$401.92

49116

VALVE-ASSY

49116-0015

$197.51

55010

GUARD-ASSY,FORK,RH,EBONY

55010-0001-6C

$56.16

55020

GUARD,FORK,LH,EBONY

55020-0172-6C

$56.16

92009

SCREW

92009-1884

$7.71

92026

SPACER

92026-0097

$29.10

92033

RING-SNAP

92033-0049

$4.61

92033A

RING-SNAP

92033-1329

$6.89

92049

SEAL-OIL

92049-0056

$22.01

92055

RING-O

92055-0104

$5.65

92055A

RING-O

92055-0105

$5.65

92055B

RING-O

92055-0106

$5.65

92055C

RING-O

92055-0116

$5.65

92055D

RING-O

92055-0117

$5.65

92055E

RING-O

92055-1156

$1.42

92055F

RING-O,2.8X6.6X1.9

92055-1441

$4.33

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

92093

SEAL,FORK OUTER TUBE

92093-1566

$20.74

92150

BOLT,6X14

92150-1340

$5.07

92150A

BOLT,5X16

92150-1802

$5.00

92152

COLLAR

92152-0824

$7.24

92153

BOLT,8X40

92153-0020

$5.59

92171

CLAMP

92171-0819

$16.97

92171A

CLAMP

92171-0820

$7.75

92171B

CLAMP

92171-1615

$11.93

92200

WASHER

92200-0532

$5.29

92210

NUT

92210-0337

$23.02
