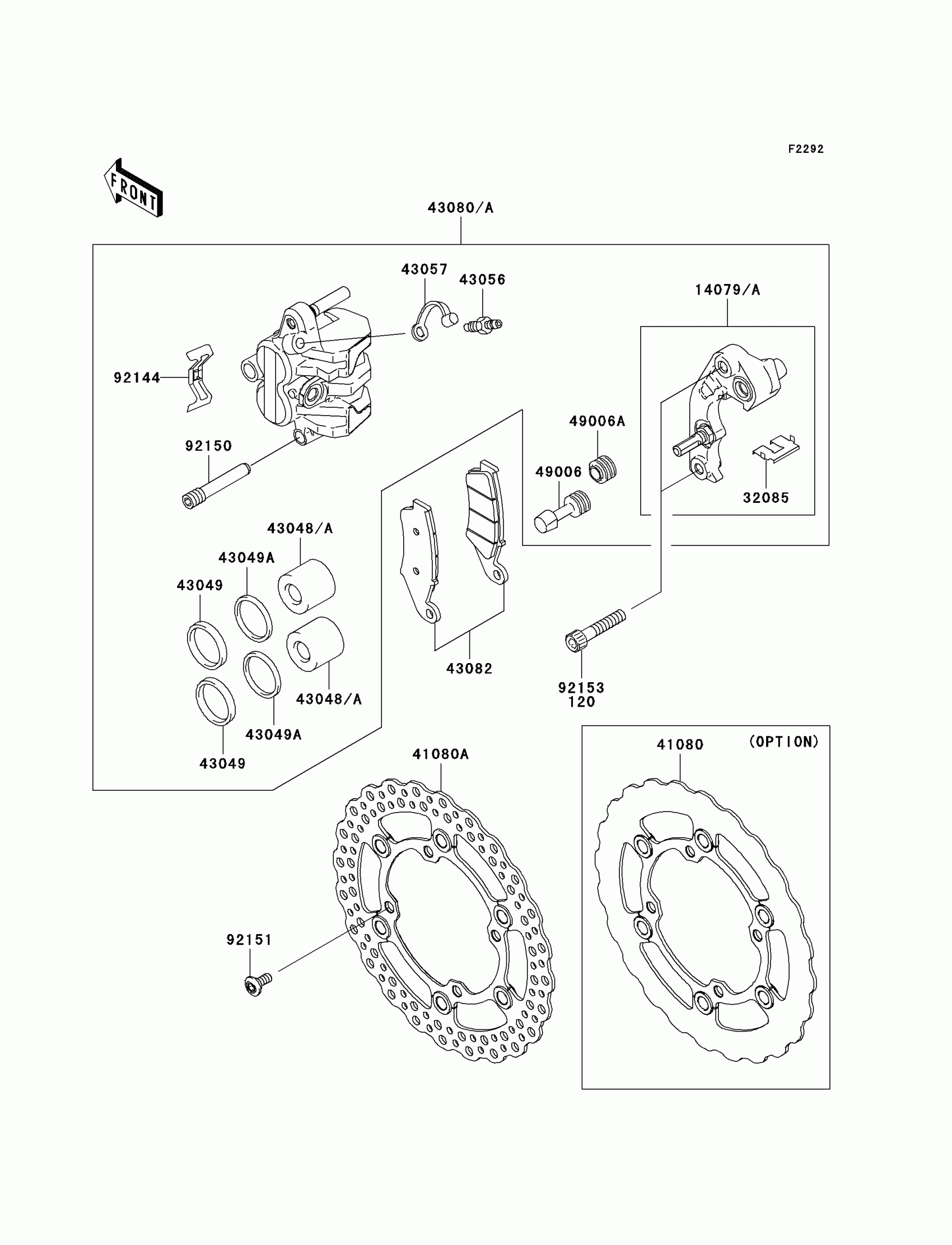

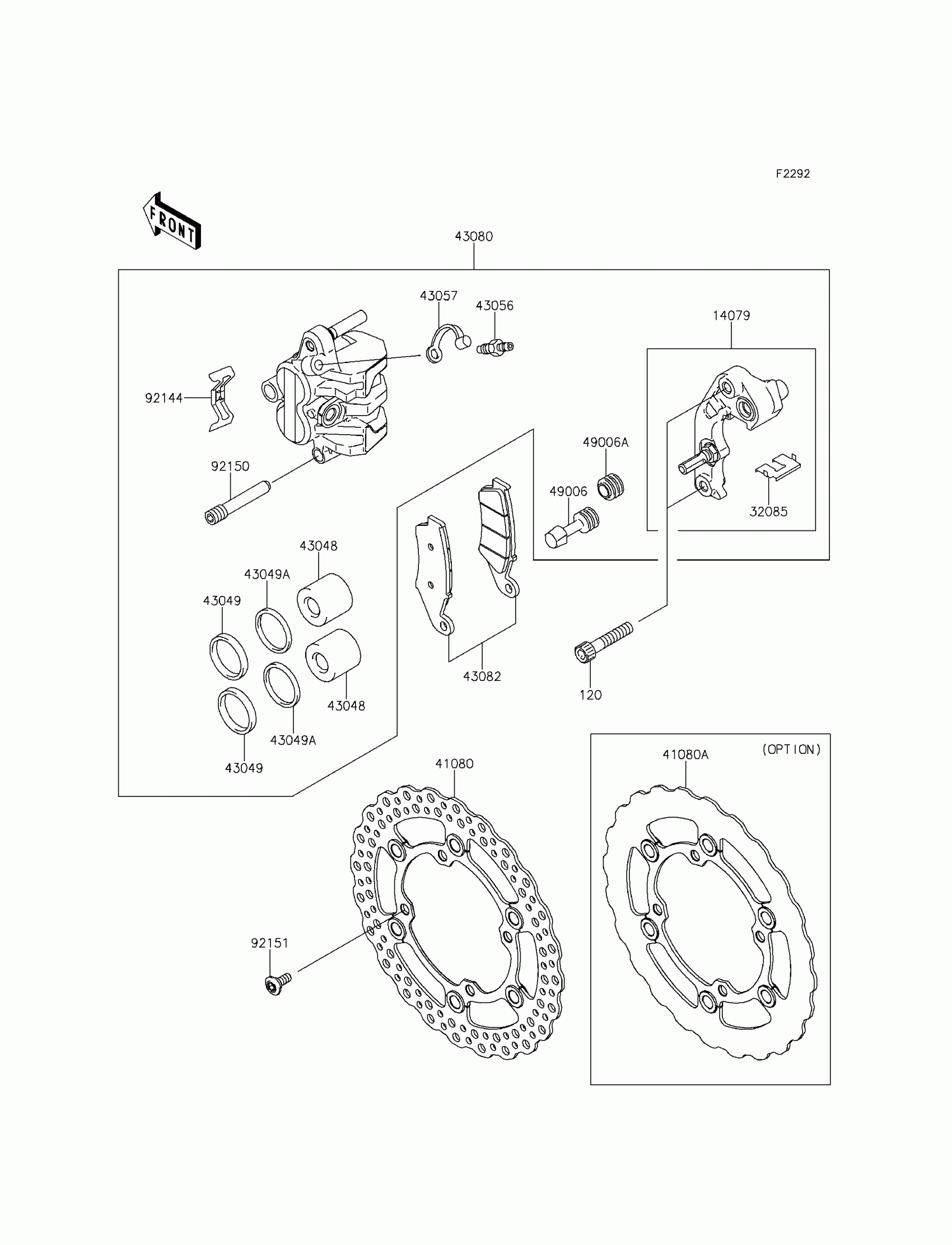

Kawasaki KLX450R (Australian) Front Brake Diagram

Description

Price

120

BOLT-SOCKET,8X40

120CA0840

$2.80

14079

HOLDER-ASSY,FRONT CALIPER

14079-0043

$156.82

32085

STOPPER,PAD

32085-1361

$7.98

41080

DISC,FR

41080-0082

$294.35

41080A

DISC,FR

41080-0090

Unavailable

43048

PISTON-CALIPER

43048-1093

Unavailable

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR

43080-0081

$278.41

43082

PAD-ASSY-BRAKE

43082-1266

$50.89

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92144

SPRING,PAD

92144-1721

$9.82

92150

BOLT,HANGER

92150-1691

$11.99

92151

BOLT,DISC PLATE,6MM

92151-1799

$4.13
