Frame Fittings

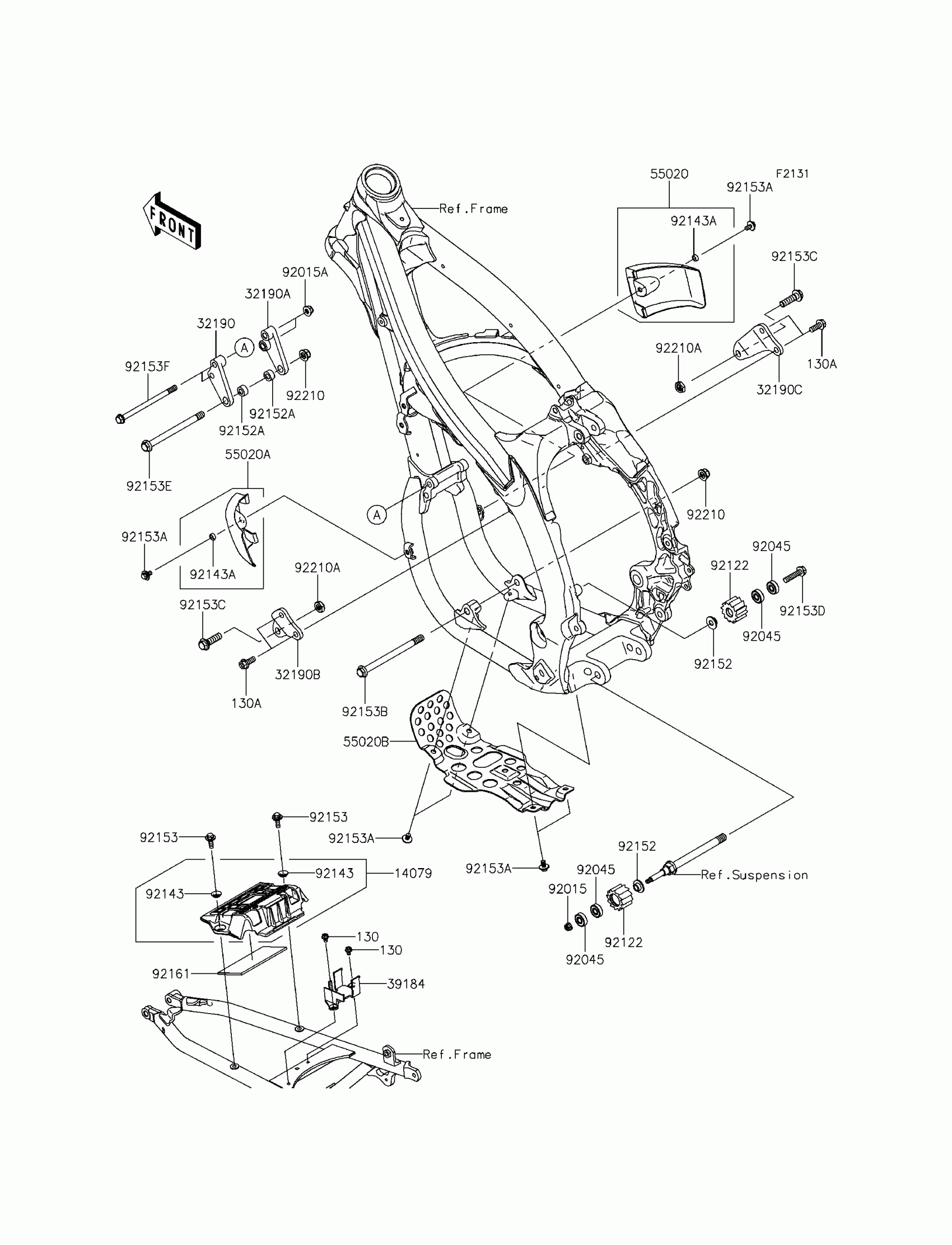

Kawasaki KLX450R (Australian) Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,5X10
130BA0510
$1.71
130A
BOLT-FLANGED,8X18
130CA0818
$2.55
14079
HOLDER-ASSY,BATTERY
14079-0026
$37.51
32190
BRACKET-ENGINE,FR
32190-0330
$48.51
32190A
BRACKET-ENGINE,FR
32190-0331
$48.51
32190B
BRACKET-ENGINE,UPP,LH
32190-0351
$29.59
32190C
BRACKET-ENGINE,UPP,RH
32190-0352
$29.59
39184
BRACKET-ASSY,SWITCH&RELAY
39184-0008
$16.97
55020
GUARD,ENGINE,RH,EBONY
55020-0179-6C
$29.36
55020A
GUARD,ENGINE,LH,EBONY
55020-0313-6C
$29.36
55020B
GUARD,SKID
55020-0369
$39.85
92015
NUT,LOCK,FLANGED,6MM
92015-1339
$1.35
92015A
NUT,8MM
92015-1432
$6.57
92045
BEARING-BALL,608LLU/2A
92045-0060
$32.61
92122
ROLLER,CHAIN GUIDE
92122-0016
$18.57
92143
COLLAR
92143-1196
$4.69
92143A
COLLAR
92143-1307
$3.94
92152
COLLAR
92152-0459
$26.30
92152A
COLLAR,10.2X20X10
92152-0595
$3.90
92153
BOLT,6X20
92153-0502
$2.80
92153A
BOLT,6X12
92153-0503
$2.80
92153B
BOLT,FLANGED,10X137
92153-0704
$11.53
92153C
BOLT,FLANGED,10X35
92153-0802
$5.57
92153D
BOLT,FLANGED,8X35
92153-1652
$4.65
92153E
BOLT,FLANGED,10X128
92153-1869
$19.01
92153F
BOLT,FLANGED,8X126
92153-1870
$11.93
92161
DAMPER
92161-0456
$5.65
92210
NUT,LOCK,FLANGED,10MM
92210-1080
$10.28
92210A
NUT,LOCK,10MM
92210-1184
$6.11
