Description

Price

130

BOLT-FLANGED,5X12

130BA0512

$2.22

11011

CASE-AIR FILTER,F.BLACK

11011-0106-6Z

$121.74

11013

ELEMENT-AIR FILTER

11013-0019

$73.56

11054

BRACKET,A/C BOX

11054-1100

$31.86

13091

HOLDER

13091-1908

$8.01

13271

PLATE,DUCT FITTING

13271-0730

$25.22

13280

HOLDER,DUCT

13280-0217

$60.24

13280A

HOLDER,ELEMENT

13280-0218

$47.22

14020

RETAINER

14020-0007

$2.41

14073

DUCT,FUNNEL

14073-0176

$66.09

14091

COVER,F.BLACK

14091-0710-6Z

$30.46

14091A

COVER,LH,BLACK/WHITE

14091-0862-17Y

$34.51

32099

CASE,F.BLACK

32099-0028-6Z

$16.97

49006

BOOT

49006-0061

$17.13

55020

GUARD

55020-0391

$26.24

59006

ARRESTER-FLAME

59006-0011

$61.13

92004

STUD

92004-0035

$38.06

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92093

SEAL,FR COVER

92093-0074

$13.48

92093A

SEAL,LH COVER

92093-0075

$20.04

92150

BOLT,FLANGED,6X16

92150-1506

$5.00

92153

BOLT,6X65

92153-1756

$8.68

92161

DAMPER

92161-0213

$30.75

92161A

DAMPER

92161-0350

$6.75

92170

CLAMP

92170-1938

$3.74

92171

CLAMP,DUCT,62MM

92171-0651

$13.60

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

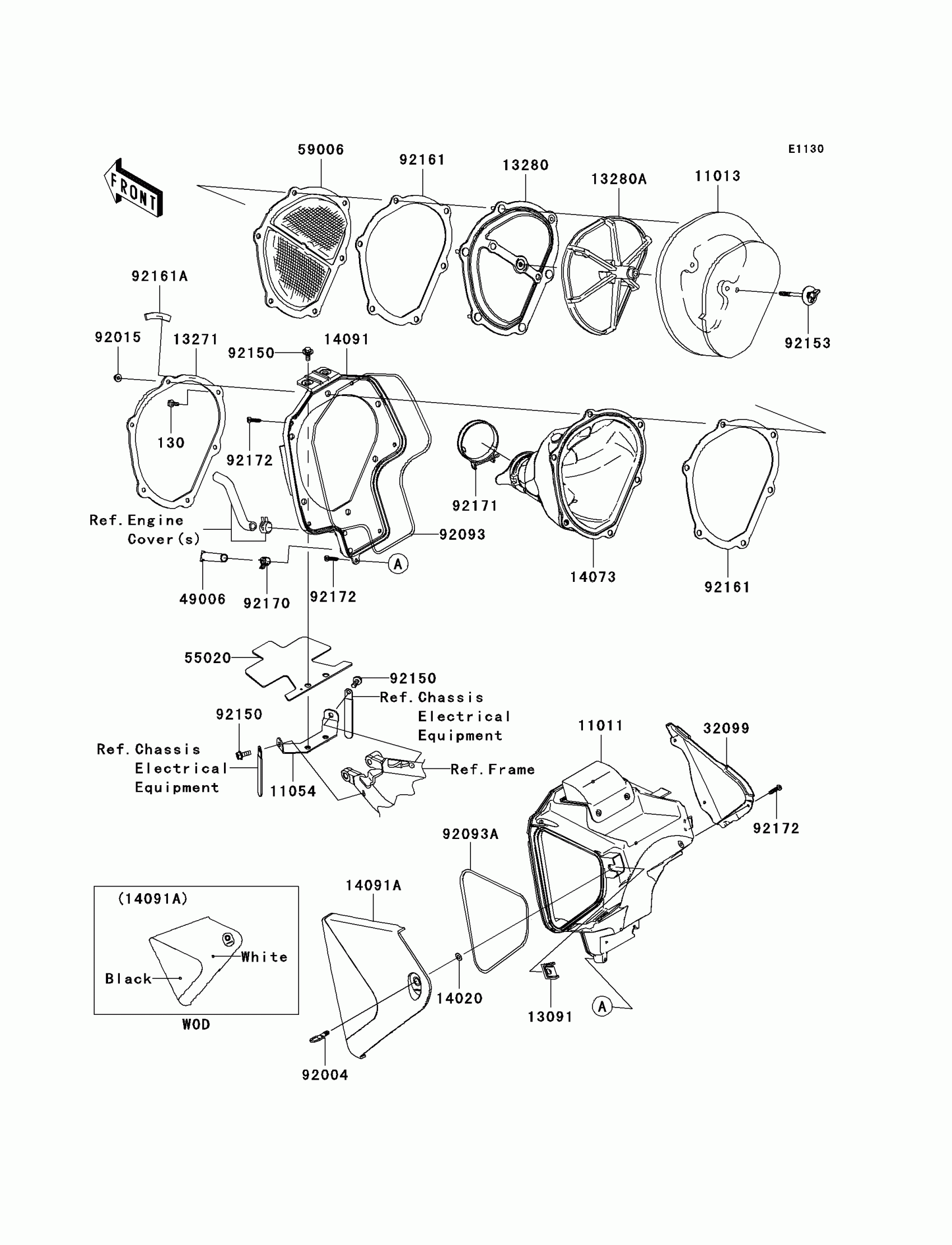

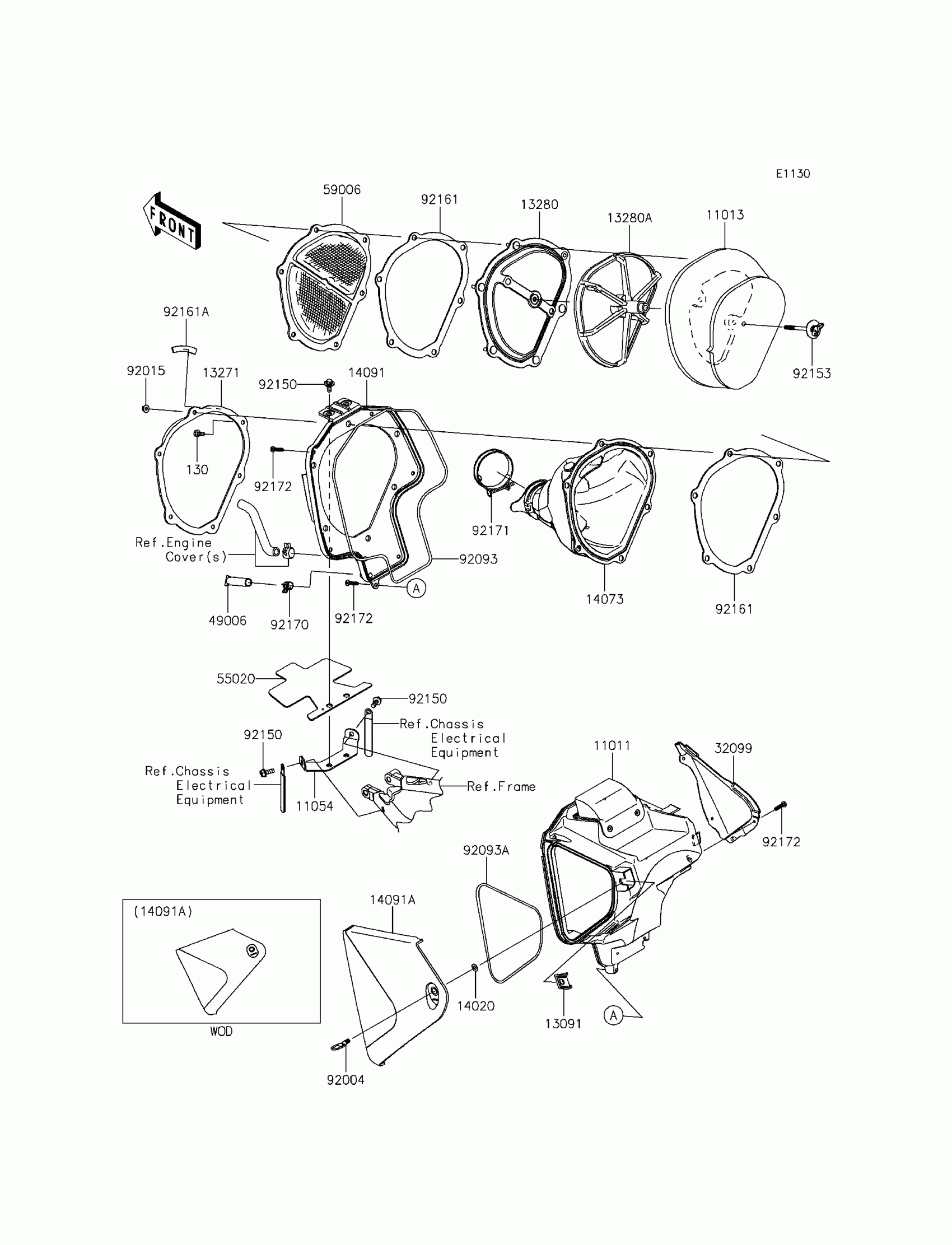

Kawasaki KLX450R (Australian) Air Cleaner Diagram

BOLT-FLANGED,5X12

CASE-AIR FILTER,F.BLACK

ELEMENT-AIR FILTER

BRACKET,A/C BOX

HOLDER

PLATE,DUCT FITTING

HOLDER,DUCT

HOLDER,ELEMENT

RETAINER

DUCT,FUNNEL

COVER,F.BLACK

COVER,LH,BLACK/WHITE

CASE,F.BLACK

BOOT

GUARD

ARRESTER-FLAME

STUD

NUT,FLANGED,5MM

SEAL,FR COVER

SEAL,LH COVER

BOLT,FLANGED,6X16

BOLT,6X65

DAMPER

DAMPER

CLAMP

CLAMP,DUCT,62MM

SCREW,TAPPING,5X20
