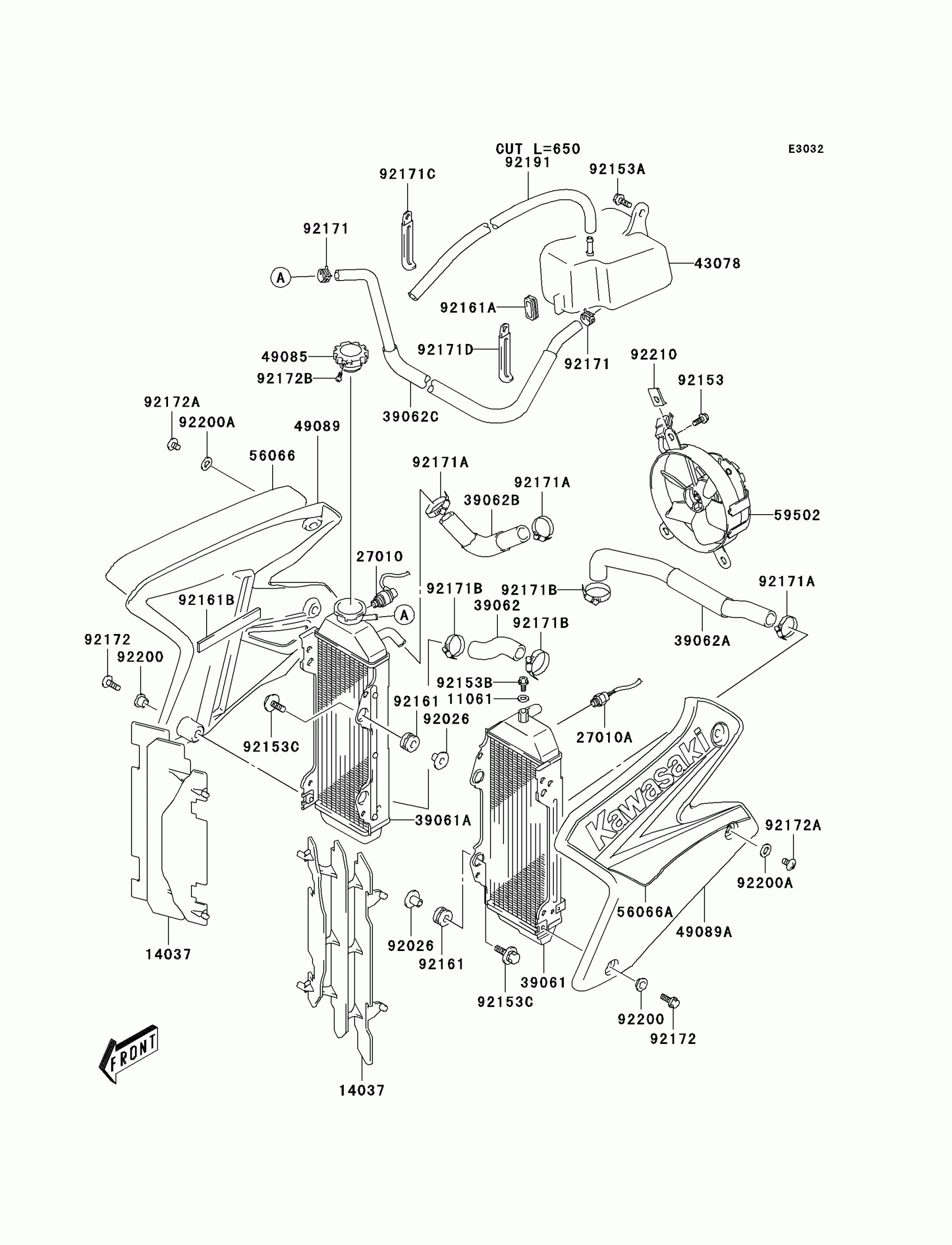

Kawasaki KLX400SR Radiator(KLX400-A1) Diagram
#
11061
GASKET,6.4X11.5X0.8
11061-S002
$4.20
14037
SCREEN
14037-S001
$22.22
27010
SWITCH,WATER TEMP
27010-S029
$96.31
27010A
SWITCH,FAN
27010-S030
$92.87
39061
RADIATOR-ASSY,LH
39061-S004
$435.78
39061A
RADIATOR-ASSY,RH
39061-S005
$476.34
39062
HOSE-COOLING,INLET
39062-S020
$14.42
39062A
HOSE-COOLING,OUTLET
39062-S021
$43.96
39062B
HOSE-COOLING,JOINT
39062-S022
$23.07
39062C
HOSE-COOLING,RESERVOIR TANK
39062-S023
$18.43
43078
RESERVOIR
43078-S006
$53.13
49085
CAP-ASSY-PRESSURE
49085-S003
$43.53
49089
SHROUD-ENGINE,RH,L.GREEN
49089-S003-535
$70.30
49089A
SHROUD-ENGINE,LH,L.GREEN
49089-S004-535
$70.30
56066
PATTERN,RH,WHT/GLD/BLK/GRN
56066-S014-553
$100.32
56066A
PATTERN,LH,WHT/GLD/BLK/GRN
56066-S015-553
$100.32
59502
FAN-ASSY
59502-S004
$372.26
92026
SPACER
92026-S123
$6.02
92153
BOLT
92153-S010
$1.92
92153A
BOLT
92153-S011
$1.92
92153B
BOLT,AIR VENT
92153-S055
$5.83
92153C
BOLT,6X25
92153-S105
$4.29
92161
DAMPER
92161-S114
$4.22
92161A
DAMPER,RESERVOIR TANK
92161-S115
$4.69
92161B
DAMPER,RADIATOR COVER
92161-S127
$8.47
92171
CLAMP
92171-S002
$2.20
92171A
CLAMP
92171-S008
$8.78
92171B
CLAMP,RADIATOR HOSE
92171-S088
$12.29
92171C
CLAMP,RESERVOIR HOSE
92171-S116
$2.97
92171D
CLAMP,L=45
92171-S132
$2.25
92172
SCREW
92172-S055
$1.92
92172A
SCREW,BRAKE DRUM COVER
92172-S160
$1.92
92172B
SCREW,RADIATOR CAP
92172-S195
$2.84
92191
TUBE,M.R.ORANGE
92191-S088-500
$23.95
92200
WASHER
92200-S078
$2.64
92200A
WASHER,6.5X14X1.6
92200-S184
$2.64
92210
NUT
92210-S013
$4.10
