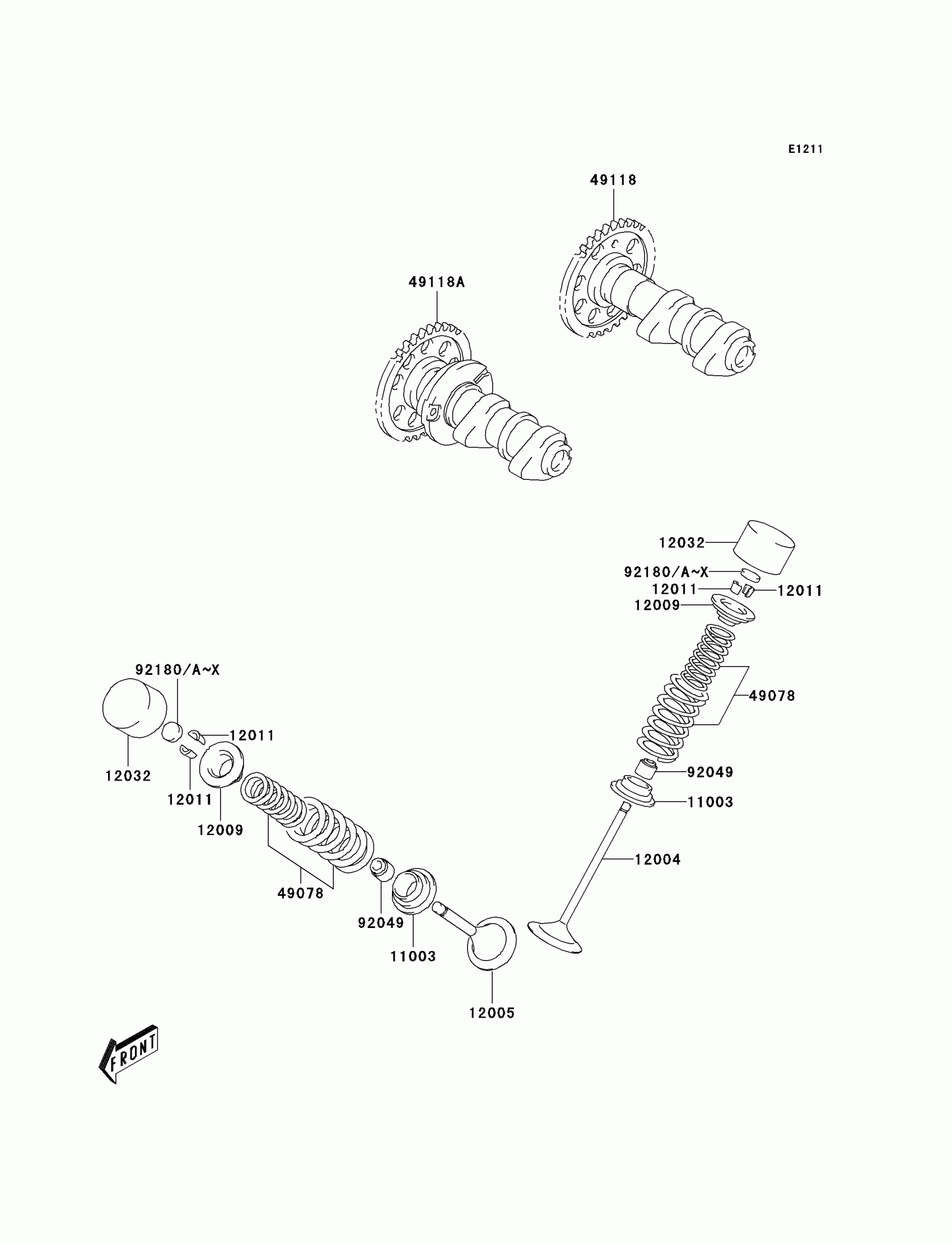

Kawasaki KLX400SR (Canada Only) Valve(s)/Camshaft(s) Diagram

#

Description
Price

11003

SEAT-VALVE

11003-S003

$6.91

12004

VALVE-INTAKE

12004-S004

$39.11

12005

VALVE-EXHAUST

12005-S004

$68.13

12009

RETAINER-VALVE SPRING

12009-S005

$16.01

12011

COLLET,VALVE

12011-S003

$2.53

12032

TAPPET

12032-S001

$71.72

49078

SPRING-ENGINE VALVE

49078-S005

$17.06

49118

CAMSHAFT-COMP,INTAKE

49118-S007

$228.61

49118A

CAMSHAFT-COMP,EXHAUST

49118-S008

Unavailable

92049

SEAL-OIL,OIL

92049-S006

$7.18

92180

SHIM,T=2.30

92180-S018

$10.20

92180A

SHIM,T=2.35

92180-S019

$10.13

92180B

SHIM,T=2.40

92180-S020

$10.13

92180C

SHIM,T=2.45

92180-S021

$10.13

92180D

SHIM,T=2.50

92180-S022

$10.13

92180E

SHIM,T=2.55

92180-S023

$10.13

92180F

SHIM,T=2.60

92180-S024

$10.13

92180G

SHIM,T=2.65

92180-S025

$10.13

92180H

SHIM,T=2.70

92180-S026

$10.13

92180I

SHIM,T=2.75

92180-S027

$10.13

92180J

SHIM,T=2.80

92180-S028

$10.13

92180K

SHIM,T=2.85

92180-S029

$10.13

92180L

SHIM,T=2.90

92180-S030

$10.20

92180M

SHIM,T=2.95

92180-S031

$10.13

92180N

SHIM,T=3.00

92180-S032

$10.13

92180O

SHIM,T=3.05

92180-S033

$10.13

92180P

SHIM,T=3.10

92180-S034

$10.13

92180Q

SHIM,T=3.15

92180-S035

$10.20

92180R

SHIM,T=3.20

92180-S036

$10.13

92180S

SHIM,T=3.25

92180-S037

$10.20

92180T

SHIM,T=3.30

92180-S038

$10.13

92180U

SHIM,T=3.35

92180-S039

$10.13

92180V

SHIM,T=3.40

92180-S040

$10.13

92180W

SHIM,T=3.45

92180-S041

$10.13

92180X

SHIM,T=3.50

92180-S042

$10.13
