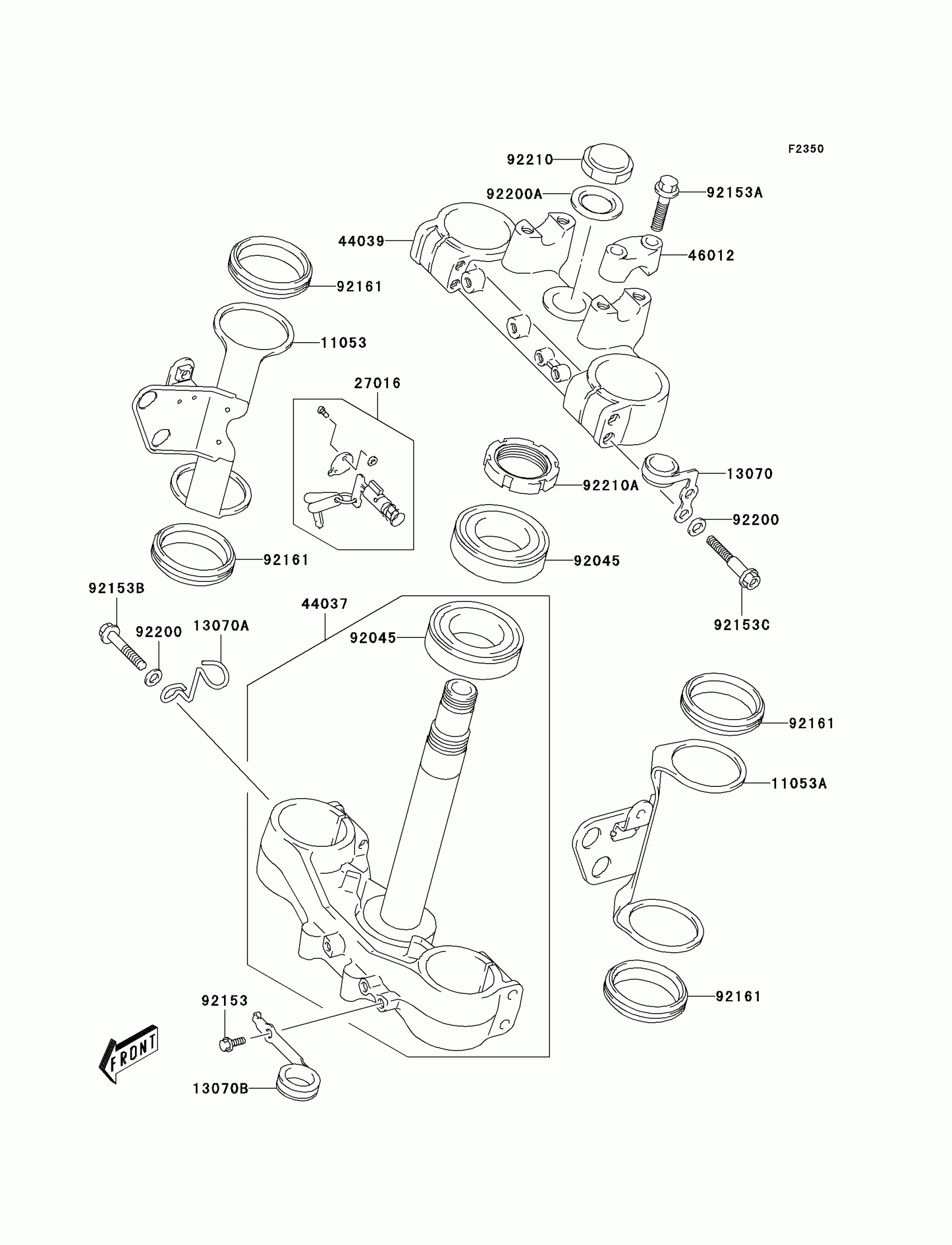

Kawasaki KLX400SR (Canada Only) Under Bracket Diagram

Description

Price

11053

BRACKET,HEADLAMP,RH

11053-S036

$53.45

11053A

BRACKET,HEADLAMP,LH

11053-S037

$53.45

13070

GUIDE,CABLE

13070-S018

$36.36

13070A

GUIDE,SPEEDOMETER CABLE

13070-S023

$11.08

13070B

GUIDE

13070-S024

$36.36

27016

LOCK-ASSY,STEERING

27016-S009

Unavailable

44037

HOLDER-FORK UNDER

44037-S005

$646.39

44039

HOLDER-FORK UPPER

44039-S004

$291.30

46012

HOLDER-HANDLE

46012-S006

$23.67

92045

BEARING-BALL,30X52X16

92045-S058

$69.54

92153

BOLT,6X10

92153-S331

$4.69

92153A

BOLT,8X35

92153-S351

$5.03

92153B

BOLT

92153-S352

$7.39

92153C

BOLT

92153-S353

$10.34

92161

DAMPER

92161-S141

$9.04

92200

WASHER

92200-S179

$4.12

92200A

WASHER

92200-S198

$17.79

92210

NUT

92210-S130

$65.73

92210A

NUT,STEERING

92210-S131

$27.67
