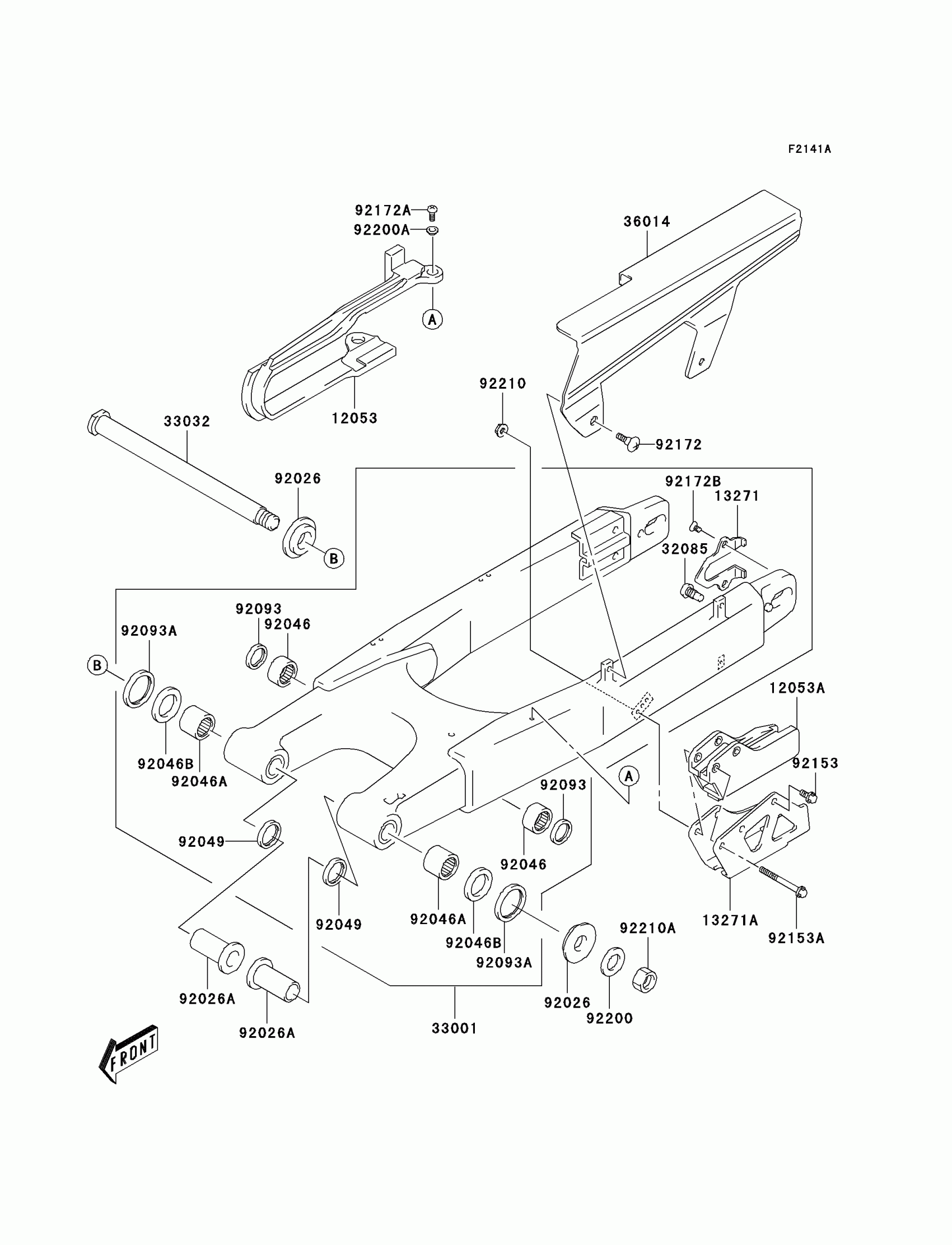

Kawasaki KLX400SR (Canada Only) Swingarm(KLX400-A2) Diagram

Description

Price

12053

GUIDE-CHAIN

12053-S020

$69.12

12053A

GUIDE-CHAIN

12053-S021

Unavailable

13271

PLATE

13271-S060

$18.69

13271A

PLATE,CHAIN GUIDE

13271-S063

Unavailable

32085

STOPPER,CHAIN ADJUSTER

32085-S016

$11.17

33001

ARM-COMP-SWING

33001-S011

$1,353.05

33032

SHAFT-SWING ARM

33032-S005

$70.24

36014

CASE-CHAIN

36014-S007

$79.56

92026

SPACER

92026-S121

$17.97

92026A

SPACER

92026-S130

$45.19

92046

BEARING-NEEDLE

92046-S018

$18.66

92046A

BEARING-NEEDLE,SWING ARM

92046-S019

$25.89

92046B

BEARING-NEEDLE,22X35X2

92046-S023

$21.21

92049

SEAL-OIL,SWING ARM

92049-S053

$5.30

92093

SEAL

92093-S041

$6.91

92093A

SEAL,29.2X37X4

92093-S045

$7.26

92153

BOLT

92153-S144

Unavailable

92153A

BOLT

92153-S335

$2.40

92172

SCREW,6X16

92172-S073

$2.76

92172A

SCREW

92172-S110

$1.92

92172B

SCREW,5X8

92172-S209

$2.64

92200

WASHER

92200-S030

$2.01

92200A

WASHER

92200-S200

$4.47

92210

NUT

92210-S054

$3.48

92210A

NUT

92210-S133

$14.16
