2004 Kawasaki KLX400SR (Canada Only) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

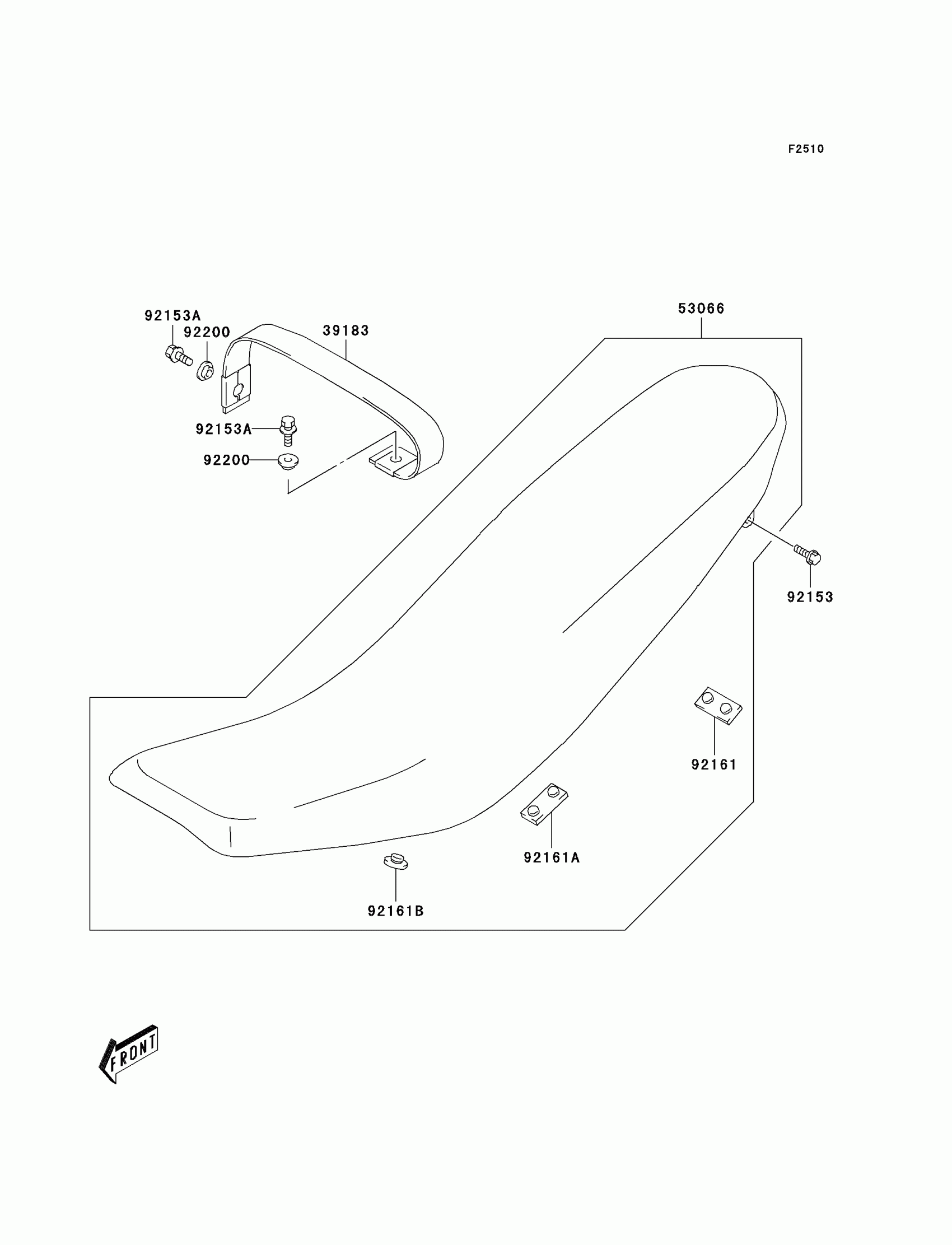

2004 Kawasaki KLX400SR (Canada Only) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39183

BAND-ASSY,SEAT,BLACK

39183-S002-534

1

$51.86

In stock

53066

SEAT-ASSY,BLACK/WHITE

53066-S013-549

1
Out of stock

92153

BOLT

92153-S013

1

$1.64

In stock

92153A

BOLT,SEAT BAND

92153-S349

1

$2.76

In stock

92161

DAMPER

92161-S138

1

$5.98

In stock

92161A

DAMPER

92161-S139

1

$4.76

In stock

92161B

DAMPER

92161-S140

1

$2.25

In stock

92200

WASHER

92200-S195

1
Out of stock
