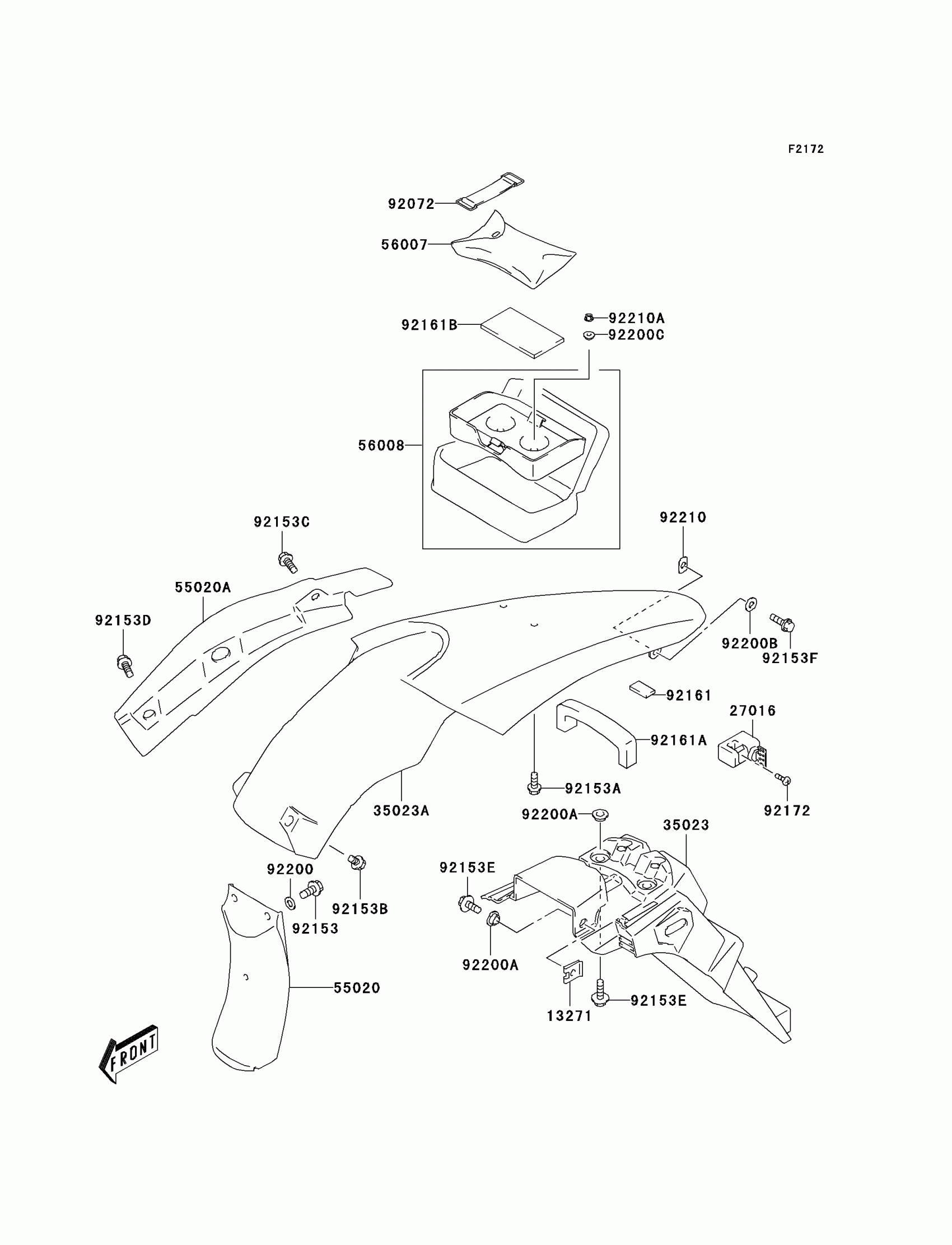

Kawasaki KLX400SR (Canada Only) Rear Fender(s) Diagram

Description

Price

13271

PLATE,FENDER FITTING

13271-S058

Unavailable

27016

LOCK-ASSY,HELMET

27016-S010

$96.68

35023

FENDER-REAR,INNER

35023-S011

$68.00

35023A

FENDER-REAR,L.GREEN

35023-S013-535

$89.27

55020

GUARD,REAR FENDER,FR

55020-S005

$22.76

55020A

GUARD,FENDER

55020-S029

$35.50

56007

TOOL-KIT

56007-S006

$71.52

56008

BAG,SEAT TAIL

56008-S003

Unavailable

92072

BAND,TOOL

92072-S009

$5.64

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S013

$1.92

92153B

BOLT,6X16

92153-S044

$3.45

92153C

BOLT

92153-S161

Unavailable

92153D

BOLT

92153-S196

$5.24

92153E

BOLT,REAR FENDER

92153-S347

$2.48

92153F

BOLT,REAR FENDER

92153-S348

$1.92

92161

DAMPER,170X95X3.0

92161-S014

$5.15

92161A

DAMPER

92161-S024

$6.92

92161B

DAMPER

92161-S123

$11.60

92172

SCREW,HELMET LOCK

92172-S207

$3.45

92200

WASHER

92200-S074

$2.34

92200A

WASHER,FRONT FENDER

92200-S174

Unavailable

92200B

WASHER

92200-S194

$2.40

92200C

WASHER

92200-S195

$4.56

92210

NUT,COWL

92210-S023

$5.03

92210A

NUT

92210-S129

$3.45
