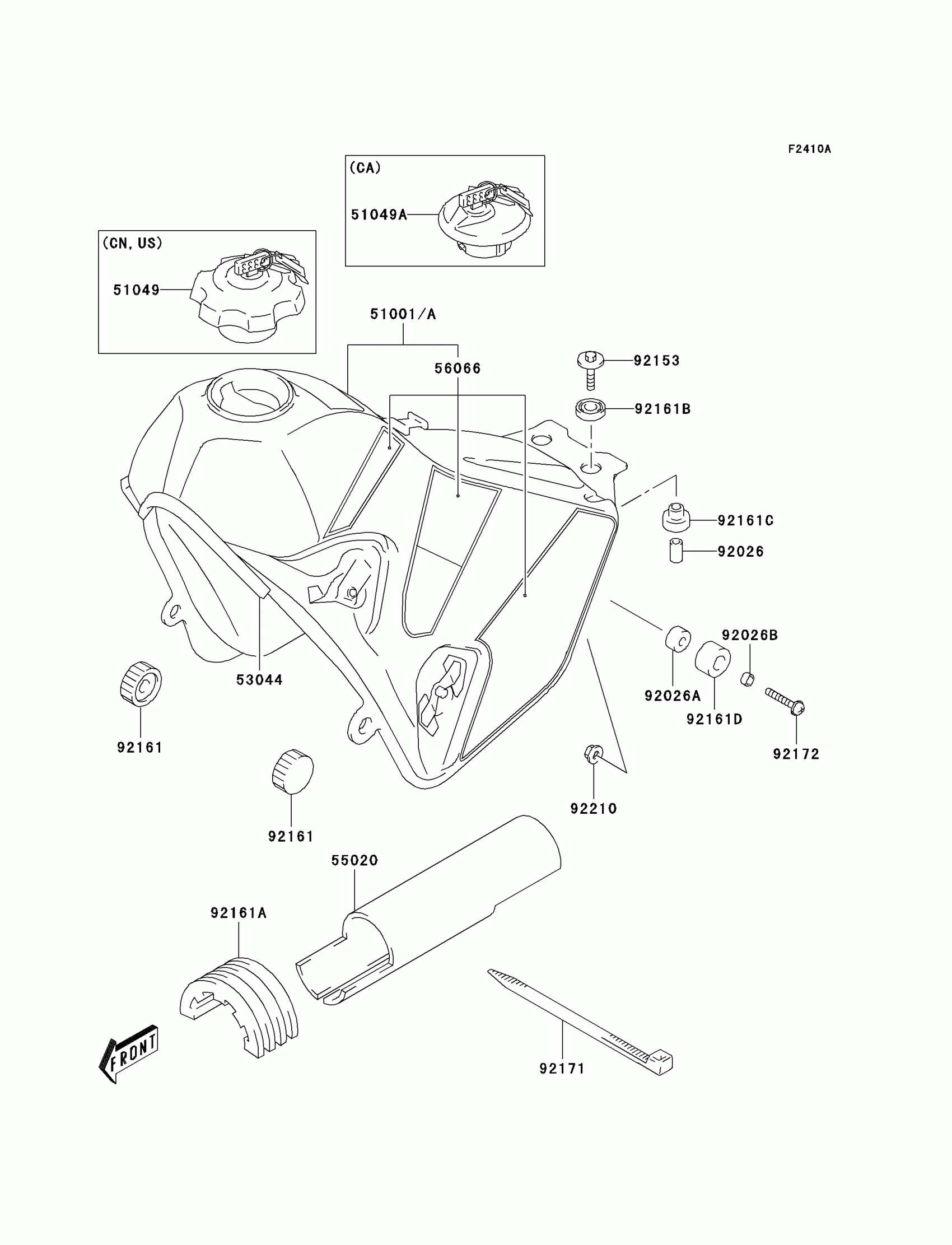

Kawasaki KLX400SR (Canada Only) Fuel Tank(KLX400-A2) Diagram

Description

Price

53044

TRIM,M.R.ORANGE

53044-S003-500

$32.97

55020

GUARD,FUEL TANK

55020-S027

$51.91

56066

PATTERN SET,FUEL TANK,WHT/BLK/GRN

56066-S023-568

$148.13

92026

SPACER,6.5X9X18

92026-S002

$2.53

92026A

SPACER,CHAIN BUFFER

92026-S004

$2.53

92026B

SPACER

92026-S126

$8.18

92153

BOLT

92153-S169

$3.45

92161

DAMPER,FUEL TANK,FR

92161-S130

$3.72

92161A

DAMPER,FUEL TANK,UPP

92161-S131

$32.87

92161B

DAMPER,FUEL TANK,RR,UPP

92161-S132

$4.54

92161C

DAMPER,FUEL TANK,RR,LOW

92161-S133

$3.14

92161D

DAMPER,FUEL TANK,SIDE

92161-S134

$6.29

92171

CLAMP,FUEL TANK CUSHION

92171-S056

$4.92

92172

SCREW

92172-S204

$2.92

92210

NUT

92210-S054

$3.48

51001

TANK-COMP-FUEL,BLACK

51001-S014-503

$809.97

51001A

TANK-COMP-FUEL,BLACK

51001-S016-503

$809.97

51049

CAP-TANK

51049-S010

$134.82

51049A

CAP-TANK

51049-S011

$105.84
