2004 Kawasaki KLX400SR (Canada Only) Fuel Filter Diagram

← All diagrams

Find the part on the Fuel Filter diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

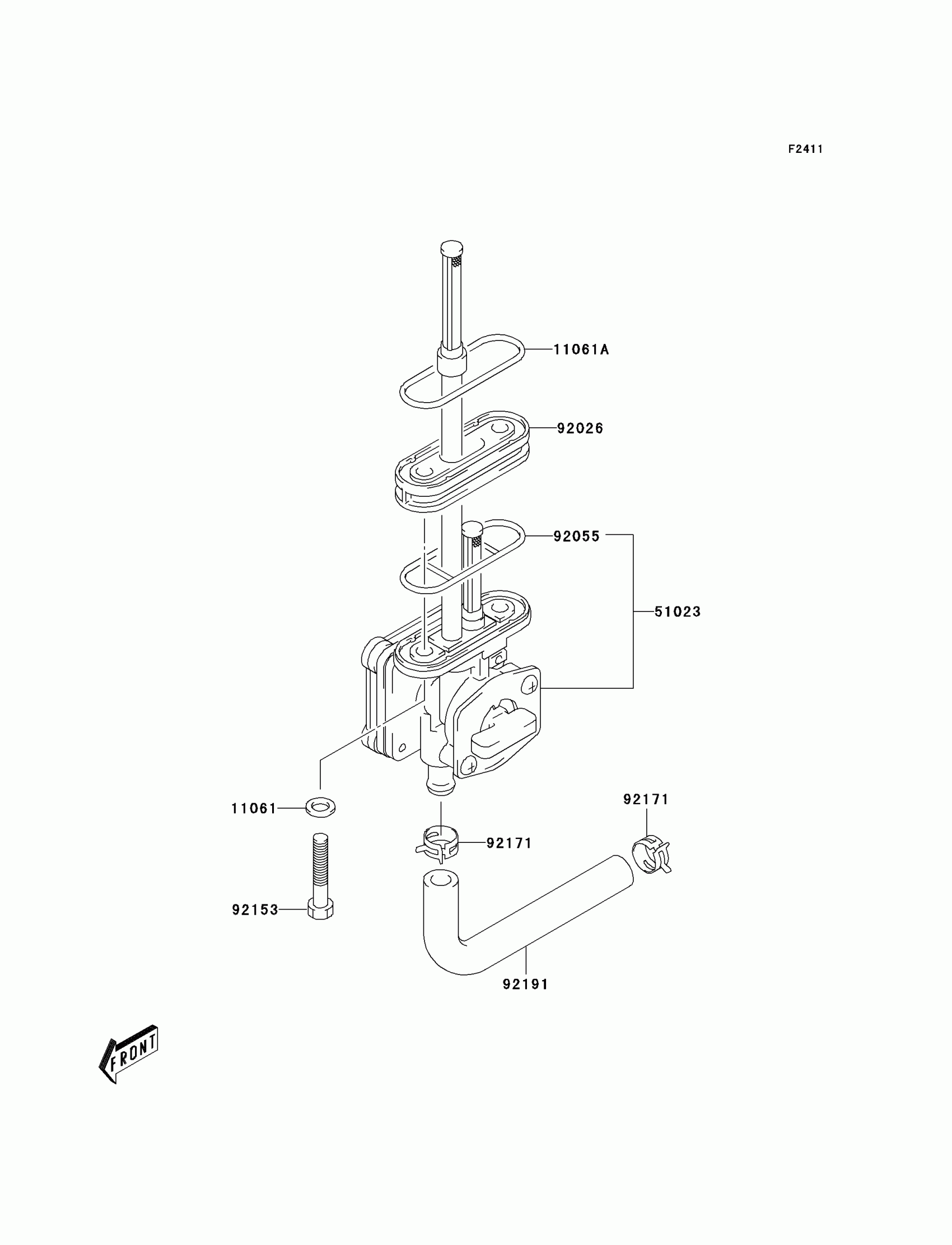

2004 Kawasaki KLX400SR (Canada Only) Fuel Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,6.4X11.5X0.8

11061-S002

1

$3.76

In stock

11061A

GASKET,FUEL COCK

11061-S082

1

$3.83

In stock

51023

TAP-ASSY

51023-S010

1

$110.50

In stock

92026

SPACER

92026-S120

1

$37.05

In stock

92055

RING-O,TAP

92055-S090

1

$8.86

In stock

92153

BOLT,FUEL COCK

92153-S344

1

$1.49

In stock

92171

CLAMP

92171-S005

1

$2.44

In stock

92191

TUBE,FUEL

92191-S075

1
Out of stock
