2004 Kawasaki KLX400SR (Canada Only) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2004 Kawasaki KLX400SR (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

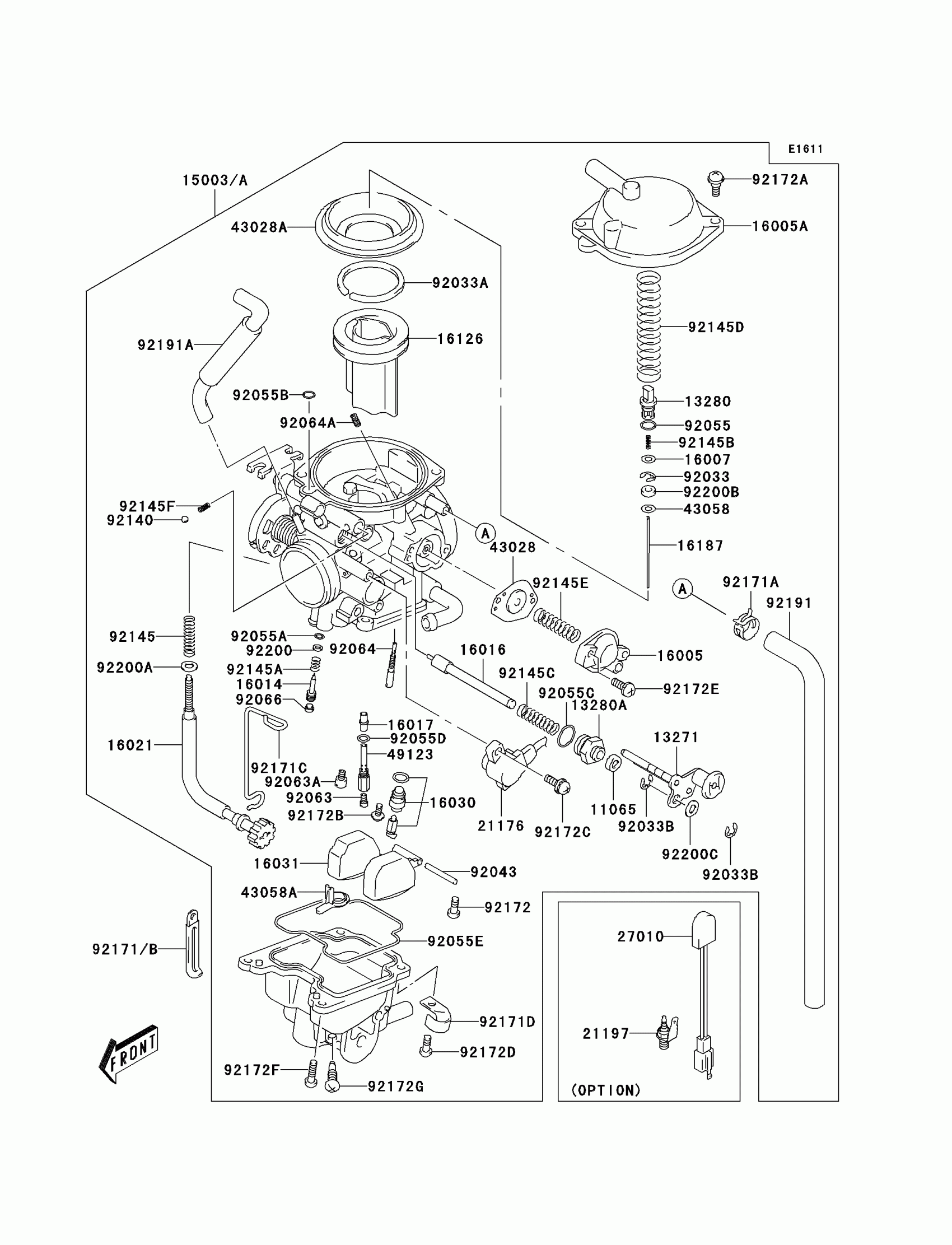

2004 Kawasaki KLX400SR (Canada Only) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-S031

1
Out of stock

13271

PLATE

13271-S056

1
Out of stock

13280

HOLDER

13280-S002

1
Out of stock

13280A

HOLDER

13280-S021

1
Out of stock

16005

TOP-CHAMBER

16005-S004

1
Out of stock

16005A

TOP-CHAMBER,DIAPHRAGM

16005-S007

1
Out of stock

16007

SEAT-SPRING

16007-S005

1
Out of stock

16014

SCREW-PILOT AIR

16014-S006

1
Out of stock

16016

PLUNGER

16016-S008

1
Out of stock

16017

JET-NEEDLE,P-0M

16017-S007

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-S006

1
Out of stock

16030

VALVE-FLOAT

16030-S008

1
Out of stock

16031

FLOAT

16031-S006

1
Out of stock

16126

VALVE

16126-S010

1
Out of stock

16187

NEEDLE-JET,5DH37-1

16187-S009

1
Out of stock

21176

SENSOR

21176-S001

1
Out of stock

21197

HEATER,CARBURETOR

21197-S003

1
Out of stock

27010

SWITCH,CARB HEATER

27010-S001

1
Out of stock

43028

DIAPHRAGM

43028-S008

1
Out of stock

43028A

DIAPHRAGM

43028-S011

1
Out of stock

43058

RING

43058-S001

1
Out of stock

43058A

RING

43058-S007

1
Out of stock

49123

HOLDER-MAIN JET

49123-S006

1
Out of stock

92033

RING-SNAP,MULTIPLE JET

92033-S008

1
Out of stock

92033A

RING-SNAP

92033-S041

1
Out of stock

92033B

RING-SNAP

92033-S046

1
Out of stock

92043

PIN

92043-S034

1
Out of stock

92055

RING-O,ID:4.8

92055-S003

1
Out of stock

92055A

RING-O

92055-S013

1
Out of stock

92055B

RING-O

92055-S044

1
Out of stock

92055C

RING-O

92055-S048

1
Out of stock

92055D

RING-O

92055-S049

1
Out of stock

92055E

RING-O

92055-S058

1
Out of stock

92063

JET-MAIN,#142.5

92063-S010

1
Out of stock

92063A

JET-MAIN,#62.5

92063-S011

1
Out of stock

92064

JET-PILOT,#22.5

92064-S008

1
Out of stock

92064A

JET-PILOT,#165

92064-S009

1
Out of stock

92066

PLUG

92066-S027

1
Out of stock

92140

BALL

92140-S005

1
Out of stock

92145

SPRING,THROTTLE SCREW

92145-S009

1
Out of stock

92145A

SPRING,THROTTLE SCREW

92145-S010

1
Out of stock

92145B

SPRING

92145-S097

1
Out of stock

92145C

SPRING

92145-S113

1
Out of stock

92145D

SPRING

92145-S125

1
Out of stock

92145E

SPRING

92145-S126

1
Out of stock

92145F

SPRING

92145-S127

1
Out of stock

92171

CLAMP,L=80

92171-S012

1
Out of stock

92171A

CLAMP

92171-S019

1
Out of stock

92171B

CLAMP,WIRING HARNESS

92171-S081

1
Out of stock

92171C

CLAMP

92171-S110

1
Out of stock

92171D

CLAMP

92171-S111

1
Out of stock

92172

SCREW

92172-S002

1
Out of stock

92172A

SCREW

92172-S047

1
Out of stock

92172B

SCREW

92172-S048

1
Out of stock

92172C

SCREW

92172-S049

1
Out of stock

92172D

SCREW

92172-S057

1
Out of stock

92172E

SCREW

92172-S139

1
Out of stock

92172F

SCREW

92172-S145

1
Out of stock

92172G

SCREW

92172-S199

1
Out of stock

92191

TUBE,AIR VENT

92191-S069

1
Out of stock

92191A

TUBE,4.5X8X400

92191-S076

1
Out of stock

92200

WASHER

92200-S019

1
Out of stock

92200A

WASHER

92200-S021

1
Out of stock

92200B

WASHER

92200-S083

1
Out of stock

92200C

WASHER

92200-S181

1
Out of stock

15003

CARBURETOR-ASSY

15003-S010

1
Out of stock

15003A

CARBURETOR-ASSY

15003-S013

1
Out of stock
