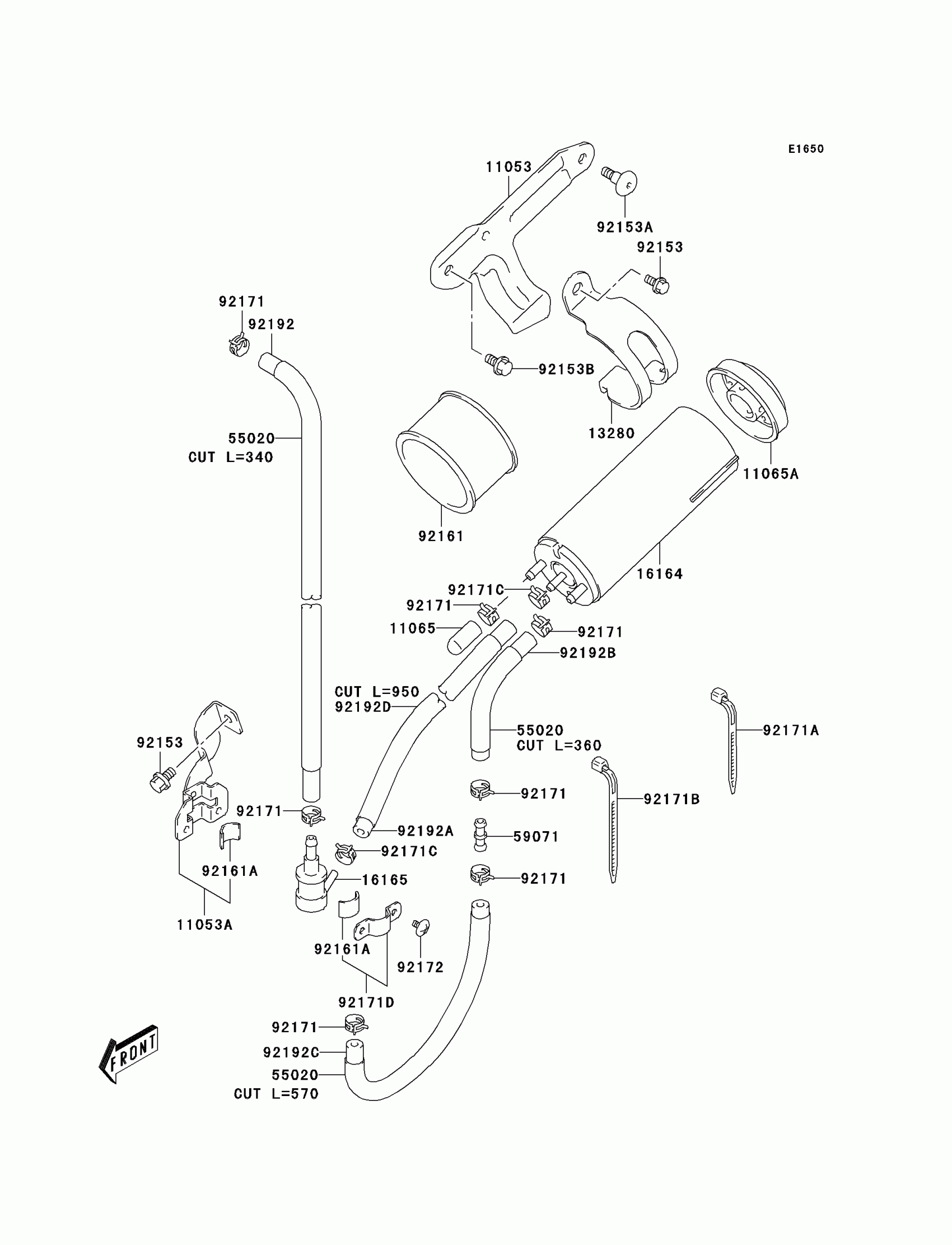

Kawasaki KLX400SR (Canada Only) Fuel Evaporative System(CA) Diagram

Description

Price

11053

BRACKET,CANISTER

11053-S046

$26.44

11053A

BRACKET,SEPARATOR

11053-S047

$30.37

11065

CAP,CANISTER

11065-S061

$2.53

11065A

CAP,CANISTER

11065-S062

$19.47

13280

HOLDER,CANISTER

13280-S034

$15.48

16164

CANISTER

16164-S001

$270.28

16165

SEPARATOR

16165-S012

$54.71

55020

GUARD,FUEL HOSE

55020-S008

$11.55

59071

JOINT

59071-S008

$5.01

92153

BOLT

92153-S011

$1.92

92153A

BOLT,6X16

92153-S048

$3.45

92153B

BOLT

92153-S108

$2.40

92161

DAMPER,CANISTER

92161-S150

$13.85

92161A

DAMPER,SEPARATOR

92161-S151

$1.92

92171

CLAMP

92171-S005

$3.01

92171A

CLAMP,L=125

92171-S014

$2.90

92171B

CLAMP,L=145

92171-S015

$3.64

92171C

CLAMP

92171-S086

$2.76

92171D

CLAMP,SEPARATOR

92171-S131

$4.21

92172

SCREW

92172-S228

$1.63

92192

TUBE,TANK-SEPARATOR

92192-S001

$21.07

92192A

TUBE,VALVE-CANISTER

92192-S002

$39.64

92192B

TUBE,CANISTER-CARB,RR

92192-S003

$41.27

92192C

TUBE,CANISTER-CARB,FR

92192-S004

$26.44

92192D

TUBE,M.R.ORANGE

92192-S005-500

$27.05
