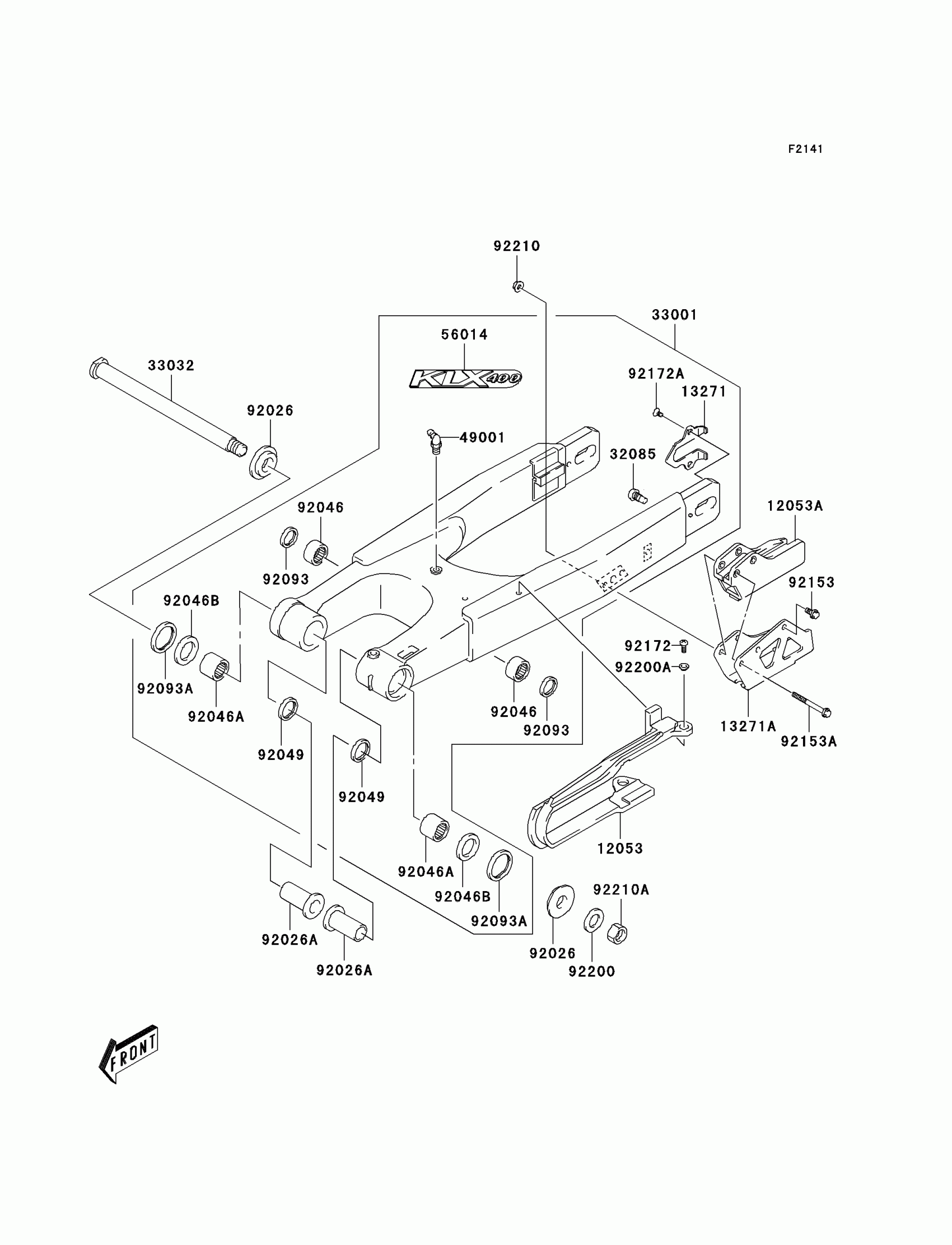

Kawasaki KLX400R Swingarm(KLX400-B1) Diagram
#
Description
Price
12053
GUIDE-CHAIN
12053-S020
$69.12
12053A
GUIDE-CHAIN
12053-S021
Unavailable
13271
PLATE
13271-S060
$18.69
13271A
PLATE,CHAIN GUIDE
13271-S063
Unavailable
32085
STOPPER,CHAIN ADJUSTER
32085-S016
$11.17
33001
ARM-COMP-SWING
33001-S009
$1,053.67
33032
SHAFT-SWING ARM
33032-S005
$70.24
49001
NIPPLE-GREASE
49001-S003
Unavailable
56014
EMBLEM,SWGARM,BLACK/GOLD
56014-S022-566
$27.67
92026
SPACER
92026-S121
$17.97
92026A
SPACER
92026-S130
$45.19
92046
BEARING-NEEDLE
92046-S018
$18.66
92046A
BEARING-NEEDLE,SWING ARM
92046-S019
$25.89
92046B
BEARING-NEEDLE,22X35X2
92046-S023
$21.21
92049
SEAL-OIL,SWING ARM
92049-S053
$5.30
92093
SEAL
92093-S041
$6.91
92093A
SEAL,29.2X37X4
92093-S045
$7.26
92153
BOLT
92153-S144
Unavailable
92153A
BOLT
92153-S335
$2.40
92172
SCREW
92172-S110
$1.92
92172A
SCREW,5X8
92172-S209
$2.64
92200
WASHER
92200-S030
$2.01
92200A
WASHER
92200-S200
$4.47
92210
NUT
92210-S054
$3.48
92210A
NUT
92210-S133
$14.16
