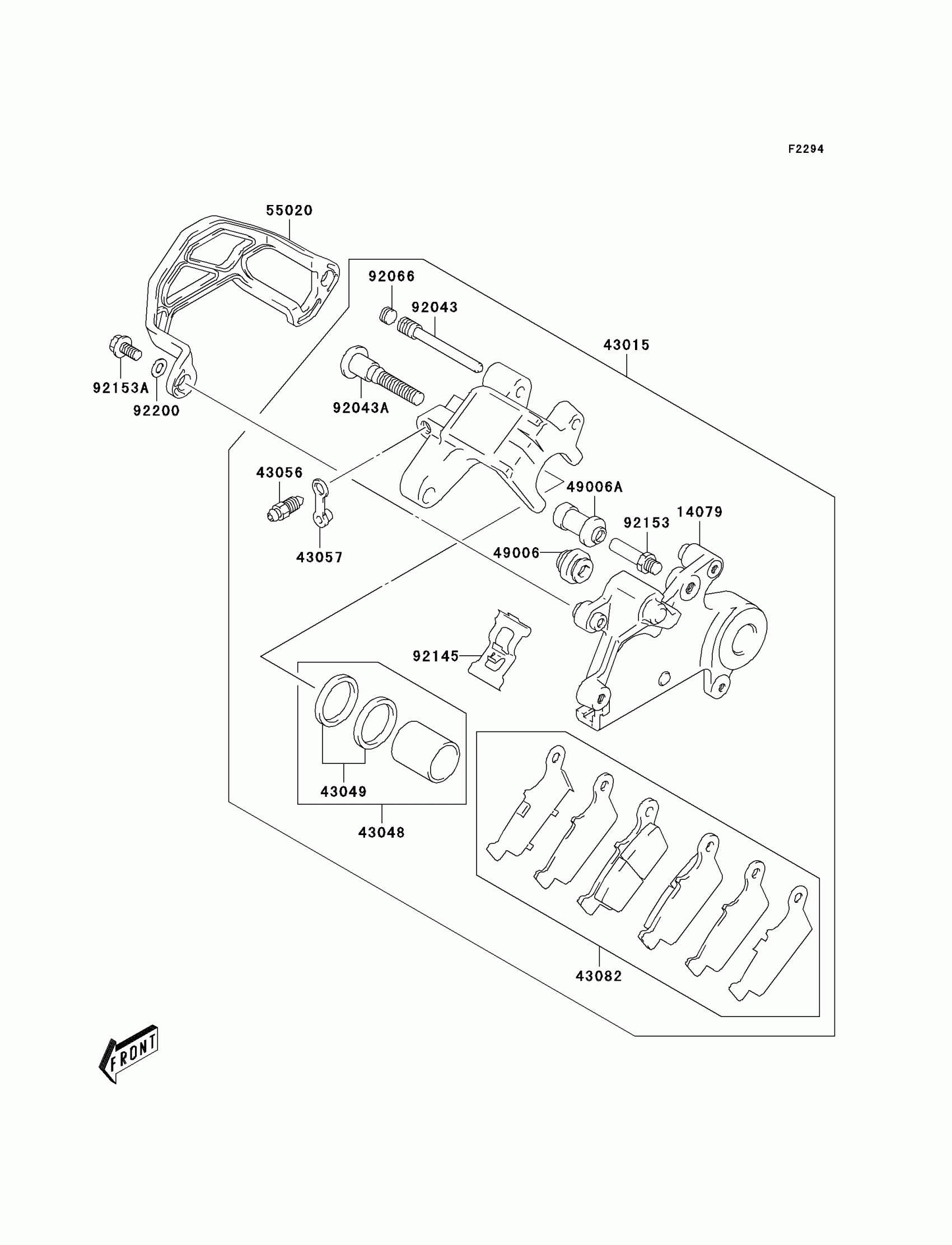

Kawasaki KLX400R Rear Brake(KLX400-B1) Diagram

#

Description
Price

14079

HOLDER-ASSY

14079-S003

$126.51

43015

CALIPER-ASSY,RR

43015-S013

Unavailable

43048

PISTON-CALIPER

43048-S007

$37.31

43049

PACKING

43049-S013

$11.59

43056

BREATHER-BRAKE

43056-S002

$9.05

43057

CAP-BREATHER,BLEEDER

43057-S002

$5.69

43082

PAD-ASSY-BRAKE

43082-S012

$68.45

49006

BOOT

49006-S006

$6.22

49006A

BOOT

49006-S007

$9.12

55020

GUARD,CALIPER

55020-S031

$20.15

92043

PIN

92043-S051

$11.71

92043A

PIN

92043-S053

$19.90

92066

PLUG

92066-S037

$6.03

92145

SPRING,PAD

92145-S136

$10.90

92153

BOLT

92153-S118

$8.17

92153A

BOLT

92153-S144

Unavailable

92200

WASHER

92200-S003

$1.42
