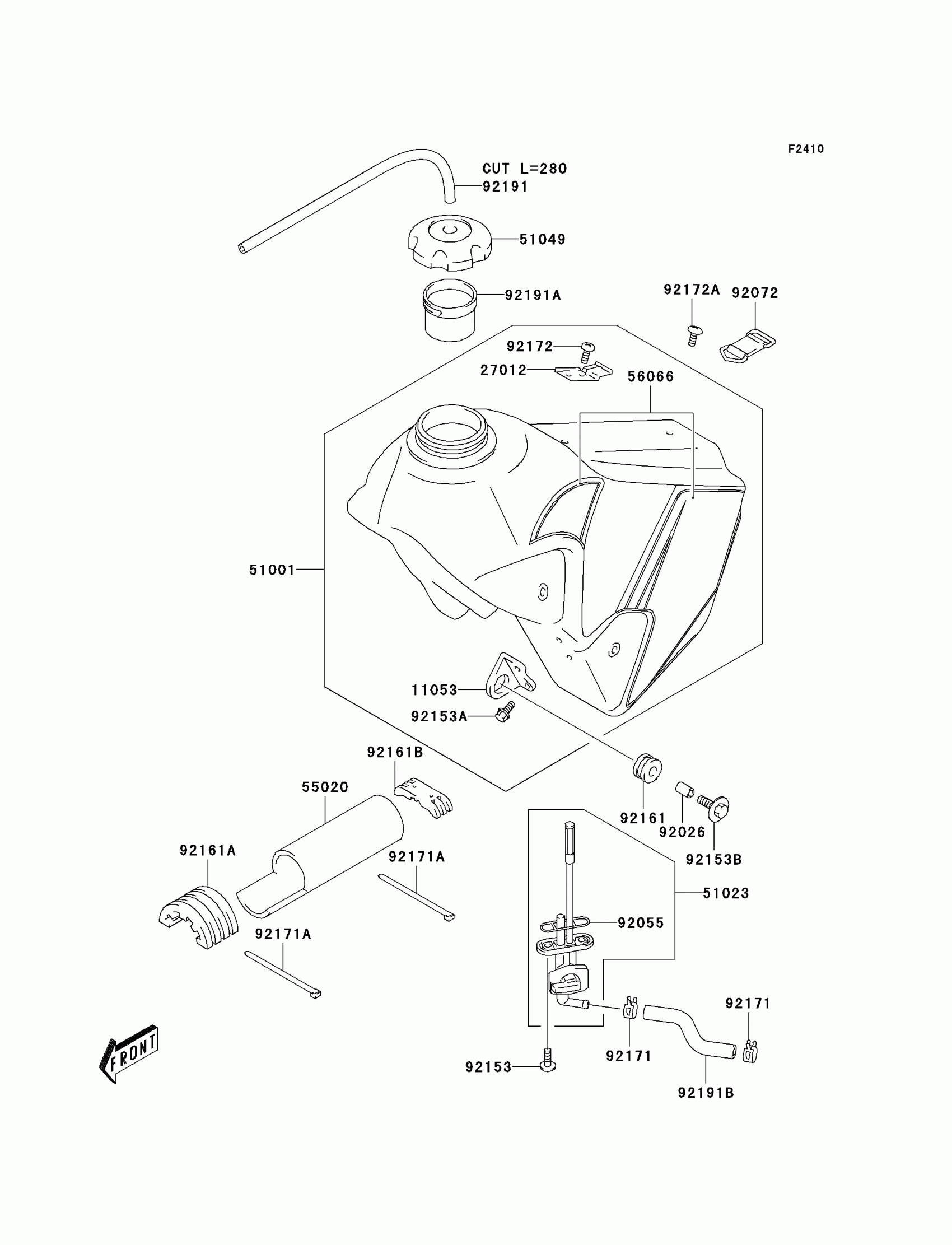

Kawasaki KLX400R Fuel Tank(KLX400-B1) Diagram

Description

Price

11053

BRACKET,FUEL TANK,FR

11053-S001

$12.34

27012

HOOK

27012-S004

$13.92

51001

TANK-COMP-FUEL,BLACK

51001-S012-539

$931.01

51023

TAP-ASSY

51023-S011

$107.77

51049

CAP-TANK

51049-S004

$45.12

55020

GUARD,FUEL TANK

55020-S027

$52.91

56066

PATTERN SET,FUEL TANK,WHT/BLK/GRN

56066-S017-568

$247.04

92026

SPACER,FUEL TANK,FR

92026-S049

Unavailable

92055

RING-O,TAP

92055-S090

$8.86

92072

BAND,FUEL TANK,RR

92072-S004

$14.47

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S144

Unavailable

92153B

BOLT

92153-S367

$3.76

92161

DAMPER,FUEL TANK

92161-S061

$5.63

92161A

DAMPER,FUEL TANK,UPP

92161-S131

$33.49

92161B

DAMPER

92161-S146

$16.29

92171

CLAMP

92171-S005

$2.44

92171A

CLAMP,FUEL TANK CUSHION

92171-S056

$4.34

92172

SCREW

92172-S017

Unavailable

92172A

SCREW

92172-S055

$1.64

92191

TUBE,FUEL TANK BREATHER

92191-S028

$7.30

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.00

92191B

TUBE

92191-S087

$12.71
