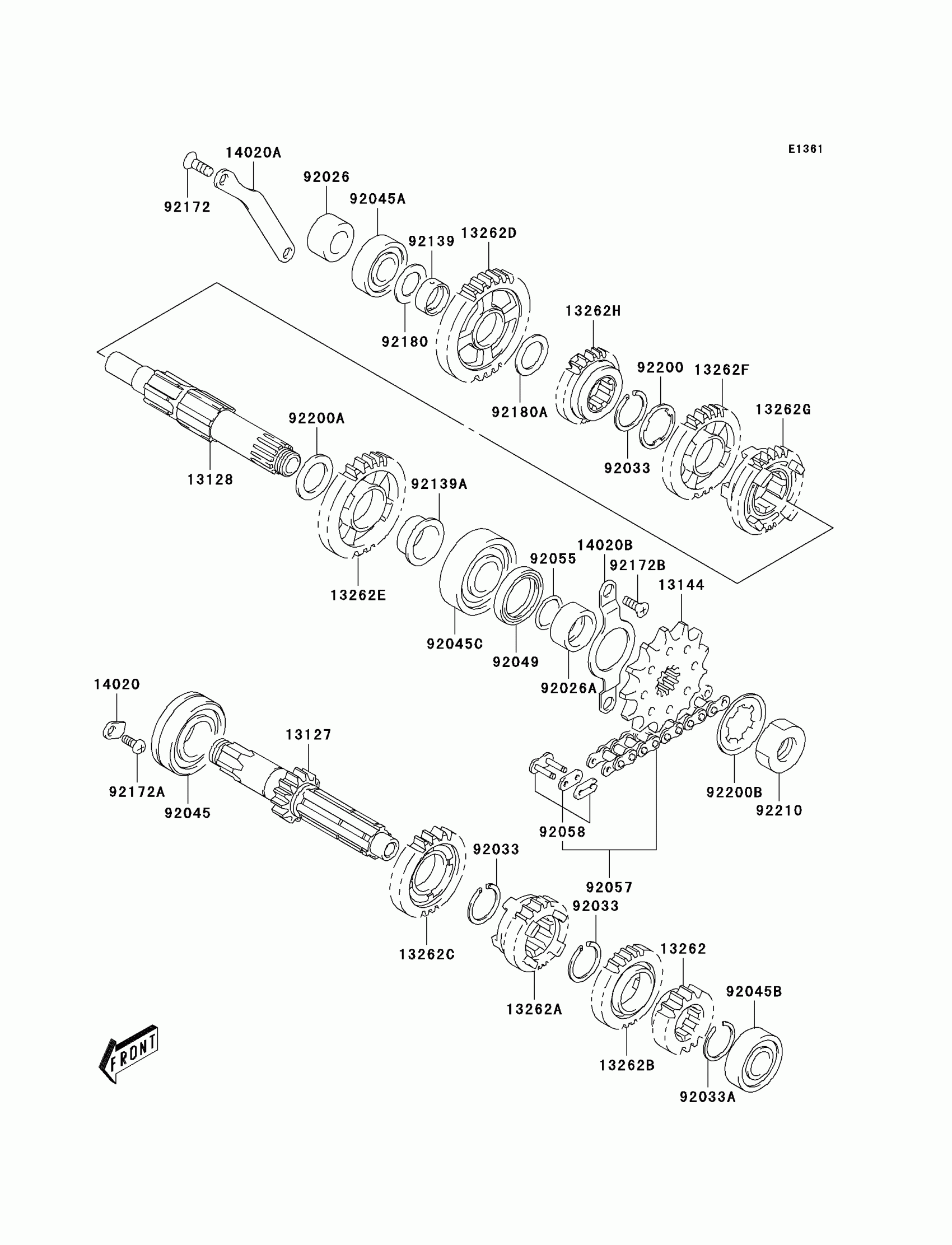

Kawasaki KLX400R (Canada Only) Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-S008

$188.95

13128

SHAFT-TRANSMISSION OUTPUT

13128-S010

Unavailable

13144

SPROCKET-OUTPUT,14T

13144-S009

$31.10

13262

GEAR,INPUT 2ND,15T

13262-S024

$86.86

13262A

GEAR,INPUT 3RD,16T

13262-S025

$105.13

13262B

GEAR,INPUT 4TH,22T

13262-S026

$86.69

13262C

GEAR,INPUT 5TH,22T

13262-S027

$87.42

13262D

GEAR,OUTPUT LOW,32T

13262-S028

$93.69

13262E

GEAR,OUTPUT 2ND,26T

13262-S029

$93.69

13262F

GEAR,OUTPUT 3RD,22T

13262-S030

$97.69

13262G

GEAR,OUTPUT 4TH,24T

13262-S031

$105.66

13262H

GEAR,OUTPUT 5TH,19T

13262-S032

$93.60

14020

RETAINER

14020-S008

$2.76

14020A

RETAINER,KICK

14020-S011

$9.68

14020B

RETAINER,DRIVE SHAFT

14020-S012

$8.29

92026

SPACER,17X30.5X16.3

92026-S124

$5.34

92026A

SPACER

92026-S125

$25.71

92033

RING-SNAP

92033-S049

$2.76

92033A

RING-SNAP

92033-S050

$3.81

92045

BEARING-BALL,25X52X15

92045-S018

$26.78

92045A

BEARING-BALL,17X40X12

92045-S035

$17.90

92045B

BEARING-BALL

92045-S051

$35.78

92045C

BEARING-BALL

92045-S057

$60.66

92049

SEAL-OIL,30X40X6

92049-S019

$10.10

92055

RING-O,D=2.5

92055-S034

$2.17

92057

CHAIN,DRIVE(RK520KZOX112L)

92057-S013

Unavailable

92058

JOINT-CHAIN

92058-S004

$16.20

92139

BUSHING

92139-S032

$17.81

92139A

BUSHING

92139-S033

$36.18

92172

SCREW

92172-S012

$1.64

92172A

SCREW

92172-S170

$2.08

92172B

SCREW,RETAINER

92172-S171

$2.08

92180

SHIM,17X30X1.0

92180-S014

$2.81

92180A

SHIM,20X30X1.0

92180-S015

$2.53

92200

WASHER

92200-S145

$2.90

92200A

WASHER,22X34X1.0

92200-S187

$2.97

92200B

WASHER

92200-S188

$1.28

92210

NUT

92210-S126

$5.24
