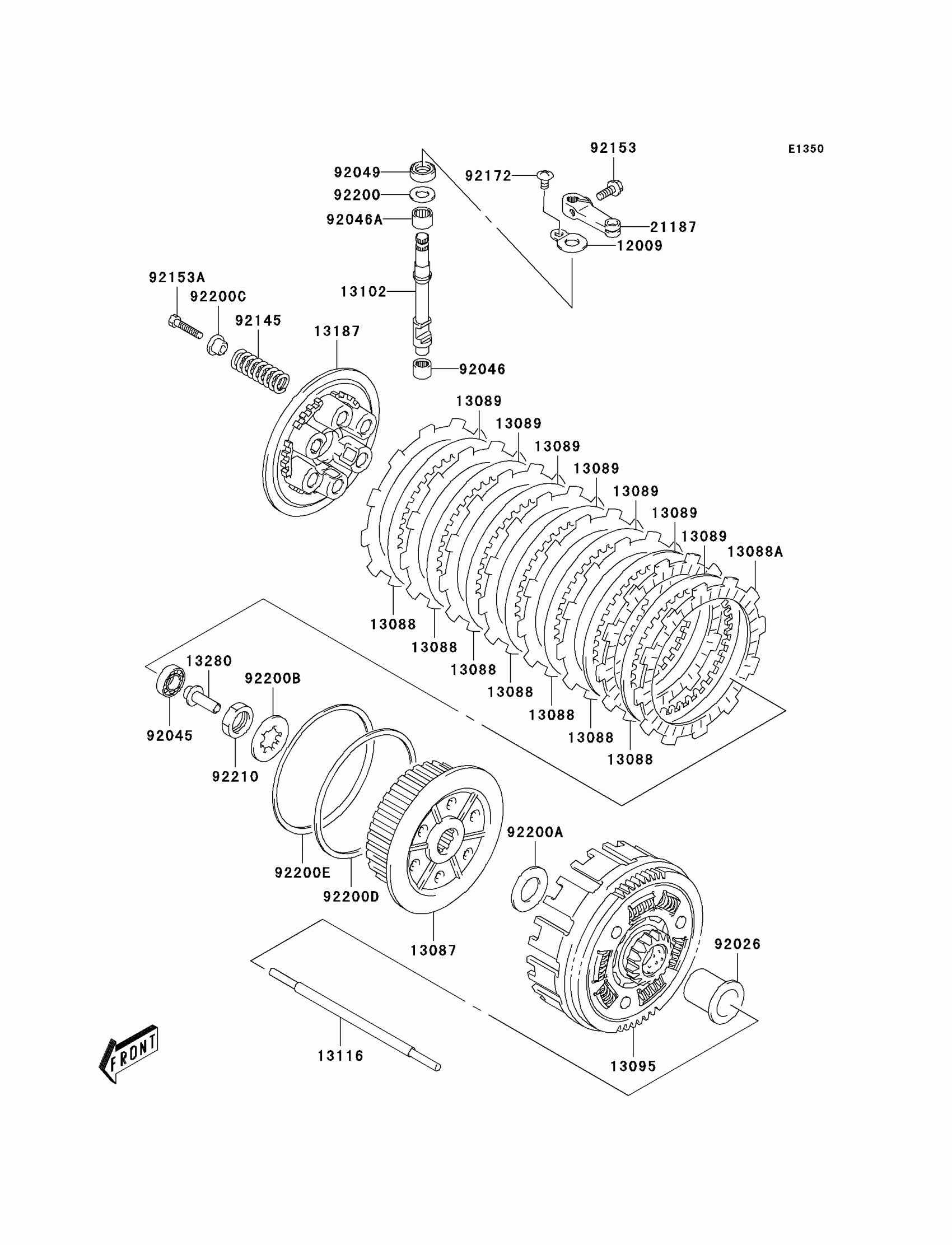

Find the part on the Clutch diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400R (Canada Only) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12009

RETAINER-VALVE SPRING

12009-S003

1
Out of stock

13087

HUB-CLUTCH

13087-S005

1
Out of stock

13088

PLATE-FRICTION,NO.1

13088-S003

1
Out of stock

13088A

PLATE-FRICTION,NO.2

13088-S004

1
Out of stock

13089

PLATE-CLUTCH

13089-S003

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-S008

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-S003

1
Out of stock

13116

ROD-PUSH

13116-S004

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-S004

1
Out of stock

13280

HOLDER,CLUTCH PUSH

13280-S025

1
Out of stock

21187

ARM-ASSY,CLUTCH RELEASE

21187-S004

1
Out of stock

92026

SPACER

92026-S094

1
Out of stock

92045

BEARING-BALL,12X28X8

92045-S004

1
Out of stock

92046

BEARING-NEEDLE,CAM SHAFT,LOW

92046-S014

1
Out of stock

92046A

BEARING-NEEDLE,CAM SHAFT,UPP

92046-S015

1
Out of stock

92049

SEAL-OIL,10X20X6

92049-S018

1
Out of stock

92145

SPRING,CLUTCH

92145-S100

1
Out of stock

92153

BOLT

92153-S001

1
Out of stock

92153A

BOLT

92153-S082

1
Out of stock

92172

SCREW

92172-S092

1
Out of stock

92200

WASHER,10X20X1.0

92200-S061

1
Out of stock

92200A

WASHER,CLUTCH

92200-S131

1
Out of stock

92200B

WASHER,CLUTCH

92200-S144

1
Out of stock

92200C

WASHER,CLUTCH SPRING

92200-S153

1
Out of stock

92200D

WASHER

92200-S185

1
Out of stock

92200E

WASHER

92200-S186

1
Out of stock

92210

NUT,CLUTCH

92210-S103

1
Out of stock
