2004 Kawasaki KLX400R (Canada Only) Side Covers Diagram

← All diagrams

Find the part on the Side Covers diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

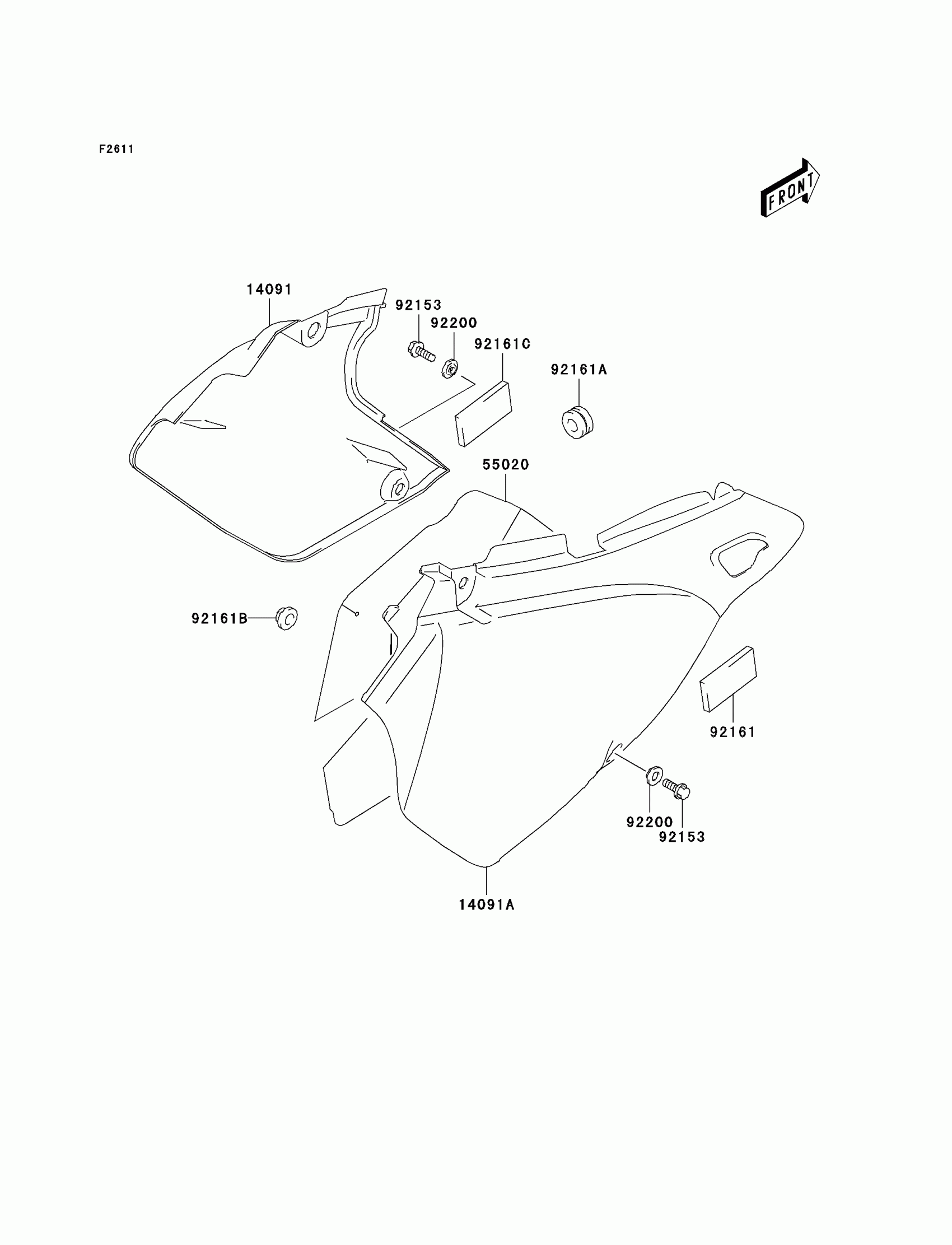

2004 Kawasaki KLX400R (Canada Only) Side Covers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FRAME,LH,S.WHITE

14091-S107-533

1
Out of stock

14091A

COVER,FRAME,RH,S.WHITE

14091-S111-533

1
Out of stock

55020

1

$62.22

In stock

92153

BOLT

92153-S001

1
Out of stock

92161

DAMPER,FRAME COVER

92161-S122

1

$8.80

In stock

92161A

1

$5.39

In stock

92161B

DAMPER,MUFFLER

92161-S136

1

$4.54

In stock

92161C

1

$7.61

In stock

92200

WASHER

92200-S192

1
Out of stock
