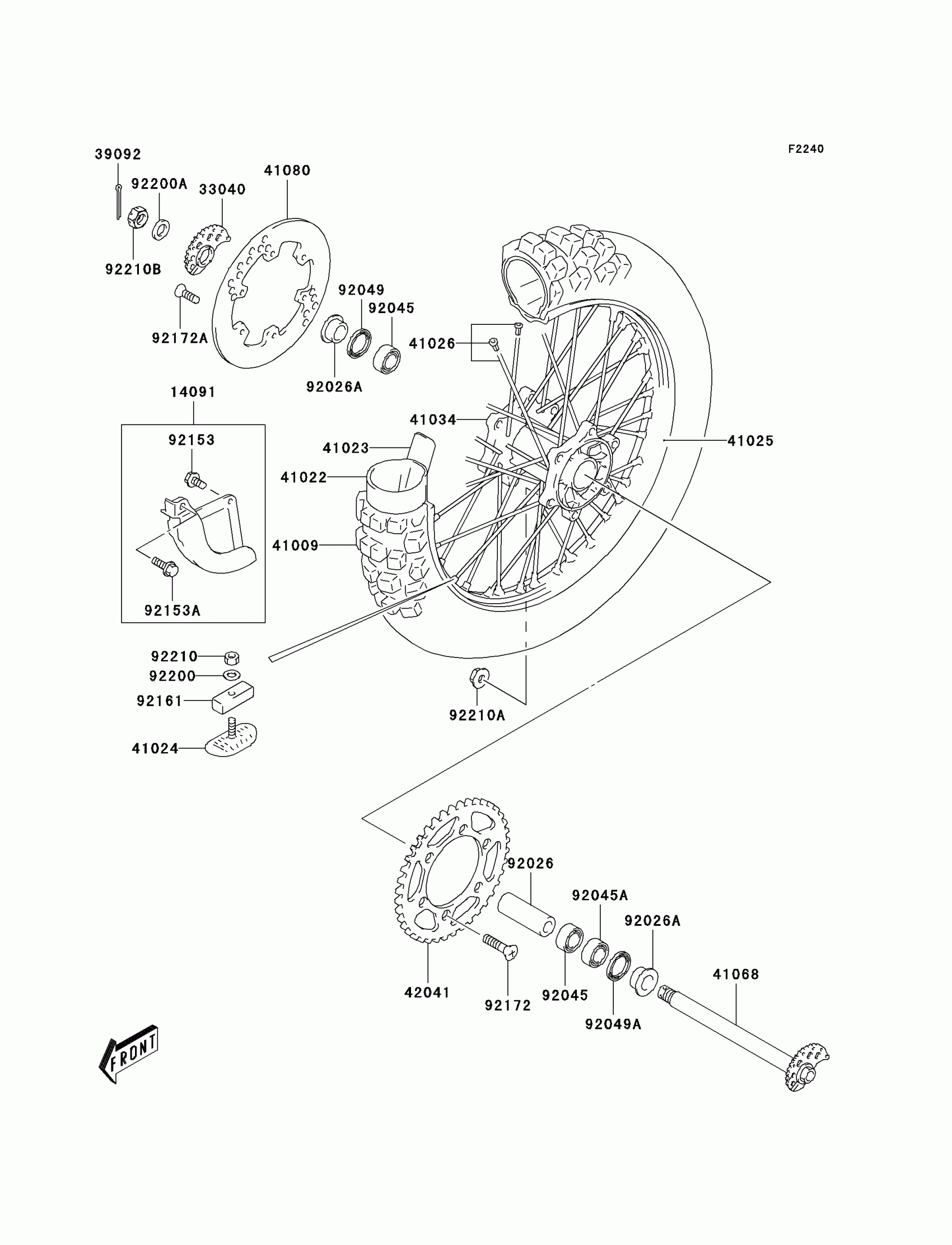

Kawasaki KLX400R (Canada Only) Rear Hub Diagram

#

Description
Price

14091

COVER,DISC

14091-S100

$30.43

33040

ADJUSTER-CHAIN

33040-S004

$24.57

39092

PIN-HAIR,REAR AXLE

39092-S008

Unavailable

41009

TIRE,120/90-18 65P(D)

41009-S018

Unavailable

41022

TUBE-TIRE

41022-S009

$56.21

41023

BAND-RIM

41023-S009

$7.06

41024

STOPPER-RIM

41024-S003

$43.40

41025

RIM,2.15X18

41025-S014

$353.55

41026

SPOKE-ASSY

41026-S009

$126.30

41034

DRUM-ASSY

41034-S008

$349.32

41068

AXLE,RR

41068-S013

$118.32

41080

DISC,RR

41080-S008

$234.89

42041

SPROCKET-HUB,47T

42041-S009

$115.63

92026

SPACER

92026-S133

$27.17

92026A

SPACER

92026-S134

$32.97

92045

BEARING-BALL

92045-S059

$29.42

92045A

BEARING-BALL

92045-S060

$26.69

92049

SEAL-OIL,29X42X6

92049-S009

$11.21

92049A

SEAL-OIL,29X47X5

92049-S060

$12.86

92153

BOLT

92153-S011

$1.92

92153A

BOLT

92153-S013

$1.92

92161

DAMPER

92161-S144

$7.82

92172

SCREW,SPROCKET

92172-S111

$3.01

92172A

SCREW,6X17.5

92172-S210

$3.92

92200

WASHER

92200-S028

$1.92

92200A

WASHER

92200-S201

$6.02

92210

NUT

92210-S051

$1.92

92210A

NUT

92210-S094

$4.29

92210B

NUT

92210-S134

Unavailable
