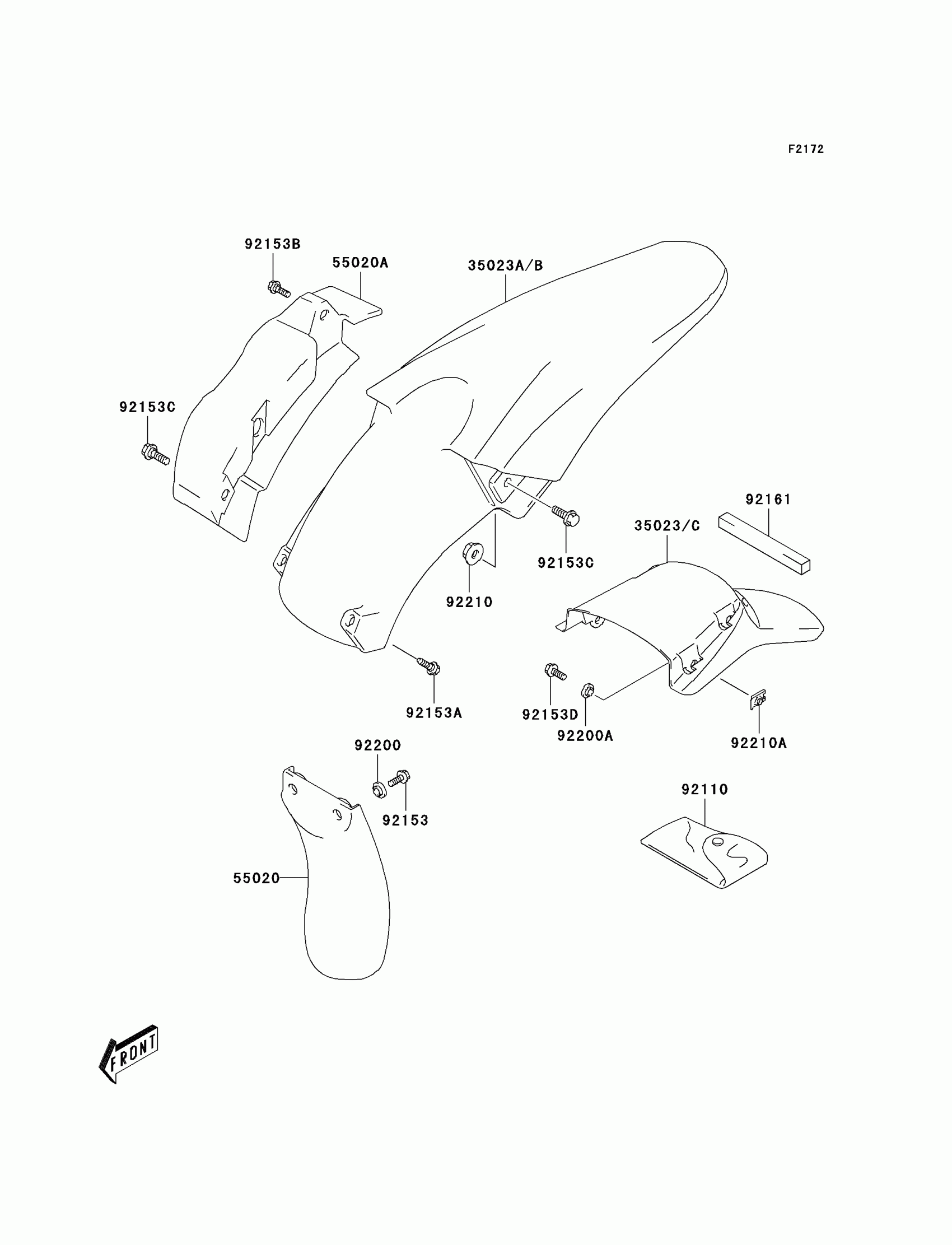

Kawasaki KLX400R (Canada Only) Rear Fender(s) Diagram

Description

Price

55020

GUARD,REAR FENDER,FR

55020-S005

$22.76

55020A

GUARD,FENDER

55020-S029

$35.50

92110

TOOL-WRENCH

92110-S004

$15.39

92153

BOLT

92153-S001

Unavailable

92153A

BOLT,6X16

92153-S044

$3.45

92153B

BOLT

92153-S161

Unavailable

92153C

BOLT

92153-S196

$5.24

92153D

BOLT

92153-S363

$1.92

92161

DAMPER

92161-S143

$6.91

92200

WASHER

92200-S074

$2.34

92200A

WASHER

92200-S194

$2.40

92210

NUT

92210-S054

$3.48

92210A

NUT

92210-S138

$2.15

35023

FENDER-REAR,INNER

35023-S014

$38.02

35023A

FENDER-REAR,L.GREEN

35023-S015-535

$101.99

35023B

FENDER-REAR,L.GREEN

35023-S017-535

Unavailable

35023C

FENDER-REAR,INNER

35023-S018

Unavailable
