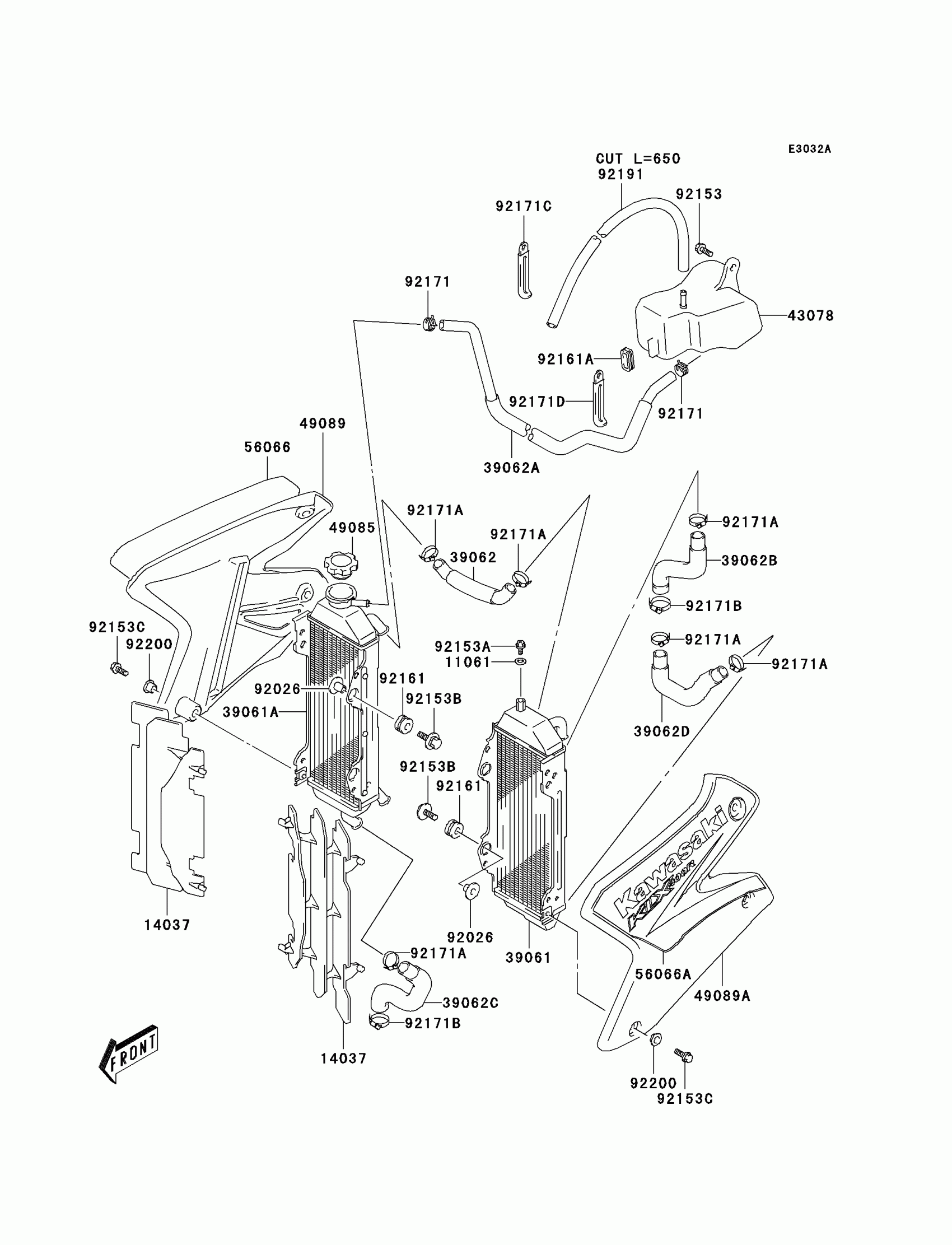

Kawasaki KLX400R (Canada Only) Radiator(KLX400-B2) Diagram

#

Description
Price

11061

GASKET,6.4X11.5X0.8

11061-S002

$3.76

14037

SCREEN

14037-S001

$20.81

39061

RADIATOR-ASSY,LH

39061-S006

$496.82

39061A

RADIATOR-ASSY,RH

39061-S007

$496.82

39062

HOSE-COOLING,JOINT

39062-S022

Unavailable

39062A

HOSE-COOLING,RESERVOIR TANK

39062-S023

Unavailable

39062B

HOSE-COOLING,RADIATOR INLET

39062-S024

$31.43

39062C

HOSE-COOLING,RADIATOR OUTLET

39062-S025

Unavailable

39062D

HOSE-COOLING,RADIATOR LWR

39062-S026

Unavailable

43078

RESERVOIR

43078-S006

$54.16

49085

CAP-ASSY-PRESSURE

49085-S004

$46.07

49089

SHROUD-ENGINE,RH,L.GREEN

49089-S003-535

$71.64

49089A

SHROUD-ENGINE,LH,L.GREEN

49089-S004-535

$71.64

56066

PATTERN,RH,WHT/BLK/GLD/GRN/RED

56066-S024-570

$133.28

56066A

PATTERN,LH,WHT/BLK/GLD/GRN/RED

56066-S025-570

$150.95

92026

SPACER

92026-S123

$5.27

92153

BOLT

92153-S011

$1.64

92153A

BOLT,AIR VENT

92153-S055

$5.10

92153B

BOLT,6X25

92153-S105

$3.83

92153C

BOLT

92153-S144

Unavailable

92161

DAMPER

92161-S114

$3.78

92161A

DAMPER,RESERVOIR TANK

92161-S115

$4.17

92171

CLAMP

92171-S002

Unavailable

92171A

CLAMP

92171-S008

$8.56

92171B

CLAMP,RADIATOR HOSE

92171-S088

$9.35

92171C

CLAMP,RESERVOIR HOSE

92171-S116

$2.41

92171D

CLAMP,L=45

92171-S132

$1.88

92191

TUBE,M.R.ORANGE

92191-S088-500

$22.22

92200

WASHER

92200-S078

$1.87
