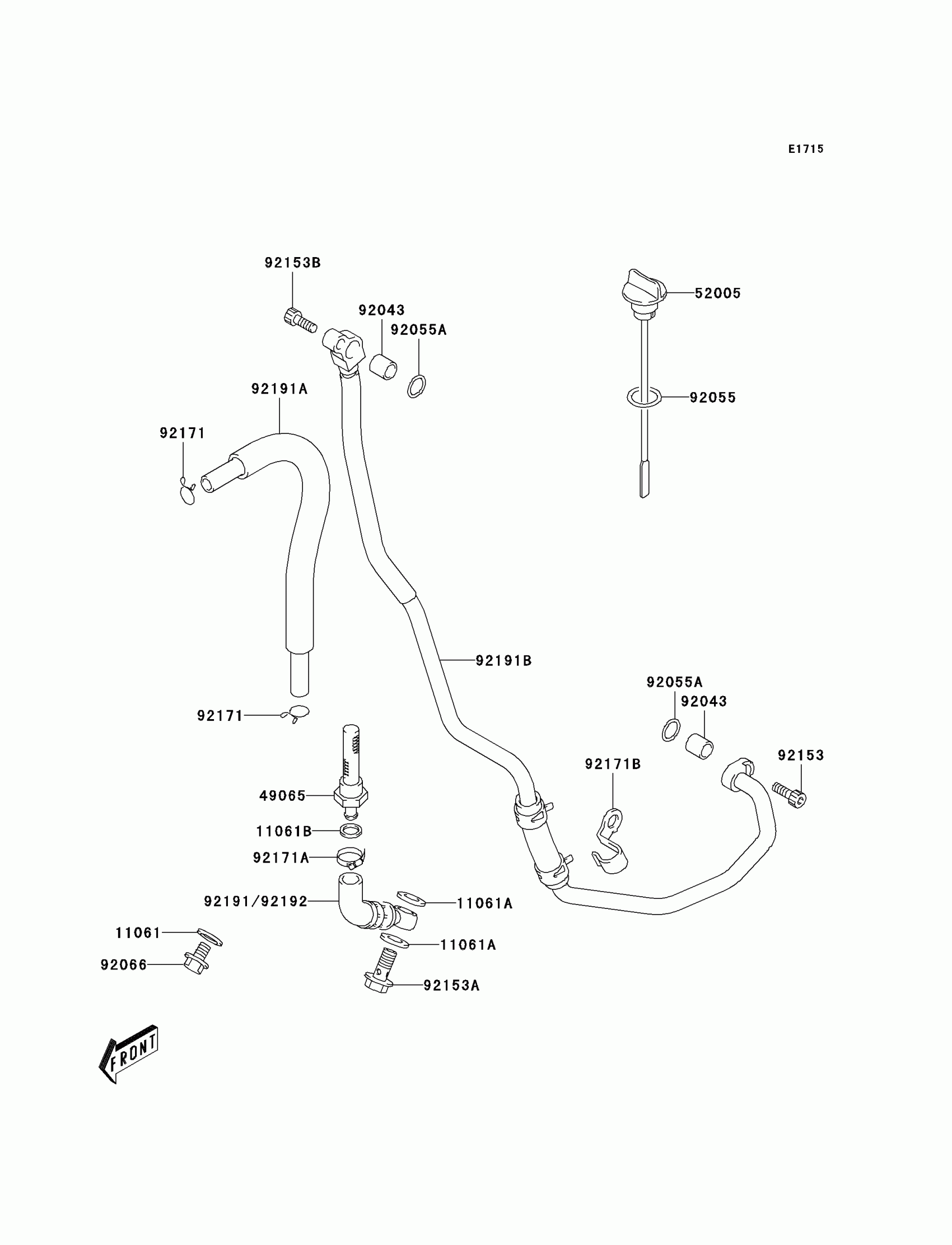

Kawasaki KLX400R (Canada Only) Oil Hose Diagram

Description

Price

11061

GASKET,10X14X3.6

11061-S021

$2.42

11061A

GASKET,14X20X1.5

11061-S065

$2.53

11061B

GASKET,STRAINER

11061-S088

$4.29

49065

FILTER-OIL

49065-S005

$49.75

52005

GAUGE,OIL LEVEL

52005-S007

$12.67

92043

PIN,CRANKCASE

92043-S024

$2.15

92055

RING-O,D=3.1

92055-S006

$2.51

92055A

RING-O,OIL HOSE

92055-S054

$4.86

92066

PLUG,OIL DRAIN

92066-S036

$2.48

92153

BOLT

92153-S168

Unavailable

92153A

BOLT,OIL HOSE,14X27

92153-S289

$11.21

92153B

BOLT

92153-S337

$2.37

92171

CLAMP

92171-S085

$1.92

92171A

CLAMP,OIL HOSE

92171-S115

$7.08

92171B

CLAMP

92171-S121

$7.16

92191A

TUBE,OIL TANK OVER FLOW

92191-S073

$21.89

92191B

TUBE,OIL TANK,LH

92191-S085

$133.23

92192

TUBE,OIL TANK,RH

92192-S008

$66.54
