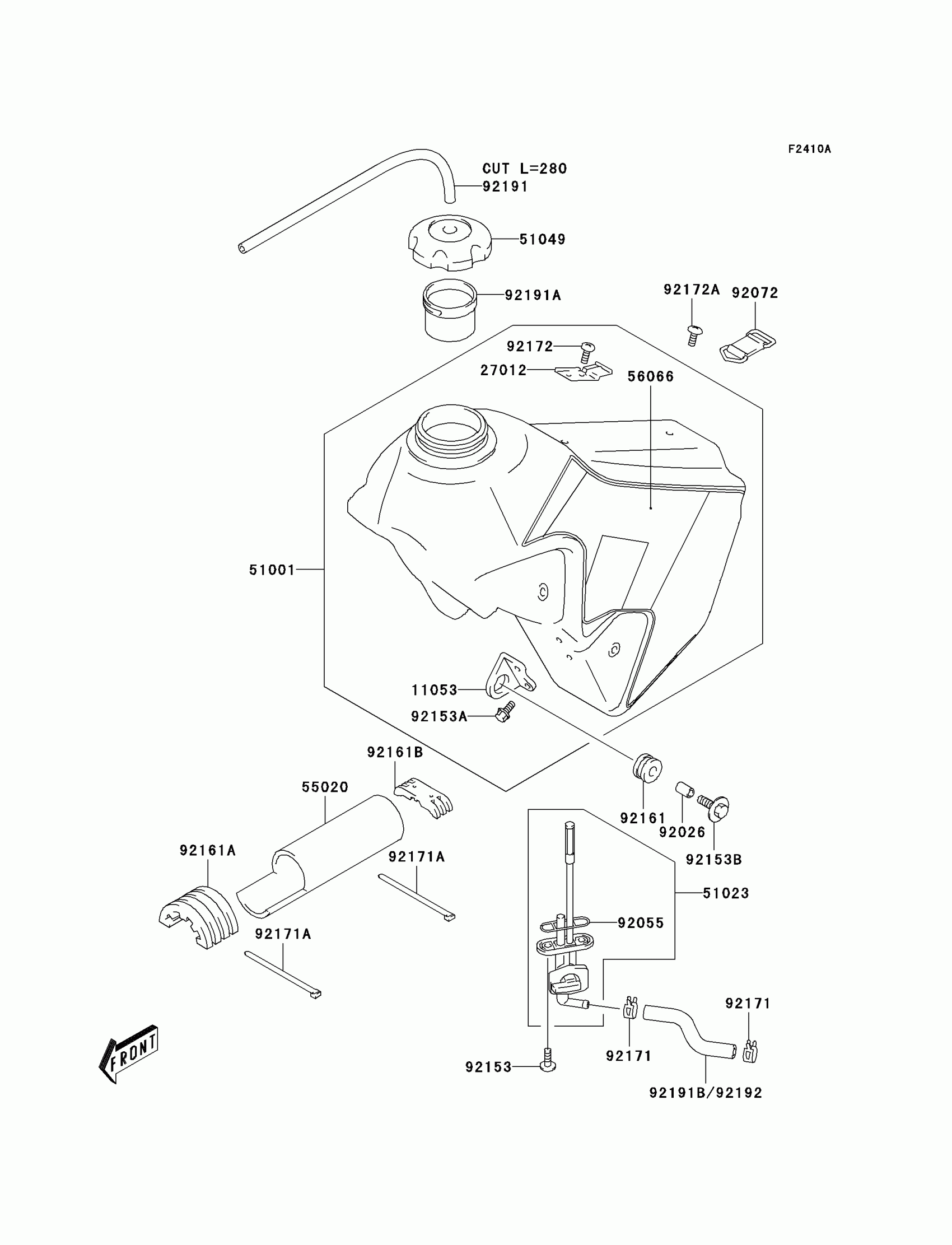

Kawasaki KLX400R (Canada Only) Fuel Tank(KLX400-B2) Diagram

Description

Price

11053

BRACKET,FUEL TANK,FR

11053-S001

$12.89

27012

HOOK

27012-S004

$14.67

51001

TANK-COMP-FUEL,BLACK

51001-S015-539

$855.85

51023

TAP-ASSY

51023-S011

$105.72

51049

CAP-TANK

51049-S004

$43.94

55020

GUARD,FUEL TANK

55020-S027

$51.91

56066

PATTERN SET,FUEL TANK,WHT/BLK/GRN

56066-S026-568

$326.79

92026

SPACER,FUEL TANK,FR

92026-S049

$2.79

92055

RING-O,TAP

92055-S090

$9.12

92072

BAND,FUEL TANK,RR

92072-S004

$15.27

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S144

Unavailable

92153B

BOLT

92153-S367

$4.20

92161

DAMPER,FUEL TANK

92161-S061

$6.47

92161A

DAMPER,FUEL TANK,UPP

92161-S131

$32.87

92161B

DAMPER

92161-S146

$17.37

92171

CLAMP

92171-S005

$3.01

92171A

CLAMP,FUEL TANK CUSHION

92171-S056

$4.92

92172

SCREW

92172-S017

$1.92

92172A

SCREW

92172-S055

$1.92

92191

TUBE,FUEL TANK BREATHER

92191-S028

$9.59

92191A

TUBE,FUEL TANK FILLER

92191-S029

$8.18

92191B

TUBE

92191-S087

$13.35

92192

TUBE

92192-S010

$13.35
