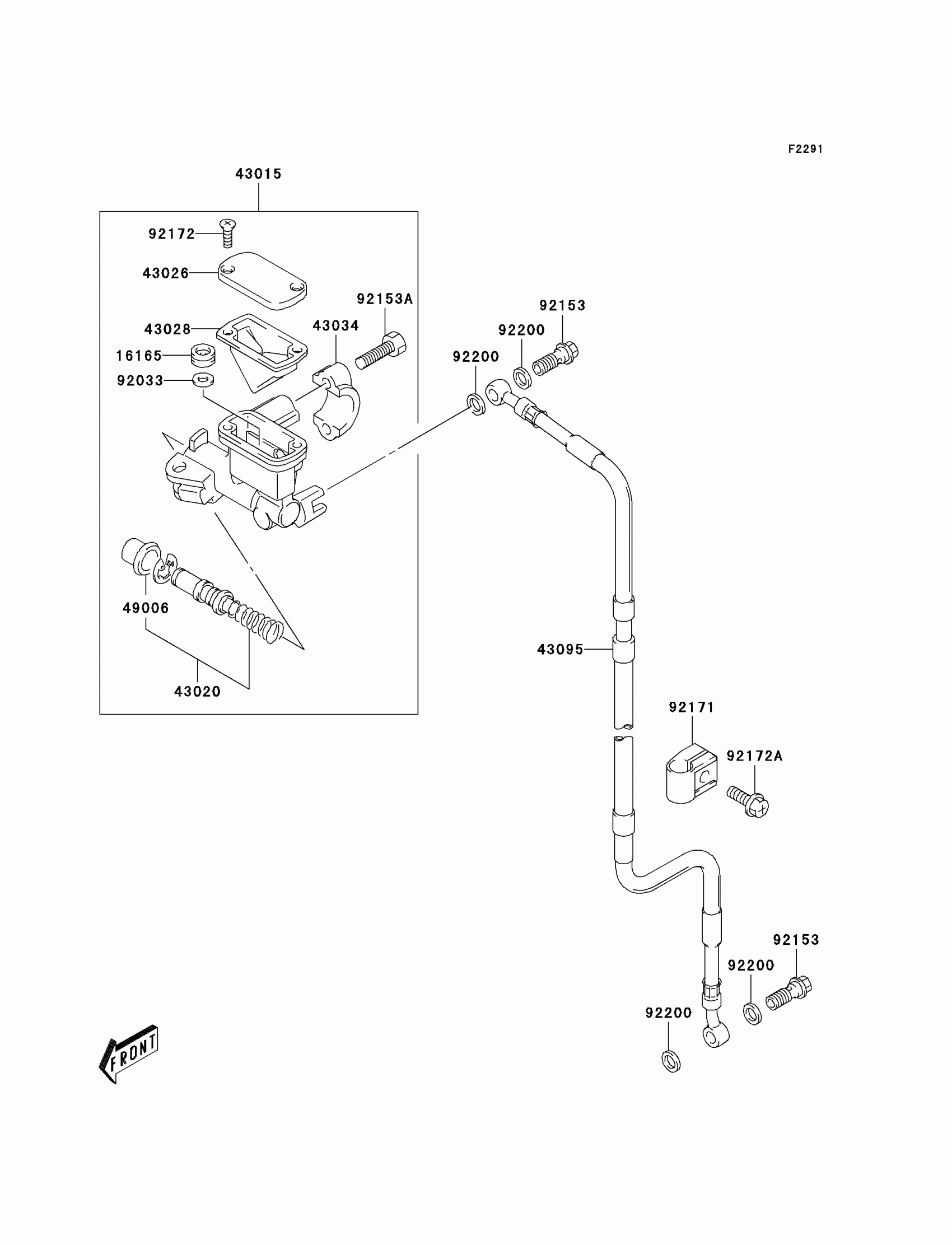

Kawasaki KLX400R (Canada Only) Front Master Cylinder Diagram

Description

Price

16165

SEPARATOR

16165-S011

$8.27

43015

CYLINDER-ASSY-MASTER

43015-S012

$241.97

43020

PISTON-COMP-BRAKE

43020-S008

$48.87

43026

CAP-BRAKE

43026-S009

$17.68

43028

DIAPHRAGM

43028-S014

$10.44

43034

HOLDER-BRAKE

43034-S003

$16.59

43095

HOSE-BRAKE

43095-S015

$163.11

49006

BOOT

49006-S034

$8.60

92033

RING-SNAP

92033-S047

$4.56

92153

BOLT

92153-S053

Unavailable

92153A

BOLT

92153-S172

$4.47

92171

CLAMP,FRONT BRAKE HOSE

92171-S057

$6.91

92172

SCREW,RESERVOIR CAP

92172-S054

$2.15

92172A

SCREW,COOLING FAN COVER

92172-S142

$1.92

92200

WASHER,10X15X1.5

92200-S014

$2.42
