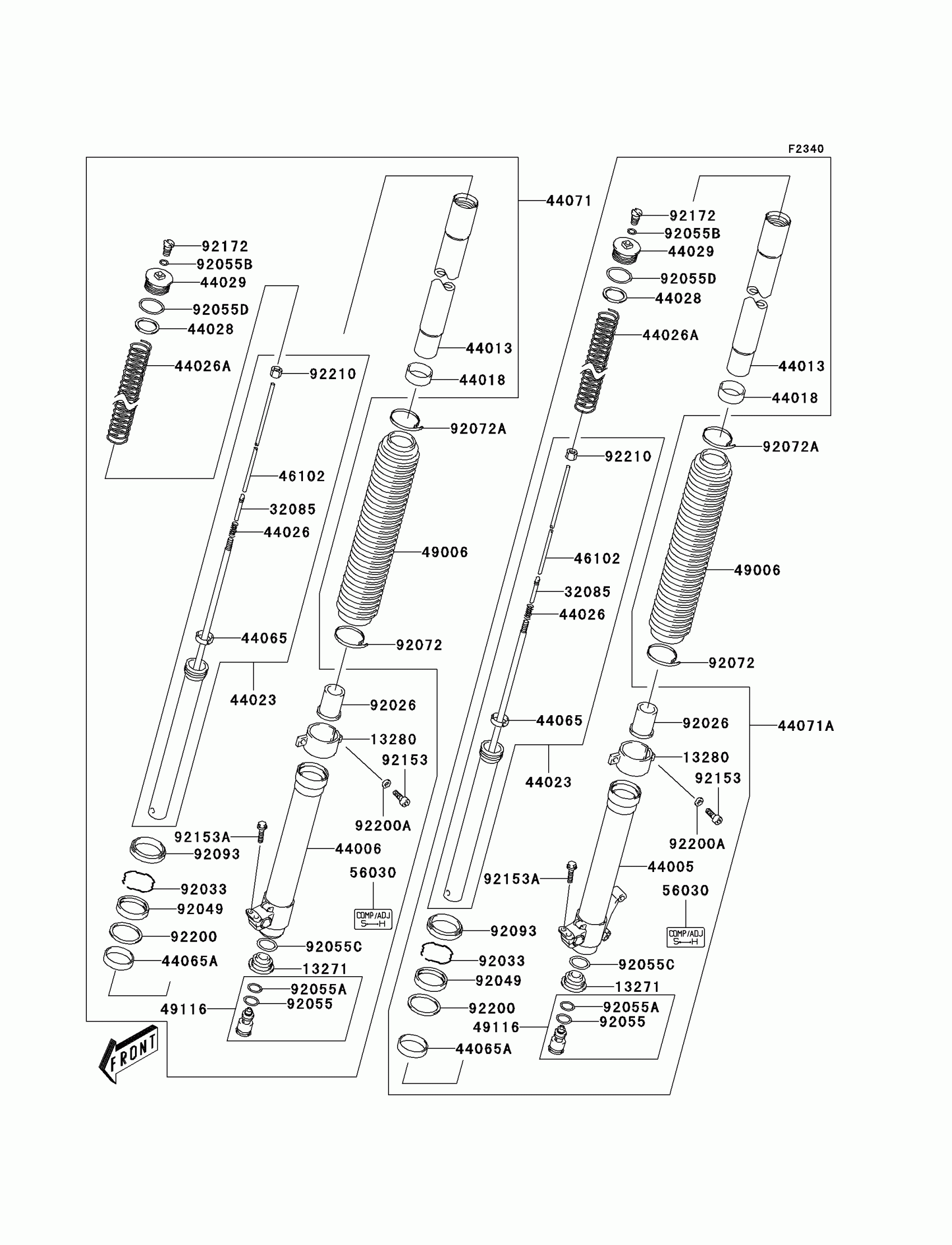

Kawasaki KLX400R (Canada Only) Front Fork Diagram

#

Description
Price

13271

PLATE

13271-S059

$64.60

13280

HOLDER,BOOT

13280-S030

$42.05

32085

STOPPER,NEEDLE

32085-S015

$20.07

44005

PIPE-LEFT FORK OUTER

44005-S009

$760.33

44006

PIPE-RIGHT FORK OUTER

44006-S009

$760.33

44013

PIPE-FORK INNER

44013-S006

$573.87

44018

PISTON-FORK

44018-S004

$34.61

44023

CYLINDER-SET-FORK

44023-S003

$509.22

44026

SPRING-FRONT FORK

44026-S009

$5.83

44026A

SPRING-FRONT FORK

44026-S011

$104.97

44028

GUIDE-FORK SPRING

44028-S003

$10.55

44029

SEAT-FORK SPRING

44029-S002

$130.32

44065

BUSHING-FRONT FORK

44065-S002

$18.85

44065A

BUSHING-FRONT FORK

44065-S003

$26.89

44071

DAMPER-ASSY,RH

44071-S009

$1,719.48

44071A

DAMPER-ASSY,LH

44071-S010

$1,719.48

46102

ROD

46102-S004

$66.54

49006

BOOT,BLACK

49006-S032-503

$94.86

49116

VALVE-ASSY

49116-S004

$223.69

56030

LABEL

56030-S012

$6.25

92026

SPACER

92026-S127

$71.27

92033

RING-SNAP

92033-S051

$9.04

92049

SEAL-OIL

92049-S058

$36.67

92055

RING-O

92055-S075

$6.17

92055A

RING-O

92055-S076

$6.17

92055B

RING-O

92055-S077

$4.69

92055C

RING-O

92055-S078

$6.61

92055D

RING-O

92055-S079

$7.23

92072

BAND,BOOT

92072-S008

$18.21

92072A

BAND,BOOT

92072-S010

$20.03

92093

SEAL

92093-S044

$35.69

92153

BOLT

92153-S350

$3.12

92153A

BOLT,8X35

92153-S351

$5.03

92172

SCREW,PLUG

92172-S198

$13.80

92200

WASHER,SEAL

92200-S196

$9.03

92200A

WASHER

92200-S197

$2.03

92210

NUT

92210-S124

$15.77
