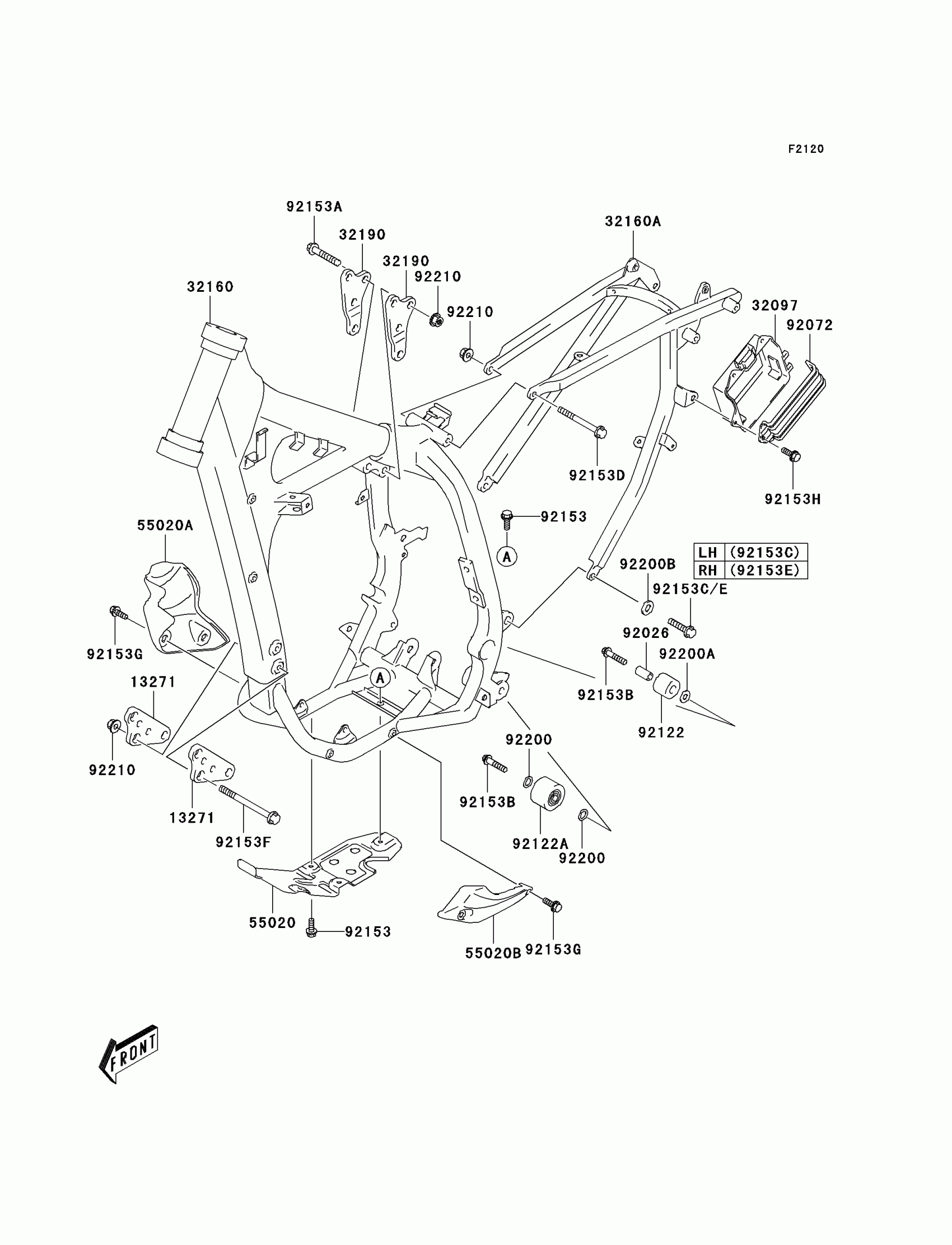

Kawasaki KLX400R (Canada Only) Frame Diagram
#
Description
Price
13271
PLATE,ENGINE MOUNT
13271-S062
$35.50
32097
CASE-BATTERY
32097-S002
$59.01
32160
FRAME-COMP,FR,M.G.GRAY
32160-S016-548
Unavailable
32160A
FRAME-COMP,RR
32160-S017
$718.89
32190
BRACKET-ENGINE
32190-S008
$30.37
55020
GUARD,ENGINE
55020-S024
$99.01
55020A
GUARD,WATER PUMP
55020-S025
$26.79
55020B
GUARD,ENGINE COVER
55020-S026
$33.57
92026
SPACER
92026-S053
$5.03
92072
BAND,BATTERY
92072-S007
$24.70
92122
ROLLER,CHAIN CONTROL,UPP
92122-S006
$25.57
92122A
ROLLER,CHAIN
92122-S010
$59.25
92153
BOLT
92153-S011
$1.92
92153A
BOLT
92153-S176
$4.20
92153B
BOLT,CHAIN ROLLER
92153-S264
$4.60
92153C
BOLT,8X16
92153-S329
$3.25
92153D
BOLT
92153-S338
$3.42
92153E
BOLT
92153-S339
$3.23
92153F
BOLT
92153-S340
$8.49
92153G
BOLT
92153-S341
$3.58
92153H
BOLT,BATTERY HOLDER
92153-S342
$2.53
92200
WASHER,OIL PUMP DRIVEN
92200-S111
$2.42
92200A
WASHER
92200-S125
$2.54
92200B
WASHER,8.5X18X2.0
92200-S191
$2.65
92210
NUT
92210-S094
$4.29
