2004 Kawasaki KLX400R (Canada Only) Engine Cover Diagram

← All diagrams

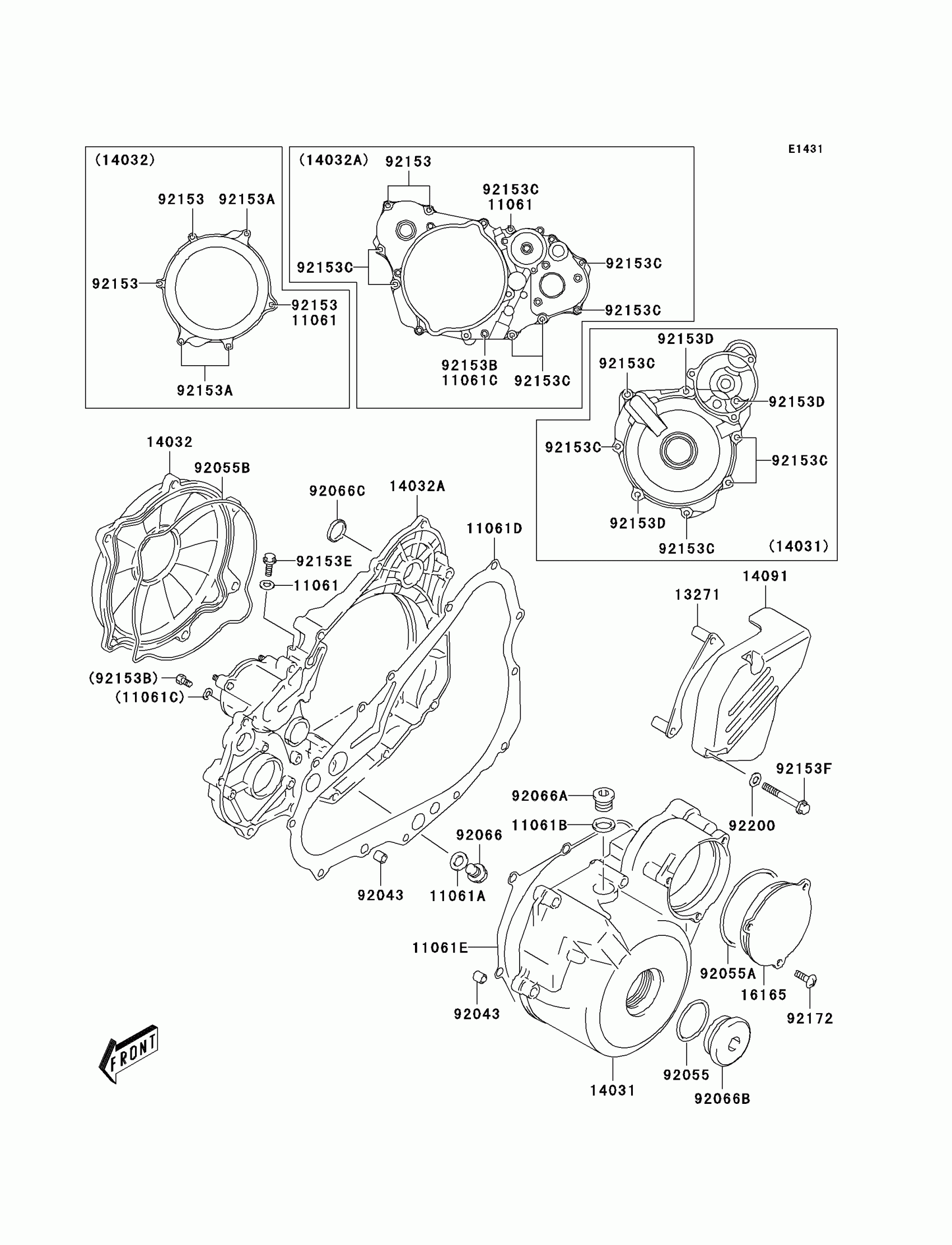

Find the part on the Engine Cover diagram for your 2004 Kawasaki KLX400R (Canada Only), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KLX400R (Canada Only) Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,5.8X13X1.2

11061-S001

1
Out of stock

11061A

GASKET,12X16X2

11061-S005

1
Out of stock

11061B

GASKET,13.8X18.8X0.4

11061-S006

1
Out of stock

11061C

GASKET

11061-S045

1
Out of stock

11061D

GASKET,CLUTCH COVER

11061-S083

1
Out of stock

11061E

GASKET,MAGNETO COVER

11061-S085

1
Out of stock

13271

PLATE

13271-S068

1
Out of stock

14031

COVER-GENERATOR

14031-S008

1
Out of stock

14032

COVER-CLUTCH,OUTER

14032-S008

1
Out of stock

14032A

COVER-CLUTCH,INNER

14032-S010

1
Out of stock

14091

COVER,ENGINE SPROCKET

14091-S103

1
Out of stock

16165

SEPARATOR,STARTER IDLE GEAR

16165-S010

1
Out of stock

92043

PIN

92043-S001

1
Out of stock

92055

RING-O,32.7X3.1

92055-S056

1
Out of stock

92055A

RING-O,69.6X2.6

92055-S057

1
Out of stock

92055B

RING-O,CLUTCH COVER OUTER

92055-S080

1
Out of stock

92066

PLUG

92066-S001

1
Out of stock

92066A

PLUG

92066-S003

1
Out of stock

92066B

PLUG,CRANKSHAFT HOLE,W.SILVER

92066-S033-515

1
Out of stock

92066C

PLUG

92066-S038

1
Out of stock

92153

BOLT

92153-S002

1
Out of stock

92153A

BOLT

92153-S006

1
Out of stock

92153B

BOLT

92153-S010

1
Out of stock

92153C

BOLT

92153-S062

1
Out of stock

92153D

BOLT

92153-S128

1
Out of stock

92153E

BOLT

92153-S144

1
Out of stock

92153F

BOLT

92153-S335

1
Out of stock

92172

SCREW

92172-S055

1
Out of stock

92200

WASHER,SPROCKET COVER

92200-S132

1
Out of stock
