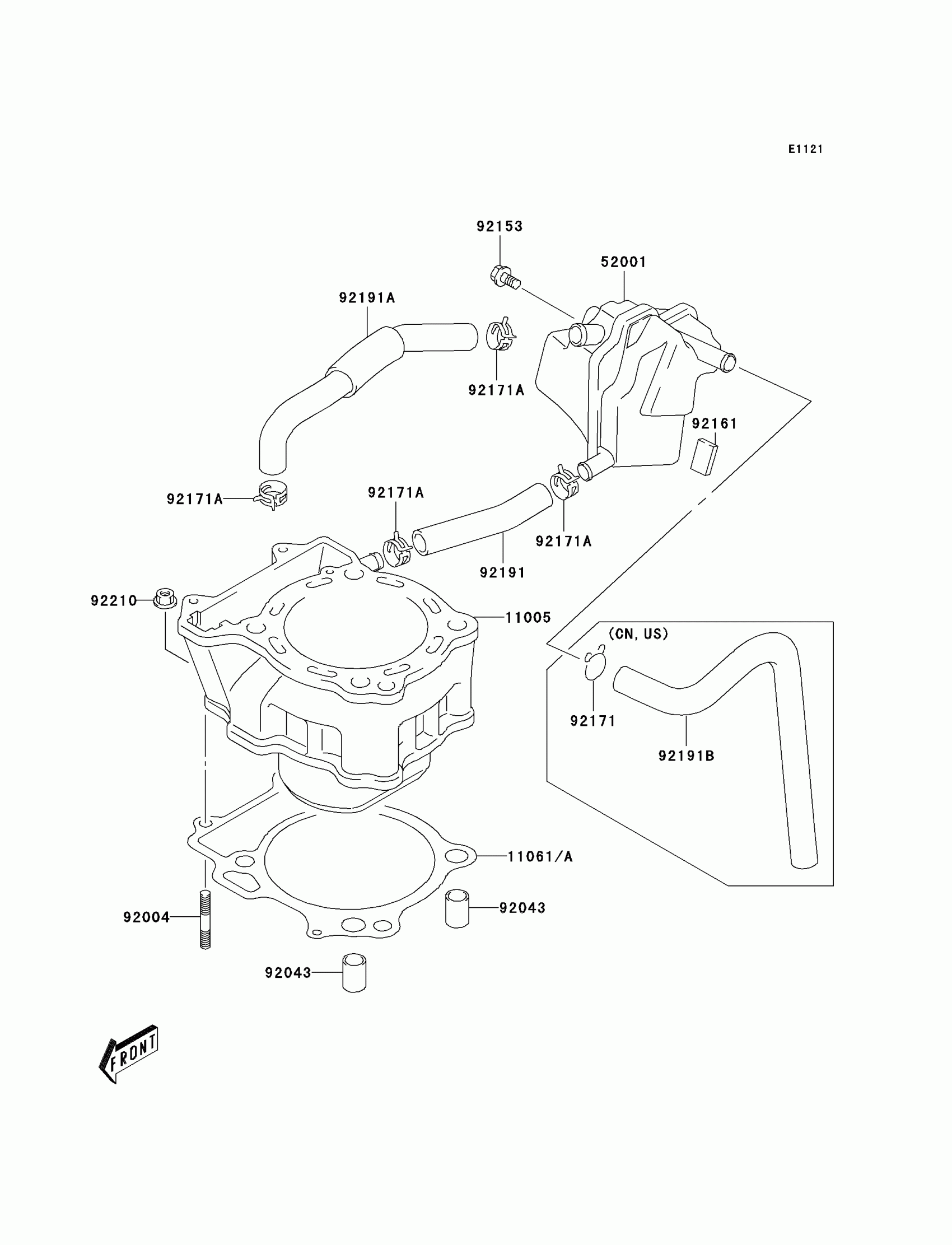

Kawasaki KLX400R (Canada Only) Cylinder Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-S007

$724.74

52001

TANK-OIL

52001-S008

$46.78

92004

STUD

92004-S001

$2.20

92043

PIN

92043-S003

$1.87

92153

BOLT

92153-S143

$1.42

92161

DAMPER,170X95X3.0

92161-S014

$4.56

92171A

CLAMP,BREATHER HOSE

92171-S087

$2.81

92191

TUBE,BREATHER

92191-S067

$11.88

92191A

TUBE,BREATHER

92191-S068

$23.56

92210

NUT

92210-S004

$1.42

11061

GASKET,CYLINDER

11061-S070

$25.71

11061A

GASKET

11061-S091

$15.03

92171

CLAMP

92171-S048

$2.25

92191B

TUBE,BREATHER

92191-S081

$25.71
